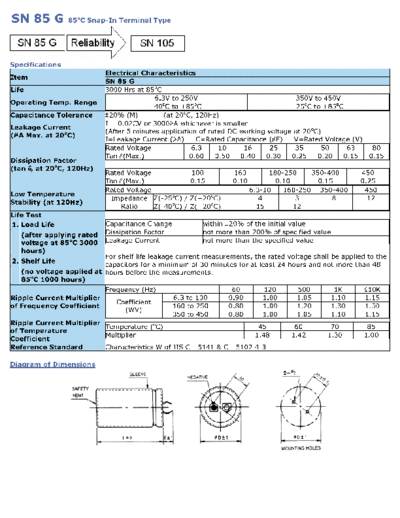

Image preview - the first page of the document
![Wincap [snap-in] SN85G Series](/pics/5c2e0d266e865.gif)
>> Download Wincap [snap-in] SN85G Series documenatation <<
Text preview - extract from the document
SN 85 G 85oC Snap-In Terminal Type
Specifications
Electrical Characteristics
Item
SN 85 G
Life 3000 Hrs at 85oC
6.3V to 250V 350V to 450V
Operating Temp. Range
-40oC to +85oC -25oC to +85oC
Capacitance Tolerance 20% (M) (at 20oC, 120Hz)
I = 0.02CV or 3000 A whichever is smaller
Leakage Current
(After 5 minutes application of rated DC working voltage at 20 oC)
( A Max. at 20oC)
I=Leakage Current ( A) C=Rated Capacitance ( F) V=Rated Voltage (V)
Rated Voltage 6.3 10 16 25 35 50 63 80
Tan (Max.) 0.60 0.50 0.40 0.30 0.25 0.20 0.15 0.15
Dissipation Factor
(tan , at 20oC, 120Hz)
Rated Voltage 100 160 180-250 350-400 450
Tan (Max.) 0.15 0.10 0.10 0.15 0.25
Rated Voltage 6.3-10 160-250 350-400 450
Low Temperature
Impedance Z(-25oC) / Z(+20oC) 4 3 8 12
Stability (at 120Hz)
Ratio Z(-40oC) / Z(+20oC) 15 12 - -
Life Test
1. Load Life Capacitance Change within 20% of the initial value
(after applying rated Dissipation Factor not more than 200% of specified value
voltage at 85oC 3000 Leakage Current not more than the specified value
hours)
For shelf life leakage current measurements, the rated voltage shall be applied to the
2. Shelf Life
capacitors for a minimum of 30 minutes for at least 24 hours and not more than 48
(no voltage applied at hours before the measurements.
85oC 1000 hours)
Frequency (Hz) 60 120 500 1K 10K
Ripple Current Multiplier 6.3 to 100 0.90 1.00 1.05 1.10 1.15
Coefficient
of Frequency Coefficient 160 to 250 0.80 1.00 1.20 1.30 1.50
(WV)
350 to 450 0.80 1.00 1.05 1.10 1.15
Ripple Current Multiplier
Temperature (oC) 45 60 70 85
of Temperature
Multiplier 1.48 1.42 1.30 1.00
Coefficient
Reference Standard Characteristics W of JIS C - 5141 & C - 5102 4-3
Diagram of Dimensions
Dimension & Permissible Ripple Current
Dimension: DxL(mm) Ripple current (A/rms) at 85oC, 120Hz
W.V. 6.3 10
D 22 25 30 35 22 25 30 35
DxL A DxL A DxL A DxL A DxL A DxL A DxL A DxL A
12000 22x25 2.40
15000 22x25 2.44 22x30 2.75 25x25 2.75
18000 22x30 2.60 25x25 2.62 22x35 3.15 25x25 3.05
22000 22x30 3.06 25x25 3.07 22x40 3.55 25x30 3.50 30x25 3.55
27000 22x35 3.49 25x30 3.52 30x25 3.57 22x45 4.05 25x35 4.00 30x30 4.05
33000 22x40 3.97 25x35 4.02 30x30 4.05 35x25 4.10 22x50 4.60 25x40 4.55 30x30 4.50 35x25 4.50
39000 22x45 4.56 25x40 4.50 30x30 4.46 35x25 4.51 25x45 5.10 30x35 5.05 35x30 5.05
47000 25x45 5.09 30x35 5.06 35x30 5.03 25x50 5.75 30x40 5.70 35x30 5.65
56000 25x50 5.71 30x40 5.70 35x30 5.75 30x45 6.45 35x35 6.40
68000 30x45 6.48 35x35 6.42 30x50 7.05 35x40 7.10
82000 30x50 7.32 35x40 7.29 35x50 7.50
100000 35x45 8.31
120000 35x50 8.60
W.V. 16 25
D 22 25 30 35 22 25 30 35
DxL A DxL A DxL A DxL A DxL A DxL A DxL A DxL A
5600 22x25 2.20
6800 22x30 2.40 25x25 2.45
8200 22x25 2.60 22x35 2.70 25x25 2.75
10000 22x30 2.70 25x25 2.75 22x40 3.10 25x30 3.15 30x25 3.20
12000 22x30 2.90 25x25 2.95 22x45 3.50 25x35 3.45 30x30 3.50 35x25 3.55
15000 22x35 3.30 25x30 3.45 30x25 3.50 22x50 4.00 25x40 3.95 30x35 4.00 35x30 4.05
18000 22x40 3.70 25x35 3.75 30x30 3.80 25x45 4.45 30x35 4.45 35x30 4.60
22000 22x50 4.35 25x40 4.30 30x30 4.25 35x25 4.20 30x40 5.20 35x35 5.15
27000 25x45 4.70 30x35 4.65 35x30 4.65 30x45 5.95 35x40 5.90
33000 30x40 5.35 35x30 5.40 30x50 6.70 35x45 6.75
39000 30x45 6.00 35x35 5.95 35x50 7.55
47000 30x50 6.80 35x40 6.75
56000 35x45 7.60
68000 35x50 8.00
W.V. 35 50
D 22 25 30 35 22 25 30 35
DxL A DxL A DxL A DxL A DxL A DxL A DxL A DxL A
2200 22x25 1.90
2700 22x30 2.10 25x25 2.20
3300 22x30 2.35 25x25 2.35
3900 22x25 2.20 22x35 2.65 25x30 2.65 30x25 2.65
4700 22x30 2.40 25x25 2.40 22x40 3.00 25x35 3.00 30x25 2.95
5600 22x35 2.75 25x25 2.75 22x45 3.35 25x40 3.35 30x30 3.35 35x25 3.40
6800 22x40 2.85 25x30 2.85 30x25 2.90 22x50 3.80 25x40 3.80 30x35 3.85 35x30 3.85
8200 22x45 3.15 25x35 3.10 30x30 3.15 25x50 4.35 30x40 4.35 35x30 4.40
10000 22x50 3.55 25x40 3.50 30x30 3.45 35x25 3.40 30x45 5.00 35x35 4.95
12000 25x45 3.95 30x35 4.00 35x30 4.05 30x50 5.60 35x40 5.55
15000 25x50 4.95 30x40 4.95 35x35 5.00 35x45 6.45
18000 30x45 5.50 35x40 5.55 35x50 6.70
22000 30x50 6.00 35x45 6.05
27000 35x50 6.90
W.V. 63 80
D 22 25 30 35 22 25 30 35
DxL A DxL A DxL A DxL A DxL A DxL A DxL A DxL A
1200 22x25 1.65
1500 22x30 1.90 25x25 1.90
1800 22x25 1.85 22x35 2.20 25x30 2.20 30x25 2.20
2200 22x30 2.30 25x25 2.30 22x40 2.45 25x30 2.45 30x25 2.50
2700 22x35 2.45 25x30 2.45 30x25 2.50 22x45 2.80 25x35 2.80 30x30 2.85 35x25 2.85
3300 22x40 2.60 25x30 2.65 30x25 2.70 22x50 3.15 25x40 3.20 30x30 3.20 35x25 3.20
3900 22x45 2.95 25x35 2.95 30x30 3.00 25x45 3.60 30x35 3.60 35x30 3.60
4700 22x50 3.40 25x40 3.35 30x30 3.35 35x25 3.40 25x50 4.05 30x40 4.05 35x35 4.10
5600 25x45 3.70 30x35 3.75 35x30 3.75 30x45 4.55 35x35 4.50
6800 30x40 4.25 35x30 4.20 30x50 5.15 35x40 5.15
8200 30x45 4.80 35x35 4.80 35x45 5.85
10000 30x50 5.50 35x40 5.45 35x50 6.60
12000 35x45 6.20
W.V. 100 160
D 22 25 30 35 22 25 30 35
DxL A DxL A DxL A DxL A DxL A DxL A DxL A DxL A
270 22x25 1.15
330 22x25 1.40 25x20 1.35
390 22x30 1.55 25x25 1.55 30x25 1.50
470 22x30 1.75 25x25 1.75 30x25 1.70
560 22x35 1.95 25x30 1.95 30x25 1.90
680 22x40 2.20 25x30 2.20 30x25 2.15
820 22x25 1.85 22x45 2.50 25x35 2.55 30x30 2.50 35x25 2.50
1000 22x30 2.10 25x25 2.10 22x50 2.85 25x40 2.80 30x35 2.80 35x25 2.80
1200 22x35 2.40 25x30 2.45 25x45 3.15 30x35 3.15 35x30 3.20
1500 22x40 2.70 25x30 2.75 30x25 2.75 30x45 3.75 35x35 3.70
1800 22x45 3.10 25x35 3.15 30x30 3.15 35x25 3.15 30x50 4.20 35x40 4.20
2200 22x50 3.50 25x40 3.55 30x30 3.55 35x25 3.60 35x45 4.80
2700 25x45 4.10 30x35 4.05 35x30 4.05 35x50 5.45
3300 25x50 4.50 30x40 4.55 35x30 4.50
3900 30x45 5.15 35x35 5.10
4700 35x40 5.75
5600 35x50 6.20
W.V. 180 200
D 22 25 30 35 22 25 30 35
DxL A DxL A DxL A DxL A DxL A DxL A DxL A DxL A
180 22x20 1.00 22x25 0.95
220 22x25 1.10 22x25 1.10
270 22x25 1.25 25x20 1.25 22x30 1.25 25x25 1.25
330 22x30 1.40 25x25 1.40 22x30 1.45 25x25 1.45
390 22x30 1.60 25x25 1.60 22x30 1.60 25x25 1.55
470 22x35 1.80 25x30 1.80 30x25 1.80 22x35 1.80 25x30 1.80 30x25 1.80
560 22x40 2.00 25x30 1.95 30x25 2.00 22x40 2.00 25x35 2.00 30x25 2.00
680 22x45 2.25 25x35 2.20 30x30 2.20 35x25 2.20 22x45 2.35 25x40 2.30 30x30 2.30 35x25 2.30
820 22x50 2.55 25x40 2.55 30x35 2.60 35x25 2.60 25x45 2.60 30x35 2.60 35x30 2.60
1000 25x45 2.85 30x35 2.85 35x30 2.90 25x50 3.00 30x40 3.05 35x30 3.00
1200 30x40 3.25 35x35 3.30 30x45 3.30 35x35 3.30
1500 30x45 3.85 35x40 3.80 30x50 3.80 35x40 3.80
1800 35x45 4.30 35x45 4.35
2200 35x50 4.90 35x50 4.95
W.V. 250 350
D 22 25 30 35 22 25 30 35
DxL A DxL A DxL A DxL A DxL A DxL A DxL A DxL A
68 22x20 0.55
82 22x25 0.65 25x20 0.65
100 22x30 0.90 25x20 0.90
120 22x20 0.78 22x30 1.00 25x25 1.00
150 22x25 0.90 22x35 1.15 25x30 1.15 30x25 1.15
180 22x25 1.05 25x20 1.00 22x40 1.30 25x30 1.25 30x25 1.25
220 22x30 1.15 25x25 1.15 22x45 1.45 25x35 1.45 30x30 1.45 35x25 1.45
270 22x30 1.30 25x25 1.30 25x40 1.65 30x35 1.65 35x25 1.65
330 22x35 1.50 25x30 1.50 30x25 1.50 25x50 1.80 30x40 1.80 35x30 1.80
390 22x40 1.65 25x35 1.65 30x25 1.65 30x40 2.00 35x30 2.00
470 22x45 1.85 25x35 1.85 30x30 1.90 35x25 1.90 30x45 2.25 35x35 2.25
560 22x50 2.10 25x40 2.10 30x35 2.10 35x25 2.10 35x40 2.50
680 25x50 2.45 30x40 2.45 35x30 2.45 35x45 2.90
820 30x45 2.75 35x35 2.75
1000 30x50 3.30 35x40 3.30
1200 35x45 3.55
1500 35x50 4.05
W.V. 400 450
D 22 25 30 35 22 25 30 35
DxL A DxL A DxL A DxL A DxL A DxL A DxL A DxL A
56 22x20 0.55 22x25 0.65
68 22x25 0.60 25x20 0.60 22x30 0.70 25x25 0.70
82 22x25 0.80 25x20 0.80 22x30 0.80 25x25 0.80
100 22x30 0.90 25x25 0.90 22x35 0.95 25x30 0.95 30x25 0.95
120 22x35 1.05 25x25 1.05 22x40 1.05 25x30 1.05 30x25 1.05
150 22x40 1.15 25x30 1.15 30x25 1.15 22x45 1.20 25x35 1.20 30x30 1.20
180 22x45 1.30 25x35 1.30 30x30 1.35 25x40 1.35 30x35 1.35 35x25 1.35
220 22x50 1.50 25x40 1.50 30x30 1.50 35x25 1.50 25x50 1.55 30x40 1.55 35x30 1.55
270 25x45 1.65 30x35 1.65 35x30 1.65 30x45 1.75 35x35 1.70
330 25x50 1.90 30x40 1.90 35x30 1.85 30x50 2.00 35x40 2.00
390 30x45 2.15 35x35 2.10 35x45 2.25
470 30x50 2.40 35x40 2.40 35x50 2.50
560 35x45 2.70
680 35x50 2.90
