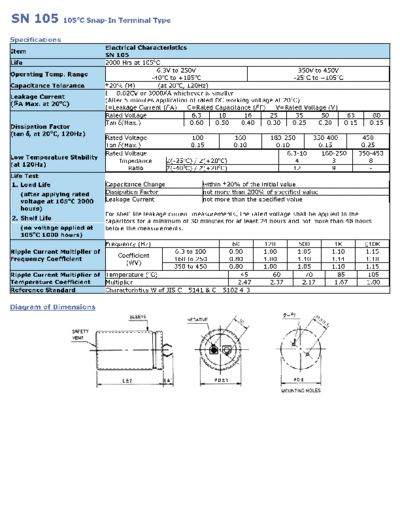

Image preview - the first page of the document
![Wincap [snap-in] SN105 Series](/pics/5c2e0d2dbda03.gif)
>> Download Wincap [snap-in] SN105 Series documenatation <<
Text preview - extract from the document
SN 105 105oC Snap-In Terminal Type
Specifications
Electrical Characteristics
Item
SN 105
Life 2000 Hrs at 105oC
6.3V to 250V 350V to 450V
Operating Temp. Range
-40oC to +105oC -25oC to +105oC
Capacitance Tolerance 20% (M) (at 20oC, 120Hz)
I = 0.02CV or 3000 A whichever is smaller
Leakage Current
(After 5 minutes application of rated DC working voltage at 20 oC)
( A Max. at 20oC)
I=Leakage Current ( A) C=Rated Capacitance ( F) V=Rated Voltage (V)
Rated Voltage 6.3 10 16 25 35 50 63 80
Tan (Max.) 0.60 0.50 0.40 0.30 0.25 0.20 0.15 0.15
Dissipation Factor
(tan , at 20oC, 120Hz)
Rated Voltage 100 160 180-250 350-400 450
Tan (Max.) 0.15 0.10 0.10 0.15 0.25
Rated Voltage 6.3-10 160-250 350-450
Low Temperature Stability
Impedance Z(-25oC) / Z(+20oC) 4 3 8
(at 120Hz)
Ratio Z(-40oC) / Z(+20oC) 12 9 -
Life Test
1. Load Life Capacitance Change within 20% of the initial value
(after applying rated Dissipation Factor not more than 200% of specified value
voltage at 105oC 2000 Leakage Current not more than the specified value
hours)
For shelf life leakage current measurements, the rated voltage shall be applied to the
2. Shelf Life
capacitors for a minimum of 30 minutes for at least 24 hours and not more than 48 hours
(no voltage applied at before the measurements.
105oC 1000 hours)
Frequency (Hz) 60 120 500 1K 10K
Ripple Current Multiplier of 6.3 to 100 0.90 1.00 1.05 1.10 1.15
Coefficient
Frequency Coefficient 160 to 250 0.80 1.00 1.10 1.14 1.18
(WV)
350 to 450 0.80 1.00 1.05 1.10 1.15
Ripple Current Multiplier of Temperature (oC) 45 60 70 85 105
Temperature Coefficient Multiplier 2.47 2.37 2.17 1.67 1.00
Reference Standard Characteristics W of JIS C - 5141 & C - 5102 4-3
Diagram of Dimensions
Dimension & Permissible Ripple Current
Dimension: DxL(mm) Ripple current (A/rms) at 105oC, 120Hz
W.V. 6.3 10
D 22 25 30 35 22 25 30 35
DxL A DxL A DxL A DxL A DxL A DxL A DxL A DxL A
10000 22x25 1.55
12000 22x25 1.55 22x30 1.75
15000 22x30 1.70 25x25 1.70 22x30 1.90 25x25 1.90
18000 22x30 1.95 25x25 1.95 22x35 2.20 25x30 2.25
22000 22x35 2.25 25x30 2.25 30x25 2.30 22x40 2.50 25x35 2.55 30x25 2.45
27000 22x40 2.55 25x35 2.55 30x30 2.55 35x25 2.55 22x50 2.95 25x40 2.90 30x30 2.85 35x25 2.80
33000 22x45 2.90 25x40 2.95 30x30 2.90 35x25 2.95 25x45 3.30 30x35 3.30 35x30 3.30
39000 25x50 3.25 30x35 3.25 35x30 3.30 25x50 3.70 30x40 3.70 35x30 3.65
47000 25x50 3.70 30x40 3.70 35x35 3.75 30x45 4.20 35x35 3.80
56000 30x45 4.15 35x35 4.10 30x50 4.65 35x40 4.65
68000 30x50 4.70 35x40 4.70 35x50 5.50
82000 35x45 5.30
W.V. 16 25
D 22 25 30 35 22 25 30 35
DxL A DxL A DxL A DxL A DxL A DxL A DxL A DxL A
4700 22x25 1.50
5600 22x30 1.65 25x25 1.65
6800 22x25 1.55 22x30 1.85 25x25 1.85
8200 22x30 1.70 25x25 1.70 22x35 2.10 25x30 2.10 30x25 2.15
10000 22x30 1.95 25x25 1.95 22x40 2.40 25x35 2.40 30x30 2.40 35x25 2.40
12000 22x35 2.20 25x30 2.25 30x25 2.30 22x45 2.70 25x40 2.75 30x30 2.70 35x25 2.75
15000 22x40 2.55 25x35 2.60 30x30 2.60 35x25 2.65 25x45 3.15 30x35 3.15 35x30 3.25
18000 22x45 2.90 25x40 2.90 30x30 2.90 35x25 2.95 25x50 3.55 30x40 3.55 35x35 3.55
22000 25x45 3.30 30x35 3.30 35x30 3.30 30x45 4.05 35x35 3.80
27000 25x50 3.80 30x40 3.75 35x30 3.75 35x45 4.70
33000 30x45 4.30 35x35 4.25 35x50 5.40
39000 30x50 4.80 35x40 4.80
47000 35x45 5.45
W.V. 35 50
D 22 25 30 35 22 25 30 35
DxL A DxL A DxL A DxL A DxL A DxL A DxL A DxL A
1800 22x25 1.30
2200 22x30 1.55 25x25 1.55
2700 22x30 1.70 25x25 1.70
3300 22x25 1.40 22x35 1.95 25x30 1.85
3900 22x30 1.55 25x25 1.55 22x40 2.15 25x35 2.20 30x25 1.95
4700 22x35 1.80 25x25 1.80 22x45 2.45 25x40 2.45 30x30 2.45 35x25 2.50
5600 22x35 1.95 25x30 1.95 30x25 2.00 22x50 2.75 25x40 2.70 30x35 2.75 35x30 2.75
6800 22x40 2.20 25x35 2.25 30x30 2.30 35x25 2.35 25x50 3.30 30x40 3.30 35x30 3.25
8200 22x50 2.55 25x40 2.50 30x30 2.75 35x25 2.75 30x45 3.60 35x35 3.55
10000 25x45 2.85 30x35 2.90 35x30 2.95 30x50 4.05 35x40 4.00
12000 25x50 3.25 30x40 3.25 35x30 3.15 35x45 4.55
15000 30x45 3.70 35x35 3.65
18000 35x40 4.35
22000 35x50 4.90
W.V. 63 80
D 22 25 30 35 22 25 30 35
DxL A DxL A DxL A DxL A DxL A DxL A DxL A DxL A
820 22x25 1.10
1000 22x30 1.20 25x25 1.20
1200 22x25 1.20 22x30 1.40 25x25 1.40
1500 22x30 1.30 25x25 1.30 22x35 1.60 25x30 1.60 30x25 1.65
1800 22x30 1.50 25x25 1.50 22x40 1.80 25x35 1.85 30x25 1.80
2200 22x35 1.70 25x30 1.75 30x25 1.80 22x45 2.05 25x35 2.00 30x30 2.05 35x25 2.05
2700 22x40 2.00 25x35 2.00 30x25 1.95 25x45 2.35 30x35 2.35 35x30 2.35
3300 22x50 2.30 25x40 2.30 30x30 2.25 35x25 2.10 25x50 2.70 30x40 2.70 35x30 2.55
3900 25x45 2.55 30x35 2.55 35x30 2.55 30x45 3.00 35x35 3.00
4700 25x50 2.85 30x40 2.85 35x30 2.80 30x50 3.40 35x40 3.40
5600 30x45 3.20 35x35 3.20 35x45 3.80
6800 30x50 3.65 35x40 3.65 35x50 3.90
8200 35x45 3.90
10000 35x50 4.40
W.V. 100 160
D 22 25 30 35 22 25 30 35
DxL A DxL A DxL A DxL A DxL A DxL A DxL A DxL A
220 22x20 0.80
270 22x25 1.00
330 22x25 1.20 25x20 1.15
390 22x30 1.30 25x25 1.30
470 22x35 1.40 25x25 1.40
560 22x25 1.05 22x40 1.50 25x30 1.50 30x25 1.50
680 22x25 1.20 22x45 1.70 25x35 1.70 30x25 1.70
820 22x30 1.30 25x25 1.33 22x50 1.95 25x40 2.00 30x30 2.00 35x25 1.90
1000 22x35 1.50 25x30 1.50 25x45 2.20 30x35 2.20 35x30 2.20
1200 22x40 1.70 25x35 1.70 30x25 1.70 25x50 2.45 30x40 2.45 35x30 2.45
1500 22x45 1.95 25x40 2.00 30x30 1.95 35x25 2.00 30x45 2.80 35x35 2.80
1800 25x45 2.20 30x35 2.50 35x30 2.45 30x50 3.30 35x45 3.30
2200 25x50 2.55 30x40 2.70 35x30 2.55 35x50 3.75
2700 30x45 2.90 35x35 2.85
3300 30x50 3.25 35x40 3.25
3900 35x45 3.70
4700 35x50 3.80
W.V. 180 200
D 22 25 30 35 22 25 30 35
DxL A DxL A DxL A DxL A DxL A DxL A DxL A DxL A
150 22x20 0.65
180 22x20 0.75 22x20 0.70
220 22x25 0.85 22x25 0.80 25x20 0.80
270 22x25 0.95 25x20 0.90 22x25 0.85 25x25 0.85
330 22x30 1.10 25x25 1.10 22x30 1.20 25x25 1.20
390 22x30 1.30 25x25 1.30 22x35 1.30 25x30 1.30 30x25 1.30
470 22x35 1.35 25x30 1.40 30x25 1.40 22x40 1.40 25x30 1.40 30x25 1.50
560 22x40 1.50 25x35 1.55 30x25 1.50 22x45 1.55 25x35 1.55 30x30 1.55
680 22x50 1.70 25x40 1.75 30x30 1.70 35x25 1.70 22x50 1.75 25x40 1.75 30x30 1.75 35x25 1.70
820 22x50 2.00 25x45 2.00 30x35 2.00 35x25 1.90 25x50 2.05 30x35 2.00 35x30 2.05
1000 25x50 2.20 30x40 2.25 35x30 2.25 30x45 2.30 35x35 2.30
1200 30x45 2.50 35x35 2.50 30x50 2.60 35x40 2.65
1500 30x50 2.90 35x40 2.90 35x45 3.10
1800 35x50 3.30 35x50 3.50
2200 35x50 3.60
W.V. 250 350
D 22 25 30 35 22 25 30 35
DxL A DxL A DxL A DxL A DxL A DxL A DxL A DxL A
56 22x20 0.40
68 22x25 0.45
82 22x25 0.55 25x20 0.50
100 22x30 0.70 25x25 0.70
120 22x20 0.60 22x35 0.75 25x30 0.75 30x25 0.75
150 22x25 0.65 22x40 0.80 25x30 0.85 30x25 0.85
180 22x25 0.80 25x20 0.75 22x45 0.90 25x35 0.90 30x30 0.90
220 22x30 0.95 25x25 0.95 22x50 1.05 25x40 1.05 30x30 1.00 35x25 1.05
270 22x35 1.15 25x30 1.15 30x25 1.15 25x45 1.20 30x35 1.20 35x30 1.20
330 22x40 1.25 25x30 1.20 30x25 1.25 30x40 1.35 35x35 1.35
390 22x45 1.50 25x35 1.50 30x30 1.50 30x45 1.50 35x35 1.50
470 22x50 1.55 25x40 1.55 30x30 1.55 35x25 1.55 35x40 1.70
560 25x45 1.80 30x35 1.80 35x30 1.80 35x45 1.90
680 25x50 1.95 30x40 2.00 35x35 2.00
820 30x45 2.15 35x35 2.10
1000 35x40 2.30
1200 35x45 2.45
W.V. 400 450
D 22 25 30 35 22 25 30 35
DxL A DxL A DxL A DxL A DxL A DxL A DxL A DxL A
47 22x20 0.35
56 22x20 0.40 22x25 0.40
68 22x25 0.50 25x20 0.50 22x30 0.50 25x25 0.50
82 22x30 0.60 25x25 0.65 22x35 0.55 25x30 0.55 30x25 0.55
100 22x35 0.65 25x30 0.65 22x40 0.65 25x30 0.60 30x25 0.65
120 22x35 0.70 25x30 0.70 30x25 0.75 22x45 0.70 25x35 0.70 30x30 0.70 35x25 0.70
150 22x40 0.80 25x35 0.85 30x30 0.85 35x25 0.80 22x50 0.80 25x40 0.80 30x30 0.75 35x25 0.75
180 22x50 0.95 25x40 0.95 30x30 0.90 35x25 0.95 25x45 0.85 30x35 0.85 35x30 0.85
220 25x45 1.05 30x35 1.05 35x30 1.10 25x50 1.00 30x40 1.00 35x30 1.00
270 25x50 1.20 30x40 1.20 35x35 1.20 30x45 1.15 35x35 1.15
330 30x45 1.40 35x35 1.35 30x50 1.40 35x40 1.40
390 30x50 1.55 35x40 1.55 35x45 1.55
470 35x45 1.75 35x50 1.70
