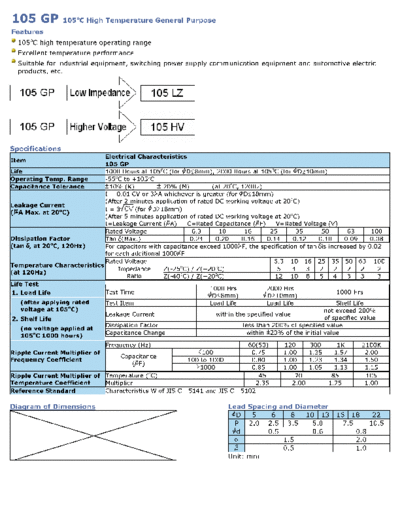

Image preview - the first page of the document
![Wincap [radial thru-hole] 105GP Series](/pics/5c2e0d351d784.gif)
>> Download Wincap [radial thru-hole] 105GP Series documenatation <<
Text preview - extract from the document
105 GP 105oC High Temperature General Purpose
Features
105oC high temperature operating range
Excellent temperature performance
Suitable for industrial equipment, switching power supply communication equipment and automotive electric
products, etc.
Specifications
Electrical Characteristics
Item
105 GP
Life 1000 Hours at 105oC (for D 8mm), 2000 Hours at 105oC (for D 10mm)
Operating Temp. Range -55oC to +105oC
Capacitance Tolerance 10% (K) 20% (M) (at 20oC, 120Hz)
I = 0.01 CV or 3 A whichever is greater (for D 18mm)
(After 2 minutes application of rated DC working voltage at 20 oC)
Leakage Current
I=3 (for D 18mm)
( A Max. at 20oC)
(After 5 minutes application of rated DC working voltage at 20 oC)
I=Leakage Current ( A) C=Rated Capacitance ( F) V=Rated Voltage (V)
Rated Voltage 6.3 10 16 25 35 50 63 100
Dissipation Factor Tan (Max.) 0.24 0.20 0.16 0.14 0.12 0.10 0.09 0.08
(tan , at 20oC, 120Hz) For capacitors with capacitance exceed 1000 F, the specification of tan is increased by 0.02
for each additional 1000 F
Rated Voltage 6.3 10 16 25 35 50 63 100
Temperature Characteristics
Impedance Z(-25oC) / Z(+20oC) 5 4 3 2 2 2 2 2
(at 120Hz)
Ratio Z(-40oC) / Z(+20oC) 12 10 8 5 4 3 3 3
Life Test
1000 Hrs 2000 Hrs
1. Load Life Test Time 1000 Hrs
D 8mm) D 10mm)
(after applying rated Test Item Load Life Load Life Shelf Life
voltage at 105oC) not exceed 200%
Leakage Current within the specified value
2. Shelf Life of specified value
Dissipation Factor less than 200% of specified value
(no voltage applied at
105oC 1000 hours) Capacitance Change within 20% of the initial value
Frequency (Hz) 60(50) 120 300 1K 100K
Ripple Current Multiplier of 100 0.75 1.00 1.35 1.57 2.00
Capacitance
Frequency Coefficient 100 to 1000 0.80 1.00 1.23 1.34 1.50
( F)
1000 0.85 1.00 1.05 1.13 1.15
Ripple Current Multiplier of Temperature (oC) 45 70 85 105
Temperature Coefficient Multiplier 2.35 2.00 1.75 1.00
Reference Standard Characteristics W of JIS C - 5141 and JIS C - 5102
Diagram of Dimensions Lead Spacing and Diameter
D 5 6 8 10 13 16 18 22
P 2.0 2.5 3.5 5.0 7.5 10.5
d 0.5 0.6 0.8
1.5 2.0
0.5 1.0
Unit: mm
Dimension & Permissible Ripple Current
Dimension: DxL(mm) Ripple current (mA/rms) at 105oC, 120Hz
W.V. 6.3 10 16 25
Cap. V. Code (006) (010) (016) (025)
Code
DxL mA DxL mA DxL mA DxL mA
106 10 5x11 40 5x11 44
226 22 5x11 58 5x11 62
336 33 5x11 70 5x11 76
476 47 5x11 75 5x11 85 5x11 97
686 68 5x11 80 5x11 100 6x11 125
107 100 5x11 110 6x11 135 6x11 145
157 150 5x11 120 6x11 130 8x12 180 8x12 200
227 220 6x11 165 6x11 180 8x12 235 8x12 250
337 330 6x11 200 8x12 255 8x12 305 10x13 355
477 470 8x12 280 8x12 305 8x12 395 10x13 470
687 680 10x13 320 10x13 420 10x16 530 10x21 650
108 1000 10x13 470 10x13 550 10x21 700 13x21 855
158 1500 10x16 600 10x21 750 13x21 860 13x26 1020
228 2200 10x21 930 13x21 1010 13x21 1150 16x25 1250
338 3300 13x21 1110 13x21 1180 13x26 1300 16x32 1580
478 4700 13x25 1320 16x25 1430 16x32 1600 18x36 1780
688 6800 16x25 1500 16x32 1690 18x36 1900 18x40 1950
109 10000 16x32 1830 18x36 1980 18x40 2100 22x40 2280
129 12000 18x36 2020 18x36 2150 22x40 2320
159 15000 18x36 2280 18x40 2400 22x40 2580
189 18000 18x40 2430 22x40 2550
229 22000 22x40 2890 22x40 3050
W.V. 35 50 63 100
Cap. V. Code (035) (050) (063) (100)
Code
DxL mA DxL mA DxL mA DxL mA
104 0.1 5x11 1.3 5x11 2.6
224 0.22 5x11 2.9 5x11 5.8
334 0.33 5x11 4.4 5x11 7.8
474 0.47 5x11 7 5x11 9 5x11 11
105 1 5x11 13 5x11 14 5x11 16
225 2.2 5x11 20 5x11 21 5x11 23
335 3.3 5x11 25 5x11 27 5x11 31
475 4.7 5x11 30 5x11 36 6x11 40
106 10 5x11 60 5x11 69 5x11 74 6x11 80
226 22 5x11 100 5x11 105 6x11 115 8x12 135
336 33 5x11 115 6x11 125 6x11 140 10x13 180
476 47 5x11 140 6x11 150 8x12 190 10x16 240
336 33 5x11 115 6x11 125 6x11 140 10x13 180
476 47 5x11 140 6x11 150 8x12 190 10x16 240
107 100 8x12 240 8x12 250 10x13 320 10x21 400
227 220 10x13 420 10x16 460 10x16 490 13x26 710
337 330 10x13 490 10x16 585 10x21 680 16x25 900
477 470 10x21 740 13x21 860 13x26 950 16x32 1250
108 1000 13x21 1100 13x26 1350 16x25 1550 18x40 1750
228 2200 16x25 1800 16x36 2090 18x40 2200 22x40 2300
338 3300 16x36 2220 18x40 2400 22x40 2560
478 4700 18x36 2400 22x40 2800
688 6800 22x40 2800
