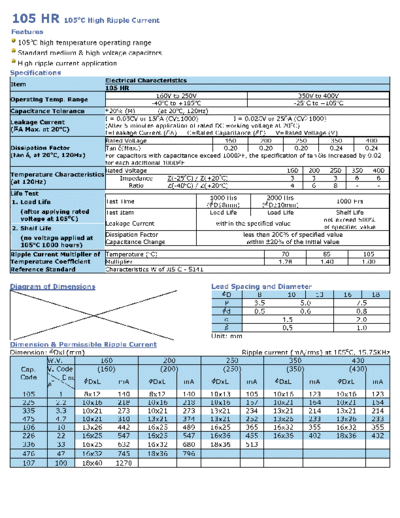

Image preview - the first page of the document
![Wincap [radial thru-hole] 105HR Series](/pics/5c2e0d3bda6f7.gif)
>> Download Wincap [radial thru-hole] 105HR Series documenatation <<
Text preview - extract from the document
105 HR 105oC High Ripple Current
Features
105oC high temperature operating range
Standard medium & high voltage capacitors
High ripple current application
Specifications
Electrical Characteristics
Item
105 HR
160V to 250V 350V to 400V
Operating Temp. Range
-40oC to +105oC -25oC to +105oC
Capacitance Tolerance 20% (M) (at 20oC, 120Hz)
I = 0.03CV or 15 A (CV 1000) I = 0.02CV or 25 A (CV 1000)
Leakage Current
o (After 5 minutes application of rated DC working voltage at 20 oC)
( A Max. at 20 C)
I=Leakage Current ( A) C=Rated Capacitance ( F) V=Rated Voltage (V)
Rated Voltage 160 200 250 350 400
Dissipation Factor Tan (Max.) 0.20 0.20 0.20 0.24 0.24
(tan , at 20oC, 120Hz) For capacitors with capacitance exceed 1000 F, the specification of tan is increased by 0.02
for each additional 1000 F
Rated Voltage 160 200 250 350 400
Temperature Characteristics
Impedance Z(-25oC) / Z(+20oC) 3 3 3 6 6
(at 120Hz)
Ratio Z(-40oC) / Z(+20oC) 4 6 8 - -
Life Test
1000 Hrs 2000 Hrs
1. Load Life Test Time 1000 Hrs
( D 8mm) ( D 10mm)
(after applying rated Test Item Load Life Load Life Shelf Life
voltage at 105oC) not exceed 500%
Leakage Current within the specified value
2. Shelf Life of specified value
Dissipation Factor less than 200% of specified value
(no voltage applied at
Capacitance Change within 20% of the initial value
105oC 1000 hours)
Ripple Current Multiplier of Temperature (oC) 70 85 105
Temperature Coefficient Multiplier 1.78 1.40 1.00
Reference Standard Characteristics W of JIS C - 5141
Diagram of Dimensions Lead Spacing and Diameter
D 8 10 13 16 18
P 3.5 5.0 7.5
d 0.5 0.6 0.8
1.5 2.0
0.5 1.0
Unit: mm
Dimension & Permissible Ripple Current
Dimension: DxL(mm) Ripple current (mA/rms) at 105oC, 15.75KHz
W.V. 160 200 250 350 400
Cap. V. Code (160) (200) (250) (350) (400)
Code
DxL mA DxL mA DxL mA DxL mA DxL mA
105 1 8x12 140 8x12 140 10x13 105 10x16 123 10x16 123
225 2.2 10x16 218 10x16 218 10x16 157 10x21 164 10x21 164
335 3.3 10x21 273 10x21 273 13x21 234 13x21 214 13x21 214
475 4.7 10x21 310 13x21 374 13x21 252 13x26 233 13x26 233
106 10 13x26 442 16x25 489 16x25 365 16x32 355 16x32 355
226 22 16x25 547 16x25 547 16x36 455 16x36 402 18x36 402
336 33 16x25 632 16x32 680 18x36 513
476 47 16x32 745 18x36 796
107 100 18x40 1270
