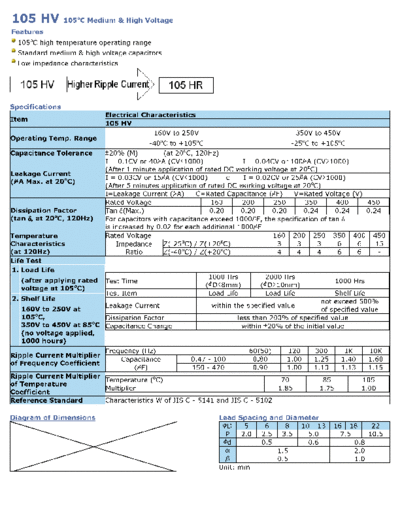

Image preview - the first page of the document
![Wincap [radial thru-hole] 105HV Series](/pics/5c2e0d4229ad9.gif)
>> Download Wincap [radial thru-hole] 105HV Series documenatation <<
Text preview - extract from the document
105 HV 105oC Medium & High Voltage
Features
105oC high temperature operating range
Standard medium & high voltage capacitors
Low impedance characteristics
Specifications
Electrical Characteristics
Item
105 HV
160V to 250V 350V to 450V
Operating Temp. Range o o
-40 C to +105 C -25oC to +105oC
Capacitance Tolerance 20% (M) (at 20oC, 120Hz)
I = 0.1CV or 40 A (CV 1000) I = 0.04CV or 100 A (CV 1000)
(After 1 minute application of rated DC working voltage at 20 oC)
Leakage Current
I = 0.03CV or 15 A (CV 1000) c I = 0.02CV or 25 A (CV 1000)
( A Max. at 20oC)
(After 5 minutes application of rated DC working voltage at 20oC)
I=Leakage Current ( A) C=Rated Capacitance ( F) V=Rated Voltage (V)
Rated Voltage 160 200 250 350 400 450
Dissipation Factor Tan (Max.) 0.20 0.20 0.20 0.24 0.24 0.24
(tan , at 20oC, 120Hz) For capacitors with capacitance exceed 1000 F, the specification of tan
is increased by 0.02 for each additional 1000 F
Temperature Rated Voltage 160 200 250 350 400 450
o o
Characteristics Impedance Z(-25 C) / Z(+20 C) 3 3 3 6 6 15
(at 120Hz) Ratio Z(-40oC) / Z(+20oC) 4 4 4 6 6 -
Life Test
1. Load Life
1000 Hrs 2000 Hrs
(after applying rated Test Time 1000 Hrs
( D 8mm) ( D 10mm)
voltage at 105oC)
Test Item Load Life Load Life Shelf Life
2. Shelf Life not exceed 500%
Leakage Current within the specified value
160V to 250V at of specified value
o
105 C, Dissipation Factor less than 200% of specified value
350V to 450V at 85oC Capacitance Change within 20% of the initial value
(no voltage applied,
1000 hours)
Frequency (Hz) 60(50) 120 300 1K 10K
Ripple Current Multiplier
Capacitance 0.47 - 100 0.80 1.00 1.25 1.40 1.60
of Frequency Coefficient
( F) 150 - 470 0.90 1.00 1.10 1.13 1.15
Ripple Current Multiplier
Temperature (oC) 70 85 105
of Temperature
Multiplier 1.85 1.75 1.00
Coefficient
Reference Standard Characteristics W of JIS C - 5141 and JIS C - 5102
Diagram of Dimensions Lead Spacing and Diameter
D 5 6 8 10 13 16 18 22
P 2.0 2.5 3.5 5.0 7.5 10.5
d 0.5 0.6 0.8
1.5 2.0
0.5 1.0
Unit: mm
Dimension & Permissible Ripple Current
Dimension: DxL(mm) Ripple current (mA/rms) at 105oC, 120Hz
W.V. 160 200 250 350 400 450
Cap. V. Code (160) (200) (250) (350) (400) (450)
Code
DxL mA DxL mA DxL mA DxL mA DxL mA DxL mA
474 0.47 5x11 12 5x11 12 5x11 12 5x11 14 6x11 14 6x11 14
105 1 5x11 17 6x11 17 6x11 17 8x12 20 8x12 20 8x12 20
225 2.2 6x11 25 6x11 25 8x12 29 8x12 29 10x13 35 10x13 35
335 3.3 8x12 34 8x12 34 10x13 42 10x13 46 10x13 50 10x16 52
475 4.7 8x12 40 10x13 48 10x13 48 10x16 52 10x16 60 10x21 62
685 6.8 10x13 54 10x13 60 10x13 60 10x16 65 10x21 72 10x21 80
106 10 10x13 73 10x13 75 10x21 88 10x21 95 13x21 97 13x26 100
156 15 10x16 90 10x16 100 10x21 110 13x21 130 13x26 150 16x25 160
226 22 10x16 120 10x21 130 13x21 155 13x26 165 16x25 175 16x32 180
336 33 10x21 160 13x21 170 13x26 180 13x26 195 16x25 205 18x36 210
476 47 13x21 210 13x26 220 13x26 230 16x25 240 18x36 250 18x40 260
686 68 13x26 270 13x26 270 16x25 300 16x32 320 18x36 330 22x40 340
107 100 16x25 330 16x25 335 16x32 340 18x36 360 22x40 370
157 150 16x32 435 16x36 450 18x40 460 22x40 480
227 220 16x36 500 18x40 515 22x40 525
337 330 18x40 800 22x40 880
477 470 22x40 900 22x40 920
