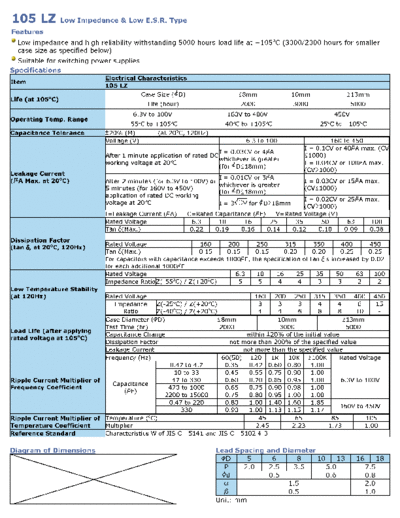

Image preview - the first page of the document
![Wincap [radial thru-hole] 105LZ Series](/pics/5c2e0d4d8bd23.gif)
>> Download Wincap [radial thru-hole] 105LZ Series documenatation <<
Text preview - extract from the document
105 LZ Low Impedance & Low E.S.R. Type
Features
Low impedance and high reliability withstanding 5000 hours load life at +105oC (3000/2000 hours for smaller
case size as specified below)
Suitable for switching power supplies
Specifications
Electrical Characteristics
Item
105 LZ
Case Size ( D) 8mm 10mm 13mm
Life (at 105oC)
Life (hour) 2000 3000 5000
6.3V to 100V 160V to 400V 450V
Operating Temp. Range o o o o
-55 C to +105 C -40 C to +105 C -25 C to +105oC
o
o
Capacitance Tolerance 20% (M) (at 20 C, 120Hz)
Voltage (V) 6.3 to 100 160 to 450
I = 0.1CV or 40 A max. (CV
I = 0.03CV or 4 A
After 1 minute application of rated DC 1000)
whichever is greater
working voltage at 20oC I = 0.04CV or 100 A max.
(for D 18mm)
(CV 1000)
Leakage Current
I = 0.01CV or 3 A
( A Max. at 20oC) After 2 minutes (for 6.3V to 100V) or I = 0.03CV or 15 A max.
whichever is greater
5 minutes (for 160V to 450V) (CV 1000)
(for D 18mm)
application of rated DC working
o I = 0.02CV or 25 A max.
voltage at 20 C I=3 for D 18mm
(CV 1000)
I=Leakage Current ( A) C=Rated Capacitance ( F) V=Rated Voltage (V)
Rated Voltage 6.3 10 16 25 35 50 63 100
Tan (Max.) 0.22 0.19 0.16 0.14 0.12 0.10 0.09 0.08
Dissipation Factor
Rated Voltage 160 200 250 315 350 400 450
(tan , at 20oC, 120Hz)
Tan (Max.) 0.15 0.15 0.15 0.20 0.20 0.25 0.25
For capacitors with capacitance exceeds 1000 F, the specification of tan is increased by 0.02
for each additional 1000 F
Rated Voltage 6.3 10 16 25 35 50 63 100
Impedance Ratio Z(-55oC) / Z(+20oC) 5 5 4 4 3 3 2 2
Low Temperature Stability
(at 120Hz) Rated Voltage 160 200 250 315 350 400 450
Impedance Z(-25oC) / Z(+20oC) 3 3 3 4 4 6 15
Ratio Z(-40oC) / Z(+20oC) 4 4 6 8 8 10 -
Case Diameter ( D) 8mm 10mm 13mm
Test Time (hr) 2000 3000 5000
Load Life (after applying
Capacitance Change within 20% of the initial value
rated voltage at 105oC)
Dissipation Factor not more than 200% of the specified value
Leakage Current not more than the specified value
Frequency (Hz) 60(50) 120 1K 10K 100K Rated Voltage
0.47 to 4.7 0.35 0.42 0.60 0.80 1.00
10 to 33 0.45 0.55 0.75 0.90 1.00
Ripple Current Multiplier of 47 to 330 0.60 0.70 0.85 0.95 1.00 6.3V to 100V
Capacitance
Frequency Coefficient 470 to 1000 0.65 0.75 0.90 0.98 1.00
( F)
2200 to 15000 0.75 0.80 0.95 1.00 1.00
0.47 to 220 0.80 1.00 1.40 1.60 1.85
160V to 450V
330 0.90 1.00 1.13 1.15 1.17
o
Ripple Current Multiplier of Temperature ( C) 45 65 85 105
Temperature Coefficient Multiplier 2.45 2.23 1.73 1.00
Reference Standard Characteristics W of JIS C - 5141 and JIS C - 5102 4-3
Diagram of Dimensions Lead Spacing and Diameter
D 5 6 8 10 13 16 18
P 2.0 2.5 3.5 5.0 7.5
d 0.5 0.6 0.8
1.5 2.0
0.5 1.0
Unit: mm
Dimension & Permissible Ripple Current
Dimension: DxL(mm) Ripple current (mA/rms) at 105oC, 100KHz
W.V. 6.3 10 16 25 35
Cap. V. Code (006) (010) (016) (025) (035)
Code
DxL mA DxL mA DxL mA DxL mA DxL mA
336 33 5x11 160 6x11 160
476 47 5x11 160 5x11 160 6x11 250
107 100 5x11 160 5x11 160 6x11 250 8x12 260 8x12 410
157 150 6x11 250 6x11 250 6x11 250 8x12 410 10x13 500
227 220 6x11 250 6x11 250 8x12 410 8x12 410 10x16 620
337 330 6x11 250 8x12 410 10x13 500 10x16 620 10x21 800
477 470 8x12 410 10x13 410 10x16 620 10x21 800 13x21 1000
687 680 10x13 600 10x16 600 10x21 860 13x21 1000 13x26 1250
108 1000 10x16 620 10x16 800 10x21 1000 13x26 1300 16x25 1550
158 1500 10x21 1000 10x21 1000 13x21 1250 16x25 1900 16x25 1900
228 2200 13x21 1250 13x21 1250 13x26 1550 16x32 2350 16x32 2350
338 3300 13x26 1300 13x26 1550 16x25 1900 16x32 2350 18x36 2700
478 4700 16x25 1900 16x25 1900 16x32 2350 18x36 2700 18x40 3300
688 6800 16x25 1900 16x32 2350 18x36 2700 18x40 3300
109 10000 16x32 2350 18x36 2700 18x40 3300
159 15000 18x36 2700 18x40 3300
W.V. 50 63 100 160 200
Cap. V. Code (050) (063) (100) (160) (200)
Code
DxL mA DxL mA DxL mA DxL mA DxL mA
474 0.47 5x11 25 5x11 20 6x11 12 6x11 12
105 1 5x11 40 5x11 30 6x11 17 6x11 17
225 2.2 5x11 55 5x11 44 6x11 25 6x11 25
335 3.3 5x11 65 6x11 58 8x12 36 8x12 36
475 4.7 5x11 90 6x11 74 8x12 43 10x13 50
106 10 5x11 120 6x11 120 6x11 130 10x13 70 10x16 80
226 22 6x11 160 8x12 200 10x13 240 10x21 130 10x21 140
336 33 6x11 250 8x12 250 10x16 320 13x21 180 13x26 190
476 47 8x12 260 10x13 310 10x21 420 13x26 220 13x26 220
107 100 10x13 410 10x21 410 13x26 580 16x25 330 16x32 335
157 150 10x16 620 10x21 620 16x25 710
227 220 10x21 700 13x21 700 16x32 890 18x36 500 18x40 515
337 330 13x21 810 13x26 1000 16x32 1080 22x40 900 22x40 1100
477 470 13x26 1100 16x25 1250 18x36 1310
687 680 16x25 1250 16x32 1300 18x40 1450
108 1000 16x25 1600 16x32 1380
158 1500 16x32 2000 18x36 1750
228 2200 18x36 2350 18x40 2120
W.V. 250 315 350 400 450
Cap. V. Code (250) (315) (350) (400) (450)
Code
DxL mA DxL mA DxL mA DxL mA DxL mA
474 0.47 6x11 12 8x12 11 8x12 11
105 1 6x11 17 8x12 16 10x13 17 10x13 16 10x13 18
225 2.2 8x12 29 10x13 28 10x16 31 10x16 27 10x21 29
335 3.3 10x13 42 10x13 34 10x16 38 10x21 36 13x21 41
475 4.7 10x13 50 10x16 45 10x21 49 10x21 43 13x21 49
106 10 10x21 88 10x20 72 13x21 82 13x26 72 16x25 75
226 22 13x26 155 13x26 120 16x25 130 16x25 110 16x32 115
336 33 13x26 190 16x25 155 16x32 160 16x32 140 18x36 145
476 47 16x25 230 16x36 190 18x36 200 18x36 170 22x40 175
107 100 18x36 340 18x40 285 22x40 290
227 220 22x40 525
