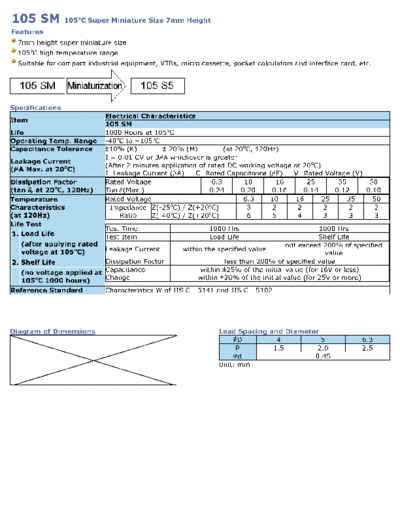

Image preview - the first page of the document
![Wincap [radial thru-hole] 105SM Series](/pics/5c2e0d552392c.gif)
>> Download Wincap [radial thru-hole] 105SM Series documenatation <<
Text preview - extract from the document
105 SM 105oC Super Miniature Size 7mm Height
Features
7mm height super miniature size
105oC high temperature range
Suitable for compact industrial equipment, VTRs, micro cassette, pocket calculators and interface card, etc.
Specifications
Electrical Characteristics
Item
105 SM
Life 1000 Hours at 105oC
Operating Temp. Range -40oC to +105oC
Capacitance Tolerance 10% (K) 20% (M) (at 20oC, 120Hz)
I = 0.01 CV or 3 A whichever is greater
Leakage Current
(After 2 minutes application of rated DC working voltage at 20 oC)
( A Max. at 20oC)
I=Leakage Current ( A) C=Rated Capacitance ( F) V=Rated Voltage (V)
Dissipation Factor Rated Voltage 6.3 10 16 25 35 50
(tan , at 20oC, 120Hz) Tan (Max.) 0.24 0.20 0.16 0.14 0.12 0.10
Temperature Rated Voltage 6.3 10 16 25 35 50
o o
Characteristics Impedance Z(-25 C) / Z(+20 C) 3 2 2 2 2 2
(at 120Hz) Ratio Z(-40oC) / Z(+20oC) 6 5 4 3 3 3
Life Test
Test Time 1000 Hrs 1000 Hrs
1. Load Life
Test Item Load Life Shelf Life
(after applying rated not exceed 200% of specified
voltage at 105oC) Leakage Current within the specified value
value
2. Shelf Life Dissipation Factor less than 200% of specified value
(no voltage applied at Capacitance within 25% of the initial value (for 16V or less)
105oC 1000 hours) Change within 20% of the initial value (for 25V or more)
Reference Standard Characteristics W of JIS C - 5141 and JIS C - 5102
Diagram of Dimensions Lead Spacing and Diameter
D 4 5 6.3
P 1.5 2.0 2.5
d 0.45
Unit: mm
Dimension & Permissible Ripple Current
Dimension: DxL(mm) Ripple current (mA/rms) at 105oC, 120Hz
W.V. 6.3 10 16 25 35 50
Cap. V. Code (006) (010) (016) (025) (035) (050)
Code
DxL mA DxL mA DxL mA DxL mA DxL mA DxL mA
104 0.1 4x7 1.3
224 0.22 4x7 2.9
334 0.33 4x7 3.5
474 0.47 4x7 5.0
105 1 4x7 10
225 2.2 4x7 15
335 3.3 4x7 18
475 4.7 4x7 19 4x7 20 5x7 23
106 10 4x7 25 5x7 28 5x7 30 6.3x7 34
226 22 4x7 33 5x7 39 5x7 41 6.3x7 47 6.3x7 53
336 33 5x7 43 5x7 46 6.3x7 53 6.3x7 62
476 47 4x7 42 5x7 51 6.3x7 61 6.3x7 68
107 100 5x7 68 6.3x7 80 6.3x7 92
227 220 6.3x7 92
