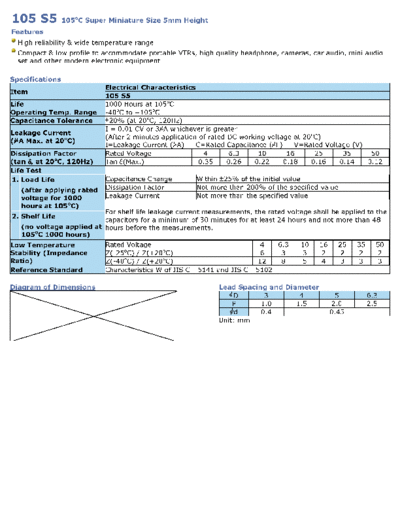

105 S5 105oC Super Miniature Size 5mm Height
Features
High reliability & wide temperature range
Compact & low profile to accommodate portable VTRs, high quality headphone, cameras, car audio, mini audio
set and other modern electronic equipment
Specifications
Electrical Characteristics
Item
105 S5
Life 1000 Hours at 105oC
Operating Temp. Range -40oC to +105oC
Capacitance Tolerance 20% (at 20oC, 120Hz)
I = 0.01 CV or 3 A whichever is greater
Leakage Current
(After 2 minutes application of rated DC working voltage at 20 oC)
( A Max. at 20oC)
I=Leakage Current ( A) C=Rated Capacitance ( F) V=Rated Voltage (V)
Dissipation Factor Rated Voltage 4 6.3 10 16 25 35 50
(tan , at 20oC, 120Hz) Tan (Max.) 0.35 0.26 0.22 0.18 0.16 0.14 0.12
Life Test
1. Load Life Capacitance Change Within 25% of the initial value
(after applying rated Dissipation Factor Not more than 200% of the specified value
voltage for 1000 Leakage Current Not more than the specified value
hours at 105oC)
For shelf life leakage current measurements, the rated voltage shall be applied to the
2. Shelf Life
capacitors for a minimum of 30 minutes for at least 24 hours and not more than 48
(no voltage applied at hours before the measurements.
105oC 1000 hours)
Low Temperature Rated Voltage 4 6.3 10 16 25 35 50
Stability (Impedance Z(-25oC) / Z(+20oC) 6 3 3 2 2 2 2
Ratio) Z(-40oC) / Z(+20oC) 12 8 5 4 3 3 3
Reference Standard Characteristics W of JIS C - 5141 and JIS C - 5102
Diagram of Dimensions Lead Spacing and Diameter
D 3 4 5 6.3
P 1.0 1.5 2.0 2.5
d 0.4 0.45
Unit: mm
Dimension & Permissible Ripple Current
Dimension: DxL(mm) Ripple current (mA/rms) at 105oC, 120Hz
W.V. 4 6.3 10 16 25 35 50
Cap. V. Code (004) (006) (010) (016) (025) (035) (050)
Code
DxL mA DxL mA DxL mA DxL mA DxL mA DxL mA DxL mA
3x5 1.0
104 0.1
4x5 1.0
3x5 2.6
224 0.22
4x5 2.6
3x5 3.2
334 0.33
4x5 3.2
3x5 3.8
474 0.47
4x5 3.8
3x5 5.9
105 1
4x5 6.2
3x5 9
225 2.2
4x5 11
3x5 9
335 3.3 4x5 14
4x5 11
3x5 10 3x5 12
475 4.7 4x5 19
4x5 13 4x5 15
3x5 14
106 10 4x5 22 5x5 25 6.3x5 30
4x5 18
226 22 4x5 22 4x5 27 5x5 30 5x5 35 6.3x5 42
336 33 4x5 27 5x5 30 5x5 35 5x5 38 6.3x5 48
476 47 4x5 33 5x5 38 5x5 42 6.3x5 50 6.3x5 60
107 100 5x5 55 6.3x5 60 6.3x5 64
