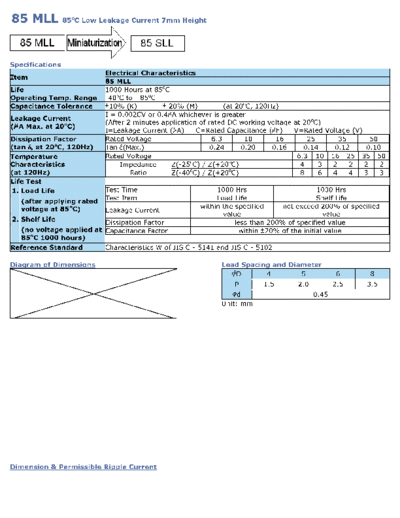

Image preview - the first page of the document
![Wincap [radial thru-hole] 85MLL Series](/pics/5c2e0d61d6874.gif)
>> Download Wincap [radial thru-hole] 85MLL Series documenatation <<
Text preview - extract from the document
85 MLL 85oC Low Leakage Current 7mm Height
Specifications
Electrical Characteristics
Item
85 MLL
Life 1000 Hours at 85oC
Operating Temp. Range -40oC to +85oC
Capacitance Tolerance 10% (K) 20% (M) (at 20oC, 120Hz)
I = 0.002CV or 0.4 A whichever is greater
Leakage Current
(After 2 minutes application of rated DC working voltage at 20 oC)
( A Max. at 20oC)
I=Leakage Current ( A) C=Rated Capacitance ( F) V=Rated Voltage (V)
Dissipation Factor Rated Voltage 6.3 10 16 25 35 50
(tan , at 20oC, 120Hz) Tan (Max.) 0.24 0.20 0.16 0.14 0.12 0.10
Temperature Rated Voltage 6.3 10 16 25 35 50
Characteristics Impedance Z(-25oC) / Z(+20oC) 4 3 2 2 2 2
(at 120Hz) Ratio Z(-40oC) / Z(+20oC) 8 6 4 4 3 3
Life Test
1. Load Life Test Time 1000 Hrs 1000 Hrs
(after applying rated Test Item Load Life Shelf Life
voltage at 85oC) within the specified not exceed 200% of specified
Leakage Current
value value
2. Shelf Life Dissipation Factor less than 200% of specified value
(no voltage applied at Capacitance Factor within 20% of the initial value
85oC 1000 hours)
Reference Standard Characteristics W of JIS C - 5141 and JIS C - 5102
Diagram of Dimensions Lead Spacing and Diameter
D 4 5 6 8
P 1.5 2.0 2.5 3.5
d 0.45
Unit: mm
Dimension & Permissible Ripple Current
Dimension: DxL(mm) Ripple current (mA/rms) at 85oC, 120Hz
W.V. 6.3 10 16 25 35 50
Cap. V. Code (006) (010) (016) (025) (035) (050)
Code
DxL mA DxL mA DxL mA DxL mA DxL mA DxL mA
104 0.1 4x7 1.0
224 0.22 4x7 2.3
334 0.33 4x7 3.5
474 0.47 4x7 5.0
105 1 4x7 10
225 2.2 4x7 19
335 3.3 4x7 24
475 4.7 4x7 22 4x7 24 5x7 29
106 10 4x7 29 4x7 32 5x7 36 6.3x7 44
226 22 4x7 37 4x7 42 5x7 48 6.3x7 57 6.3x7 62
336 33 4x7 40 5x7 47 5x7 55 6.3x7 63 6.3x7 70 8x7 78
476 47 4x7 48 5x7 57 6.3x7 68 6.3x7 75 8x7 82
107 100 5x7 75 6.3x7 90 8x7 107
227 220 6.3x7 125 8x7 138
