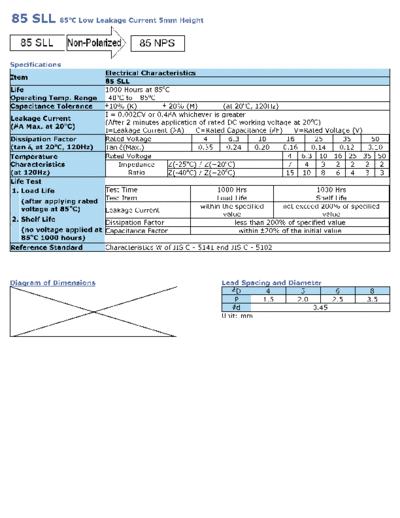

Image preview - the first page of the document
![Wincap [radial thru-hole] 85SLL Series](/pics/5c2e0d68cb8b3.gif)
>> Download Wincap [radial thru-hole] 85SLL Series documenatation <<
Text preview - extract from the document
85 SLL 85oC Low Leakage Current 5mm Height
Specifications
Electrical Characteristics
Item
85 SLL
Life 1000 Hours at 85oC
Operating Temp. Range -40oC to +85oC
Capacitance Tolerance 10% (K) 20% (M) (at 20oC, 120Hz)
I = 0.002CV or 0.4 A whichever is greater
Leakage Current
(After 2 minutes application of rated DC working voltage at 20 oC)
( A Max. at 20oC)
I=Leakage Current ( A) C=Rated Capacitance ( F) V=Rated Voltage (V)
Dissipation Factor Rated Voltage 4 6.3 10 16 25 35 50
(tan , at 20oC, 120Hz) Tan (Max.) 0.35 0.24 0.20 0.16 0.14 0.12 0.10
Temperature Rated Voltage 4 6.3 10 16 25 35 50
Characteristics Impedance Z(-25oC) / Z(+20oC) 7 4 3 2 2 2 2
(at 120Hz) Ratio Z(-40oC) / Z(+20oC) 15 10 8 6 4 3 3
Life Test
1. Load Life Test Time 1000 Hrs 1000 Hrs
(after applying rated Test Item Load Life Shelf Life
voltage at 85oC) within the specified not exceed 200% of specified
Leakage Current
value value
2. Shelf Life Dissipation Factor less than 200% of specified value
(no voltage applied at Capacitance Factor within 20% of the initial value
85oC 1000 hours)
Reference Standard Characteristics W of JIS C - 5141 and JIS C - 5102
Diagram of Dimensions Lead Spacing and Diameter
D 4 5 6 8
P 1.5 2.0 2.5 3.5
d 0.45
Unit: mm
Dimension & Permissible Ripple Current
Dimension: DxL(mm) Ripple current (mA/rms) at 85oC, 120Hz
W.V. 4 6.3 10 16 25 35 50
Cap. V. Code (004) (006) (010) (016) (025) (035) (050)
Code
DxL mA DxL mA DxL mA DxL mA DxL mA DxL mA DxL mA
104 0.1 4x5 1.0
224 0.22 4x5 2.0
334 0.33 4x5 2.8
474 0.47 4x5 4.0
105 1 4x5 8.4
225 2.2 4x5 13
335 3.3 4x5 17
475 4.7 4x5 16 4x5 18 5x5 20
106 10 4x5 23 5x5 27 5x5 29 6.3x5 33
226 22 4x5 28 4x5 33 5x5 37 6.3x5 42 6.3x5 46 8x5 55
336 33 4x5 28 4x5 33 5x5 41 5x5 47 6.3x5 52
476 47 5x5 33 5x5 45 5x5 50 6.3x5 58 6.3x5 65
107 100 5x5 55 6.3x5 70 6.3x5 79 8x5 92
227 220 6.3x5 82 8x5 101 8x5 112
