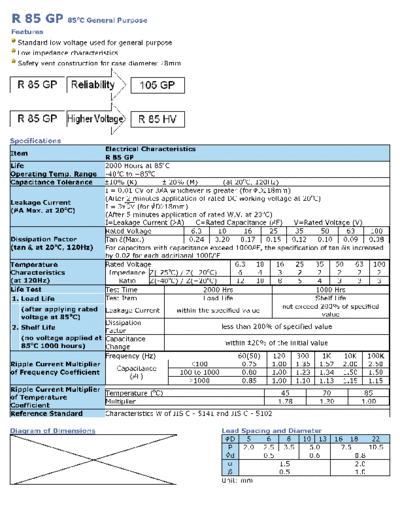

Image preview - the first page of the document
![Wincap [radial thru-hole] R85GP Series](/pics/5c2e0d7079c15.gif)
>> Download Wincap [radial thru-hole] R85GP Series documenatation <<
Text preview - extract from the document
R 85 GP 85oC General Purpose
Features
Standard low voltage used for general purpose
Low impedance characteristics
Safety vent construction for case diameter 8mm
Specifications
Electrical Characteristics
Item
R 85 GP
Life 2000 Hours at 85oC
Operating Temp. Range -40oC to +85oC
Capacitance Tolerance 10% (K) 20% (M) (at 20oC, 120Hz)
I = 0.01 CV or 3 A whichever is greater (for D 18mm)
(After 2 minutes application of rated DC working voltage at 20oC)
Leakage Current
I=3 (for D 18mm)
( A Max. at 20oC)
(After 5 minutes application of rated W.V. at 20 oC)
I=Leakage Current ( A) C=Rated Capacitance ( F) V=Rated Voltage (V)
Rated Voltage 6.3 10 16 25 35 50 63 100
Dissipation Factor Tan (Max.) 0.24 0.20 0.17 0.15 0.12 0.10 0.09 0.08
(tan , at 20oC, 120Hz) For capacitors with capacitance exceed 1000 F, the specification of tan is increased
by 0.02 for each additional 1000 F
Temperature Rated Voltage 6.3 10 16 25 35 50 63 100
o o
Characteristics Impedance Z(-25 C) / Z(+20 C) 6 4 3 2 2 2 2 2
(at 120Hz) Ratio Z(-40oC) / Z(+20oC) 12 10 8 5 4 3 3 3
Life Test Test Time 2000 Hrs 1000 Hrs
1. Load Life Test Item Load Life Shelf Life
(after applying rated Leakage Current not exceed 200% of specified
within the specified value
o
voltage at 85 C) value
Dissipation
2. Shelf Life less than 200% of specified value
Factor
(no voltage applied at Capacitance
85oC 1000 hours) within 20% of the initial value
Change
Frequency (Hz) 60(50) 120 300 1K 10K 100K
Ripple Current Multiplier 100 0.75 1.00 1.35 1.57 2.00 2.50
Capacitance
of Frequency Coefficient 100 to 1000 0.80 1.00 1.23 1.34 1.50 1.50
( F)
1000 0.85 1.00 1.10 1.13 1.15 1.15
Ripple Current Multiplier
Temperature (oC) 45 70 85
of Temperature
Multiplier 1.78 1.30 1.00
Coefficient
Reference Standard Characteristics W of JIS C - 5141 and JIS C - 5102
Diagram of Dimensions Lead Spacing and Diameter
D 5 6 8 10 13 16 18 22
P 2.0 2.5 3.5 5.0 7.5 10.5
d 0.5 0.6 0.8
1.5 2.0
0.5 1.0
Unit: mm
Dimension & Permissible Ripple Current
Dimension: DxL(mm) Ripple current (mA/rms) at 85oC, 120Hz
W.V. 6.3 10 16 25
Cap. V. Code (006) (010) (016) (025)
Code
DxL mA DxL mA DxL mA DxL mA
106 10 5x11 44 5x11 54
226 22 5x11 79 5x11 96
336 33 5x11 84 5x11 92 5x11 110
476 47 5x11 100 5x11 110 5x11 130
107 100 5x11 170 6x11 180 6x11 185
227 220 5x11 240 6x11 270 6x11 305 8x12 330
337 330 6x11 300 6x11 330 8x12 375 10x13 470
477 470 6x11 380 8x12 430 8x12 470 10x13 540
108 1000 8x12 580 10x13 630 10x16 790 10x21 950
228 2200 10x21 1050 10x21 1100 13x21 1350 13x26 1550
338 3300 13x21 1250 13x21 1400 13x26 1700 16x25 1950
478 4700 13x26 1700 13x26 1800 16x25 2100 16x32 2360
688 6800 13x26 1900 16x25 2150 16x36 2500 18x36 2550
109 10000 16x32 2320 18x36 2650 18x36 2700 22x40 2850
129 12000 16x36 2450 18x36 2860 22x40 2980 22x40 3100
159 15000 18x36 2880 18x36 2900 22x40 3150 22x40 3250
189 18000 18x36 3060 18x40 3120 22x40 3450
229 22000 18x40 3650 22x40 3700 22x40 3800
W.V. 35 50 63 100
Cap. V. Code (035) (050) (063) (100)
Code
DxL mA DxL mA DxL mA DxL mA
104 0.1 5x11 1.3 5x11 2.6
224 0.22 5x11 2.9 5x11 5.8
334 0.33 5x11 4.4 5x11 8.8
474 0.47 5x11 7 5x11 12
105 1 5x11 13 5x11 22
225 2.2 5x11 29 5x11 33
335 3.3 5x11 35 5x11 42
475 4.7 5x11 42 5x11 48 6x11 53
106 10 5x11 60 5x11 69 5x11 74 6x11 80
226 22 5x11 100 5x11 105 6x11 115 8x12 135
336 33 5x11 115 6x11 125 6x11 140 10x13 180
476 47 5x11 140 6x11 150 8x12 190 10x16 240
107 100 8x12 240 8x12 250 10x13 320 10x21 400
227 220 10x13 420 10x16 460 10x16 490 13x26 710
337 330 10x13 490 10x16 585 10x21 680 16x25 900
477 470 10x21 740 13x21 860 13x26 950 16x32 1250
108 1000 13x21 1100 13x26 1350 16x25 1550 18x40 1750
228 2200 16x25 1800 16x36 2090 18x40 2200 22x40 2300
338 3300 16x36 2220 18x40 2400 22x40 2560
478 4700 18x36 2400 22x40 2800
688 6800 22x40 2800
