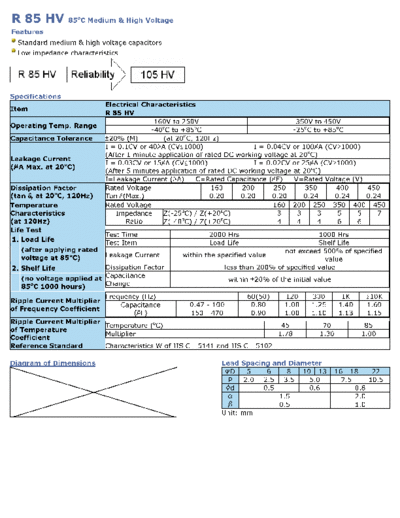

Image preview - the first page of the document
![Wincap [radial thru-hole] R85HV Series](/pics/5c2e0d7686b1d.gif)
>> Download Wincap [radial thru-hole] R85HV Series documenatation <<
Text preview - extract from the document
R 85 HV 85oC Medium & High Voltage
Features
Standard medium & high voltage capacitors
Low impedance characteristics
Specifications
Electrical Characteristics
Item
R 85 HV
160V to 250V 350V to 450V
Operating Temp. Range
-40oC to +85oC -25oC to +85oC
Capacitance Tolerance 20% (M) (at 20oC, 120Hz)
I = 0.1CV or 40 A (CV 1000) I = 0.04CV or 100 A (CV 1000)
(After 1 minute application of rated DC working voltage at 20 oC)
Leakage Current
I = 0.03CV or 15 A (CV 1000) I = 0.02CV or 25 A (CV 1000)
( A Max. at 20oC)
(After 5 minutes application of rated DC working voltage at 20 oC)
I=Leakage Current ( A) C=Rated Capacitance ( F) V=Rated Voltage (V)
Dissipation Factor Rated Voltage 160 200 250 350 400 450
(tan , at 20oC, 120Hz) Tan (Max.) 0.20 0.20 0.20 0.24 0.24 0.24
Temperature Rated Voltage 160 200 250 350 400 450
Characteristics Impedance Z(-25oC) / Z(+20oC) 3 3 3 5 5 7
(at 120Hz) Ratio Z(-40oC) / Z(+20oC) 4 4 4 6 6 -
Life Test
Test Time 2000 Hrs 1000 Hrs
1. Load Life
Test Item Load Life Shelf Life
(after applying rated not exceed 500% of specified
voltage at 85oC) Leakage Current within the specified value
value
2. Shelf Life Dissipation Factor less than 200% of specified value
(no voltage applied at Capacitance within 20% of the initial value
85oC 1000 hours) Change
Frequency (Hz) 60(50) 120 300 1K 10K
Ripple Current Multiplier
Capacitance 0.47 - 100 0.80 1.00 1.25 1.40 1.60
of Frequency Coefficient
( F) 150 - 470 0.90 1.00 1.10 1.13 1.15
Ripple Current Multiplier
Temperature (oC) 45 70 85
of Temperature
Multiplier 1.78 1.30 1.00
Coefficient
Reference Standard Characteristics W of JIS C - 5141 and JIS C - 5102
Diagram of Dimensions Lead Spacing and Diameter
D 5 6 8 10 13 16 18 22
P 2.0 2.5 3.5 5.0 7.5 10.5
d 0.5 0.6 0.8
1.5 2.0
0.5 1.0
Unit: mm
Dimension & Permissible Ripple Current
Dimension: DxL(mm) Ripple current (mA/rms) at 85oC, 120Hz
W.V. 160 200 250 350 400 450
Cap. V. Code (160) (200) (250) (350) (400) (450)
Code
DxL mA DxL mA DxL mA DxL mA DxL mA DxL mA
474 0.47 5x11 12 5x11 12 5x11 12 5x11 14 6x11 14 6x11 14
105 1 5x11 17 5x11 17 6x11 17 6x11 20 8x12 22 8x12 22
225 2.2 6x11 26 6x11 26 8x12 30 8x12 30 10x13 39 10x13 39
335 3.3 8x12 36 8x12 36 10x13 45 10x13 49 10x13 53 10x16 56
475 4.7 8x12 44 8x12 46 10x13 51 10x13 53 10x16 65 10x16 68
685 6.8 10x13 65 10x13 67 10x13 70 10x16 73 10x21 83 10x21 88
106 10 10x13 80 10x13 83 10x16 90 10x21 105 13x21 115 13x26 120
156 15 10x13 95 10x16 105 10x21 115 13x21 135 13x26 160 16x25 170
226 22 10x16 130 10x16 130 10x21 140 13x21 160 16x25 200 16x32 210
336 33 10x21 170 10x21 170 13x21 190 13x26 220 16x25 250 16x36 265
476 47 13x21 220 13x26 230 13x26 260 16x25 280 16x36 325 18x40 350
686 68 13x26 280 13x26 320 16x25 350 16x32 410 18x36 420 22x40 440
107 100 16x25 380 16x25 380 16x32 400 18x36 460 22x40 500
157 150 16x32 470 16x36 500 18x40 520 22x40 580
227 220 16x32 550 18x36 640 22x40 760
337 330 18x40 850 22x40 920
477 470 18x40 890 22x40 980
