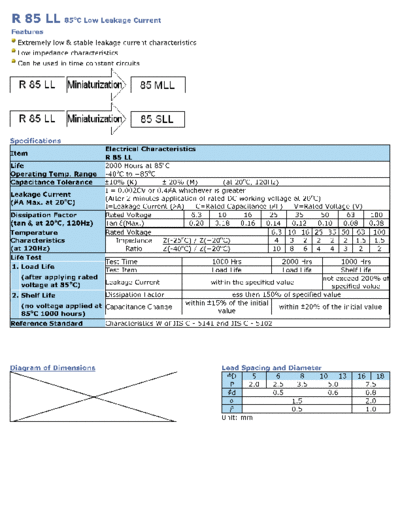

R 85 LL 85oC Low Leakage Current
Features
Extremely low & stable leakage current characteristics
Low impedance characteristics
Can be used in time constant circuits
Specifications
Electrical Characteristics
Item
R 85 LL
Life 2000 Hours at 85oC
Operating Temp. Range -40oC to +85oC
Capacitance Tolerance 10% (K) 20% (M) (at 20oC, 120Hz)
I = 0.002CV or 0.4 A whichever is greater
Leakage Current
(After 2 minutes application of rated DC working voltage at 20 oC)
( A Max. at 20oC)
I=Leakage Current ( A) C=Rated Capacitance ( F) V=Rated Voltage (V)
Dissipation Factor Rated Voltage 6.3 10 16 25 35 50 63 100
(tan , at 20oC, 120Hz) Tan (Max.) 0.20 0.18 0.16 0.14 0.12 0.10 0.08 0.08
Temperature Rated Voltage 6.3 10 16 25 35 50 63 100
Characteristics Impedance Z(-25oC) / Z(+20oC) 4 3 2 2 2 2 1.5 1.5
(at 120Hz) Ratio Z(-40oC) / Z(+20oC) 10 8 6 4 4 3 2 2
Life Test
Test Time 1000 Hrs 2000 Hrs 1000 Hrs
1. Load Life
Test Item Load Life Load Life Shelf Life
(after applying rated not exceed 200% of
voltage at 85oC) Leakage Current within the specified value
specified value
2. Shelf Life Dissipation Factor less than 150% of specified value
(no voltage applied at Capacitance Change within 15% of the initial
within 20% of the initial value
85oC 1000 hours) value
Reference Standard Characteristics W of JIS C - 5141 and JIS C - 5102
Diagram of Dimensions Lead Spacing and Diameter
D 5 6 8 10 13 16 18
P 2.0 2.5 3.5 5.0 7.5
d 0.5 0.6 0.8
1.5 2.0
0.5 1.0
Unit: mm
Dimension & Permissible Ripple Current
Dimension: DxL(mm) Ripple current (mA/rms) at 85oC, 120Hz
W.V. 6.3 10 16 25
Cap. V. Code (006) (010) (016) (025)
Code
DxL mA DxL mA DxL mA DxL mA
475 4.7 5x11 45
685 6.8 5x11 55
106 10 5x11 55 5x11 70
156 15 5x11 70 5x11 85
226 22 5x11 85 5x11 100
336 33 5x11 100 6x11 140
476 47 5x11 110 5x11 130 6x11 170
686 68 5x11 140 6x11 160 8x12 230
107 100 6x11 180 6x11 210 8x12 280
157 150 6x11 240 8x12 280 8x12 350
227 220 6x11 280 8x12 350 10x13 380
337 330 8x12 360 10x13 400 10x16 460
477 470 8x12 350 8x12 430 10x13 480 10x21 600
687 680 10x13 440 10x16 570 10x11 690 13x21 780
108 1000 10x16 600 10x16 700 10x21 800 13x26 910
158 1500 13x21 850 13x21 960 13x26 1000 16x25 1150
228 2200 13x21 980 13x26 1080 16x25 1300 16x32 1400
338 3300 13x26 1120 16x25 1360 16x32 1500 18x36 1680
478 4700 16x32 1500 16x36 1650 18x36 1820
688 6800 16x36 1680 18x36 1890
W.V. 35 50 63 100
Cap. V. Code (035) (050) (063) (100)
Code
DxL mA DxL mA DxL mA DxL mA
104 0.1 5x11 1.1 5x11 2.1
154 0.15 5x11 1.6 5x11 3.2
224 0.22 5x11 2.3 5x11 4.7
334 0.33 5x11 3.5 5x11 7.0
474 0.47 5x11 5.0 5x11 10
684 0.68 5x11 7.5 5x11 15
105 1 5x11 11 5x11 15 5x11 19
155 1.5 5x11 16 5x11 20 5x11 23
225 2.2 5x11 23 5x11 26 5x11 28
335 3.3 5x11 40 5x11 43 5x11 45
475 4.7 5x11 45 5x11 45 6x11 50 6x11 55
685 6.8 5x11 55 5x11 55 6x11 59 6x11 65
106 10 5x11 70 5x11 70 6x11 75 8x12 90
156 15 5x11 85 6x11 95 6x11 100 8x12 110
226 22 6x11 110 6x11 110 8x12 115 10x13 136
336 33 6x11 140 8x12 165 8x12 170 10x16 180
476 47 6x11 180 8x12 190 10x13 200 10x21 220
686 68 8x12 230 10x13 250 10x16 270 10x21 290
107 100 8x12 280 10x13 300 10x16 320 13x21 370
157 150 10x13 380 10x16 400 13x21 450 13x26 470
227 220 10x16 420 10x21 460 13x21 550 16x25 580
337 330 10x21 520 13x21 600 13x26 710 16x32 730
477 470 13x21 650 13x26 700 16x25 850 18x36 910
687 680 13x26 800 16x25 910 16x32 1050 18x36 1220
108 1000 16x25 1100 16x32 1140 18x36 1330
158 1500 16x32 1300 18x36 1400
228 2200 18x36 1580
