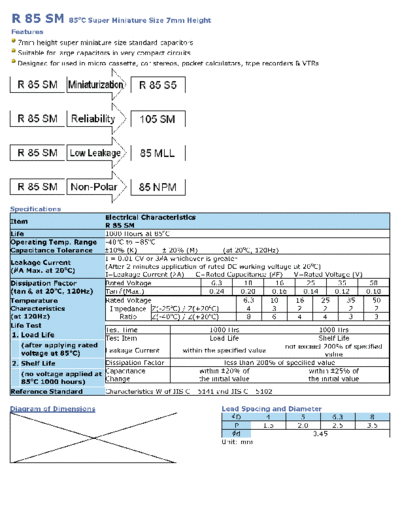

Image preview - the first page of the document
![Wincap [radial thru-hole] R85SM Series](/pics/5c2e0d84be5c1.gif)
>> Download Wincap [radial thru-hole] R85SM Series documenatation <<
Text preview - extract from the document
R 85 SM 85oC Super Miniature Size 7mm Height
Features
7mm height super miniature size standard capacitors
Suitable for large capacitors in very compact circuits
Designed for used in micro-cassette, car stereos, pocket calculators, tape recorders & VTRs
Specifications
Electrical Characteristics
Item
R 85 SM
Life 1000 Hours at 85oC
Operating Temp. Range -40oC to +85oC
Capacitance Tolerance 10% (K) 20% (M) (at 20oC, 120Hz)
I = 0.01 CV or 3 A whichever is greater
Leakage Current
(After 2 minutes application of rated DC working voltage at 20 oC)
( A Max. at 20oC)
I=Leakage Current ( A) C=Rated Capacitance ( F) V=Rated Voltage (V)
Dissipation Factor Rated Voltage 6.3 10 16 25 35 50
(tan , at 20oC, 120Hz) Tan (Max.) 0.24 0.20 0.16 0.14 0.12 0.10
Temperature Rated Voltage 6.3 10 16 25 35 50
Characteristics Impedance Z(-25oC) / Z(+20oC) 4 3 2 2 2 2
o o
(at 120Hz) Ratio Z(-40 C) / Z(+20 C) 8 6 4 4 3 3
Life Test
Test Time 1000 Hrs 1000 Hrs
1. Load Life
Test Item Load Life Shelf Life
(after applying rated not exceed 200% of specified
voltage at 85oC) Leakage Current within the specified value
value
2. Shelf Life Dissipation Factor less than 200% of specified value
(no voltage applied at Capacitance within 20% of within 25% of
85oC 1000 hours) Change the initial value the initial value
Reference Standard Characteristics W of JIS C - 5141 and JIS C - 5102
Diagram of Dimensions Lead Spacing and Diameter
D 4 5 6.3 8
P 1.5 2.0 2.5 3.5
d 0.45
Unit: mm
Dimension & Permissible Ripple Current
Dimension: DxL(mm) Ripple current (mA/rms) at 85oC, 120Hz
W.V. 6.3 10 16 25 35 50
Cap. V. Code (006) (010) (016) (025) (035) (050)
Code
DxL mA DxL mA DxL mA DxL mA DxL mA DxL mA
104 0.1 4x7 1.3
224 0.22 4x7 2.9
334 0.33 4x7 3.5
474 0.47 4x7 5.0
105 1 4x7 10
225 2.2 4x7 15
335 3.3 4x7 18
475 4.7 4x7 23
106 10 4x7 25 4x7 28 4x7 31 5x7 34
4x7 41
226 22 4x7 35 4x7 39 5x7 52 6.3x7 64
5x7 43
4x7 44
336 33 4x7 43 5x7 58 6.3x7 68 6.3x7 75
5x7 47
5x7 67 8x7 110
476 47 4x7 51 5x7 65 6.3x7 83
6.3x7 71 8x9 130
8x7 125
107 100 5x7 83 6.3x7 110 8x9 190
8x9 145
8x7 175
227 220 6.3x7 130 6.3x7 145 8x9 245
8x9 200
8x7 185
337 330 8x9 230 8x9 270
8x9 210
8x7 240
477 470 8x9 330
8x9 275
