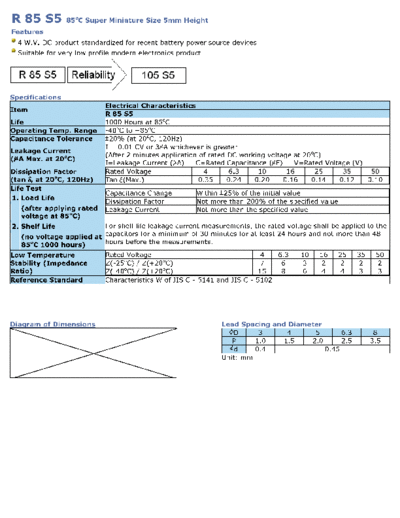

Image preview - the first page of the document
![Wincap [radial thru-hole] R85S5 Series](/pics/5c2e0d8b4e0db.gif)
>> Download Wincap [radial thru-hole] R85S5 Series documenatation <<
Text preview - extract from the document
R 85 S5 85oC Super Miniature Size 5mm Height
Features
4 W.V. DC product standardized for recent battery power source devices
Suitable for very low profile modern electronics product
Specifications
Electrical Characteristics
Item
R 85 S5
Life 1000 Hours at 85oC
Operating Temp. Range -40oC to +85oC
Capacitance Tolerance 20% (at 20oC, 120Hz)
I = 0.01 CV or 3 A whichever is greater
Leakage Current
(After 2 minutes application of rated DC working voltage at 20 oC)
( A Max. at 20oC)
I=Leakage Current ( A) C=Rated Capacitance ( F) V=Rated Voltage (V)
Dissipation Factor Rated Voltage 4 6.3 10 16 25 35 50
(tan , at 20oC, 120Hz) Tan (Max.) 0.35 0.24 0.20 0.16 0.14 0.12 0.10
Life Test
Capacitance Change Within 25% of the initial value
1. Load Life
Dissipation Factor Not more than 200% of the specified value
(after applying rated Leakage Current Not more than the specified value
voltage at 85oC)
2. Shelf Life For shelf life leakage current measurements, the rated voltage shall be applied to the
(no voltage applied at capacitors for a minimum of 30 minutes for at least 24 hours and not more than 48
85oC 1000 hours) hours before the measurements.
Low Temperature Rated Voltage 4 6.3 10 16 25 35 50
Stability (Impedance Z(-25oC) / Z(+20oC) 7 6 3 2 2 2 2
Ratio) Z(-40oC) / Z(+20oC) 15 8 6 4 4 3 3
Reference Standard Characteristics W of JIS C - 5141 and JIS C - 5102
Diagram of Dimensions Lead Spacing and Diameter
D 3 4 5 6.3 8
P 1.0 1.5 2.0 2.5 3.5
d 0.4 0.45
Unit: mm
Dimension & Permissible Ripple Current
Dimension: DxL(mm) Ripple current (mA/rms) at 85oC, 120Hz
W.V. 4 6.3 10 16 25 35 50
Cap. V. Code (004) (006) (010) (016) (025) (035) (050)
Code
DxL mA DxL mA DxL mA DxL mA DxL mA DxL mA DxL mA
3x5 1.0
104 0.1
4x5 1.0
3x5 2.6
224 0.22
4x5 2.6
3x5 3.2
334 0.33
4x5 3.2
3x5 4.0
474 0.47
4x5 4.0
3x5 8.0
105 1
4x5 8.4
3x5 10
225 2.2
4x5 13
3x5 10
335 3.3 3x5 10 4x5 17
4x5 15
3x5 12 3x5 15
475 4.7 3x5 10 4x5 21
4x5 16 4x5 18
3x5 18 5x5 31
106 10 3x5 16 4x5 25 5x5 29
4x5 23 6.3x5 33
4x5 35 5x5 43
226 22 3x5 24 4x5 33 5x5 40 6.3x5 48
5x5 37 6.3x5 46
4x5 39 5x5 48
336 33 4x5 28 4x5 37 5x5 43 6.3x5 52 8x5 71
5x5 41 6.3x5 52
5x5 52 6.3x5 75
476 47 4x5 33 5x5 45 5x5 48 6.3x5 68 8x5 92
6.3x5 58 8x5 80
107 100 5x5 56 5x5 68 6.3x5 79 6.3x5 90 8x5 100
6.3x5 98
227 220 6.3x5 96 8x5 135 8x5 155
8x5 110
337 300 8x5 145 8x5 170
477 470 8x5 185
