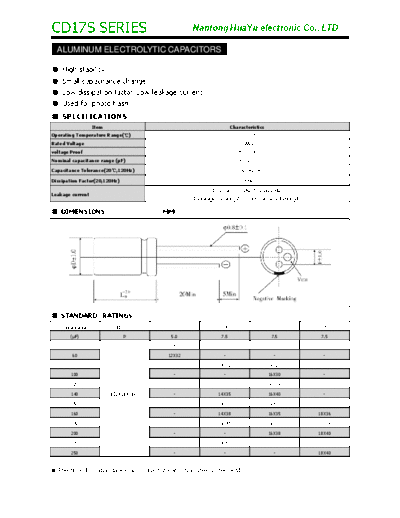

Image preview - the first page of the document
TF Hua-Yu [radial thru-hole] CD17S Series


>> Download TF Hua-Yu [radial thru-hole] CD17S Series documenatation <<

Text preview - extract from the document
CD17S SERIES                                    Nantong HuaYu electronic Co., LTD

AALUMINUM ELECTROLYTIC CAPACITORSS

 High stability
 Small capacitance change
 Low dissipation factor, Low leakage current
 Used for photo flash
 SPECIFICATIONS
                  Item                                            Characteristics
Operating Temperature Range()                                        -20~+55
Rated Voltage                                                       330WV.DC
voltage Proof                                                        350SV.DC
Nominal capacitance range (F)                                         40~250

Capacitance Tolerance(20,120Hz)                                    -10%~+20%

Dissipation Factor(20,120Hz)                                         0.06MAX

                                                        I=1xC(at 20,after 5minutes)Max
Leakage current
                                                I=Leakage Current (A) C: Nominal Capacitance (F)


 DIMENSIONS                           MM




 STANDARD RATINGS
    Capacitance           D(mm)          12                 14                       16             18

       (F)                     P        5.0                 7.5                      7.5            7.5

        40                             12X25                 -                        -              -

        60                             12X32                 -                        -              -

        80                               -                 14X32                    16X25            -

        100                              -                   -                      16X30            -

        120                              -                   -                      16X 36           -

        140              DXL(mm)         -                 14X35                    16X40            -

        150                              -                 14X39                    16X35            -

        160                              -                 14X38                    16X35          18X36

        180                              -                 14X45                    16X38          18X36

        200                              -                   -                      16X38          18X40

        220                              -                 14X52                      -              -

        250                              -                   -                        -            18X40


 The specific capacitance and case size are available on request.
