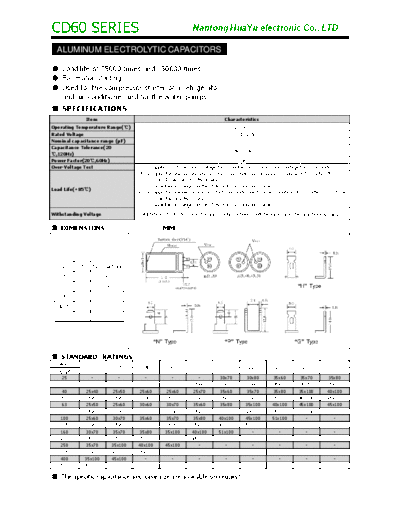

Image preview - the first page of the document
![TF Hua-Yu [screw-terminal] CD60 Series](/pics/5c2e0e2b3e6e1.gif)
>> Download TF Hua-Yu [screw-terminal] CD60 Series documenatation <<
Text preview - extract from the document
CD60 SERIES Nantong HuaYu electronic Co., LTD
AALUMINUM ELECTROLYTIC CAPACITORSS
Load life of 75000 times and 30000 times
For motor starting
Used for the compressor starter of a refrigerator
and air-conditioner and for the water pumps
SPECIFICATIONS
Item Characteristics
Operating Temperature Range() -20~+70
Rated Voltage 110~300V,AC
Nominal capacitance range (F) 25~500
Capacitance Tolerance(20
0%~20%
,120Hz)
Power Factor(20,60Hz) 0.08
Over-Voltage Test Applied 1.2 times rated voltage for 2 minutes or 1.4 times rated voltage for 30 seconds.
125VAC:Apply for one, second and rest for 29 seconds, two times per minute at +70 after 75000
times. Power factor:20% or less.
Capacitance change: Within 25% of initial measured value.
Load Life(+85)
160VAC:Apply for one second and rest for 59 seconds, one time per minute at +70 after 30000 times.
Power factor:20% or less.
Capacitance change: Within 25% of initial measured value.
Withstanding Voltage Withstand 1500V, AC(r.m.s) for one minutes between both terminals and the case holding clamp.
DIMENSIONS MM
D A Terminal Type
25 10 H
30 10 G,H
35 12 G,N,P
40,45 16 G,N,P
51 20 G,N,P
STANDARD RATINGS
WV(V)
110 125 140 160 180 200 220 250 280 300
Cap(F)
25 - - - - - 30x70 30x80 35x60 35x70 35x80
30 - - - - 25x60 30x80 35x60 35x70 35x80 35x100
40 25x40 25x50 25x60 25x60 25x70 35x60 35x70 35x80 35x100 40x100
50 25x50 25x50 25x60 25x70 30x70 35x70 35x80 35x100 40x100 45x100
63 25x50 25x60 30x60 30x70 35x60 35x80 35x100 40x100 45x100 45x100
80 25x60 30x60 30x70 35x60 35x70 35x100 40x100 45x100 51x100 -
100 25x60 30x70 35x60 35x70 35x80 40x100 45x100 51x100 - -
125 30x60 35x60 35x70 35x80 35x100 45x100 51x100 - - -
160 30x70 35x70 35x80 35x100 40x100 51x100 - - - -
200 35x70 35x80 35X100 40x100 45x100 - - - - -
250 35x70 35x100 40x100 45x100 - - - - - -
315 30x80 40x100 45x100 - - - - - - -
400 35x100 45x100 - - - - - - - -
500 40x100 - - - - - - - - -
The specific capacitance and case size are available on request.
