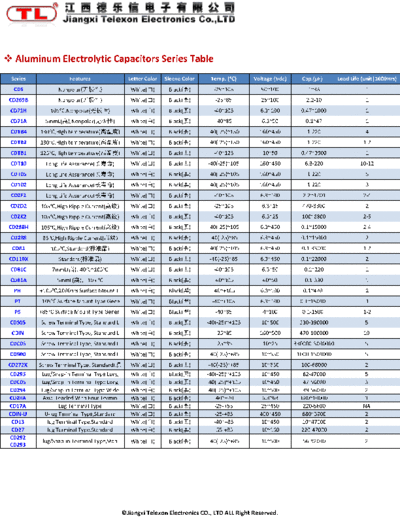

Image preview - the first page of the document
>> Download TL (2011) Series Table documenatation <<
Text preview - extract from the document
Aluminum Electrolytic Capacitors Series Table
Series Features Letter Color Sleeve Color Temp. () Voltage (Vdc) Cap.(F) Load Life (unit|1000Hrs)
CDS Nonpolar() White() Black() -25~105 50~100 1~33 1
CD269B Nonpolar() White() Black() -25~85 25~100 2.2-10 1
CD71H 105,Nonpolar() White() Black() -40~105 6.3~100 0.47~1000 1
CD71A 5mmL(),Nonpolar() White() Black() -40~85 6.3~50 0.1~47 1
CDTB4 130,High temperature() White() Black() -40(-25)~130 160~450 1-220 4
CDTB2 130,High temperature() White() Black() -40(-25)~130 160~450 1-220 1-2
CDTB1 125,High temperature() White() Black() -40~125 10~50 0.47~3900 1
CDT10 Long Life Assurance() White() Black() -40(-25)~105 160~450 6.8-220 10-12
CDT05 Long Life Assurance() White() Black() -40(-25)~105 160~450 1-220 5
CDT02 Long Life Assurance() White() Black() -40(-25)~105 160~450 1-220 3
CDZF2 Long Life Assurance() White() Black() -40~105 6.3~100 2.2~4700 2-4
CDZD2 105,High Ripple Current() White() Black() -25~105 6.3~16 470-3300 2
CDZK2 105,High Ripple Current() White() Black() -40~105 6.3~25 100~6800 2-5
CD288H 105,High Ripple Current() White() Black() -40(-25)~105 6.3~450 0.1~15000 2-4
CD288 85,High Ripple Current() White() Black() -40(-25)~85 6.3~450 0.1~15000 2
CD81 105,Standard() White() Black() -40(-25)~105 6.3~450 0.1-33000 1-2
CD110X Standard() White() Black() -40(-25)~85 6.3~450 0.1~22000 2
CD81C 7mmL(),-40~105 White() Black() -40~105 6.3~50 0.1~220 1
CD81A 5mmL()105 White() Black() -40~105 40~50 0.1-330 1
PH +105,2000hrs Surface Mount T White() Black() -40~+105 6.3~100 0.1~470 2
PT +105 Surface Mount Type Gene White() Black() -40~+105 6.3~100 0.1~15000 1
PS +85 Surface Mount Type Gener White() Black() -40~85 4~100 0.1-1500 1-2
CDS05 Screw Terminal Type, Standard L White() Black() -40(-25)~+105 10~500 330-390000 5
CDIN Screw Terminal Type, Standard L White() Black() -25~85 160~500 470-100000 10
CDC06 Screw Terminal Type, Standard L White() Black() -25~85 10~25 330000-3000000 5
CD500 Screw Terminal Type, Standard L White() Black() -40(-25)~+85 10~550 1000-1500000 5
CD272X Screw Terminal Type, Standard( White() Black() -40(-25)~+85 10~630 100-68000 2
CD295 Lug/Snap-in Terminal Type Long White() Black() -40(-25)~+105 10~450 82-47000 5
CDC05 Lug/Snap-in Terminal Type Long White() Black() -40(-25)~+105 10~450 47-56000 3
CD294 Lug/Snap-in Terminal Type Wide White() Black() -40(-25)~+105 10~500 39-56000 2
CD28A Axial Leacled With Four Termin White() Black() -40~+70 6.3~63 680~10000 1
CD17A Lug Terminal Type White() Black() -25-+55 25~450 220-5600 NA
CDIN-U U-lug Terminal Type,Standard White() Black() -25-+85 400~450 680~3900 2
CD13 lug Terminal Type,Standard White() Black() -40~+85 10~450 10~47000 2
CD27 lug Terminal Type,Standard White() Black() -55-+85 10~160 220-47000 2
CD292
lug/Snap-in Terminal Type,Stan White() Black() -40(-25)~+85 10~500 56-82000 2
