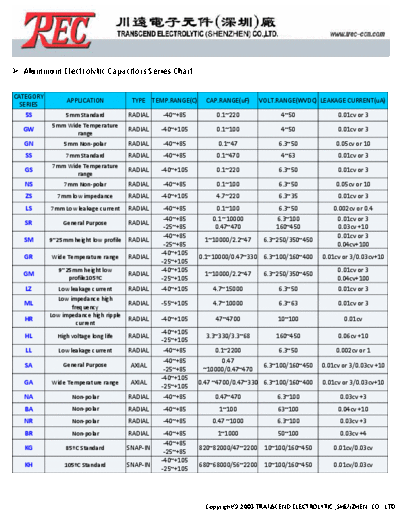

Image preview - the first page of the document
>> Download TREC Series Table documenatation <<Text preview - extract from the document Aluminum Electrolytic Capacitors Series Chart
CATEGORY
APPLICATION TYPE TEMP.RANGE(C) CAP.RANGE(uF) VOLT.RANGE(WVDC) LEAKAGE CURRENT(uA)
SERIES
5S 5mm Standard RADIAL -40~+85 0.1~220 4~50 0.01cv or 3
5mm Wide Temperature
GW RADIAL -40~+105 0.1~100 4~50 0.01cv or 3
range
GN 5mm Non-polar RADIAL -40~+85 0.1~47 6.3~50 0.05cv or 10
SS 7mm Standard RADIAL -40~+85 0.1~470 4~63 0.01cv or 3
7mm Wide Temperature
GS RADIAL -40~+105 0.1~220 6.3~50 0.01cv or 3
range
NS 7mm Non-polar RADIAL -40~+85 0.1~100 6.3~50 0.05cv or 10
ZS 7mm low impedance RADIAL -40~+105 4.7~220 6.3~35 0.01cv or 3
LS 7mm Low leakage current RADIAL -40~+85 0.1~100 6.3~50 0.002cv or 0.4
-40~+85 0.1 ~10000 6.3~100 0.01cv or 3
SR General Purpose RADIAL
-25~+85 0.47~470 160~450 0.03cv +10
-40~+85 0.01cv or 3
SM 9~25mm height low profile RADIAL 1~10000/2.2~47 6.3~250/350~450
-25~+85 0.04cv+100
-40~+105
GR Wide Temperature range RADIAL 0.1~10000/0.47~330 6.3~100/160~400 0.01cv or 3/0.03cv+10
-25~+105
9~25mm height low -40~+105 0.01cv or 3
GM RADIAL 1~10000/2.2~47 6.3~250/350~450
profile105
