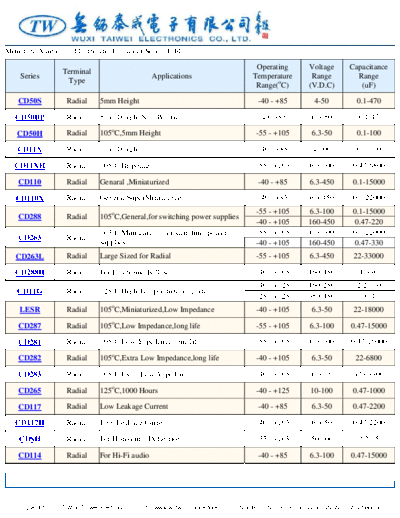

Image preview - the first page of the document
>> Download TW Series Table documenatation <<
Text preview - extract from the document
Miniature Aluminum Electrolytic Capacitor Series Table
Operating Voltage Capacitance
Terminal
Series Applications Temperature Range Range
Type
Range(oC) (V.D.C) (uF)
CD50S Radial 5mm Height -40 - +85 4-50 0.1-470
CD50BP Radial 5mm Height Non Polarize -40- +85 6.3-50 0.1-47
CD50H Radial 105oC,5mm Height -55 - +105 6.3-50 0.1-100
CD11X Radial 7mm Height -40 - +85 4-100 0.1-330
CD11XH Radial 105oC,Bi-pollar -55 - +105 6.3-100 0.47-6800
CD110 Radial Genaral ,Miniaturized -40 - +85 6.3-450 0.1-15000
CD110X Radial General,SuperMiniaturize -40 - +85 6.3-450 0.1-22000
-55 - +105 6.3-100 0.1-15000
CD288 Radial 105oC,General,for switching power supplies
-40 - +105 160-450 0.47-220
105oC,Miniaturized,for switching power -55 - +105 6.3-100 0.1-22000
CD263 Radial
supplies -40 - +105 160-450 0.47-330
CD263L Radial Large Sized for Radial -55 - +105 6.3-450 22-33000
CD288H Radial For Electronic Ballast -40 - +105 160-450 1-330
-40 - +125 160-250 2.2-330
CD11G Radial 125oC,High Temperature,long life
-25 - +125 350-450 1.0-47
LESR Radial 105oC,Miniaturized,Low Impedance -40 - +105 6.3-50 22-18000
CD287 Radial 105oC,Low Impedance,long life -55 - +105 6.3-100 0.47-15000
CD281 Radial 105oC,Low Impedance,long life -55 - +105 6.3-100 0.47-15000
CD282 Radial 105oC,Extra Low Impedance,long life -40 - +105 6.3-50 22-6800
CD283 Radial 105oC,Extra Low Impedance -40 - +105 6.3-16 470-3300
CD265 Radial 125oC,1000 Hours -40 - +125 10-100 0.47-1000
CD117 Radial Low Leakage Current -40 - +85 6.3-50 0.47-2200
CD117H Radial Low Leakage Current -40 - +105 6.3-50 0.47-2200
CDSH Radial For Horizontal Deflection -55 - +105 50,100 2.2-15
CD114 Radial For Hi-Fi audio -40 - +85 6.3-100 0.47-15000
