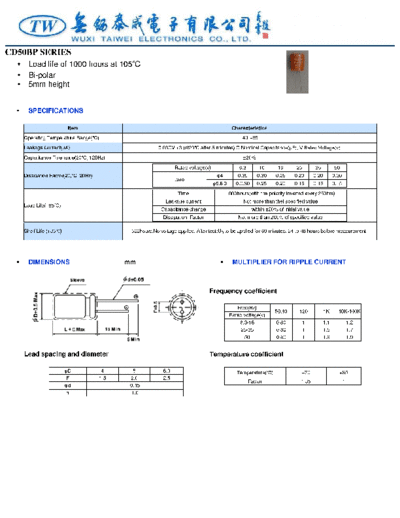

Image preview - the first page of the document



>> Download TW [bi-polar radial] CD50BP Series documenatation <<

Text preview - extract from the document

CD50BP SERIES
   Load life of 1000 hours at 105
   Bi-polar
   5mm height



      SPECIFICATIONS

                        Item                                                                Characteristics
     Operating Temperature Range()                                                              -40-+85

     Leakage Current(A)                                 0.03CV +3 (at20,after 5 minutes) C:Nominal Capacitance(F), V:Rated Voltage(v)

     Capacitance Tolerance(20, 120Hz)
