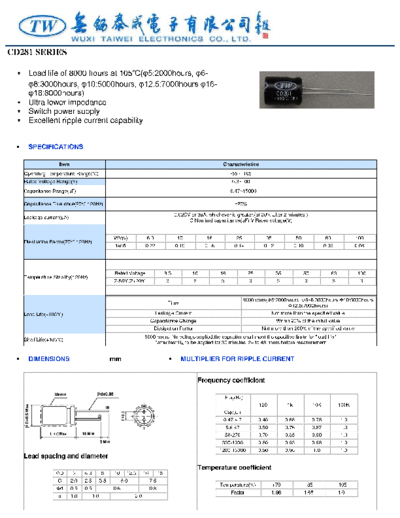

Image preview - the first page of the document



>> Download TW [radial thru-hole] CD281 Series documenatation <<

Text preview - extract from the document

CD281 SERIES

  Load life of 8000 hours at 105(5:2000hours, 6-
  8:3000hours, 10:5000hours, 12.5:7000hours 16-
  18:8000hours)
  Ultra lower impedance
  Switch power supply
  Excellent ripple current capability


     SPECIFICATIONS

                   Item                                                                                         Characteristics
    Operating Temperature Range()                                                                                    -55~+105
    Rated Voltage Range(V)                                                                                            6.3~100
    Capacitance Range(F)                                                                                             0.47~15000

    Capacitance Tolerance(20,120Hz)
