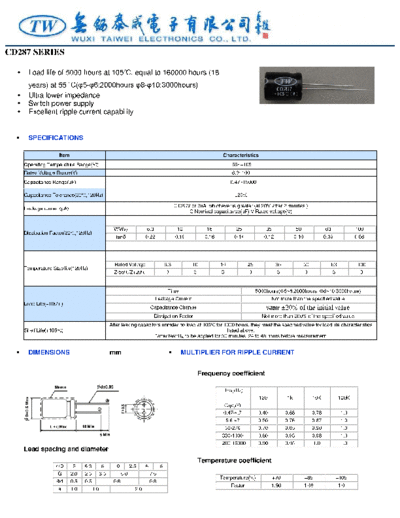

Image preview - the first page of the document



>> Download TW [radial thru-hole] CD287 Series documenatation <<

Text preview - extract from the document

CD287 SERIES

      Load life of 5000 hours at 105, equal to 160000 hours (18
      years) at 55 (5-6:2000hours 8-10:3000hours)
      Ultra lower impedance
      Switch power supply
      Excellent ripple current capability


      SPECIFICATIONS

                    Item                                                                                          Characteristics
     Operating Temperature Range()                                                                                     -55~+105
     Rated Voltage Range(V)                                                                                             6.3~100
     Capacitance Range(F)                                                                                              0.47~15000

     Capacitance Tolerance(20,120Hz)
