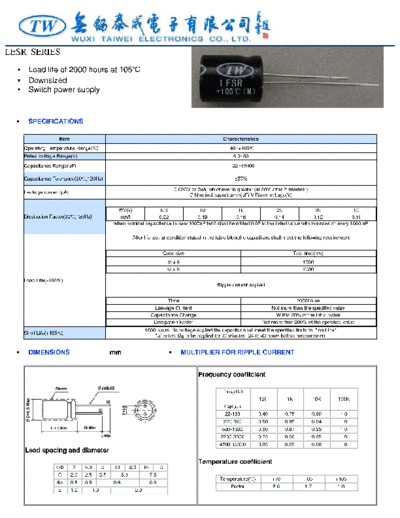

Image preview - the first page of the document



>> Download TW [radial thru-hole] LESR Series documenatation <<

Text preview - extract from the document

LESR SERIES
   Load life of 2000 hours at 105
   Downsized
   Switch power supply



      SPECIFICATIONS

                   Item                                                                                       Characteristics
     Operating Temperature Range()                                                                              -40~+105
     Rated Voltage Range(V)                                                                                       6.3~50
     Capacitance Range(F)                                                                                         22~18000

     Capacitance Tolerance(20,120Hz)
