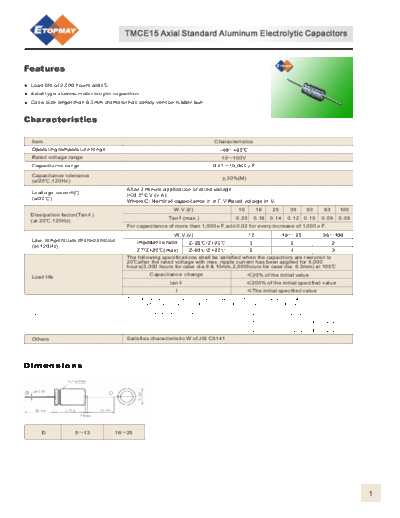

Image preview - the first page of the document
![Topmay [axial] TMCE15-GA Series](/pics/5c2e122563c91.gif)
>> Download Topmay [axial] TMCE15-GA Series documenatation <<
Text preview - extract from the document
TMCE15 Axial Standard Aluminum Electrolytic Capacitors
Features
Load life of 2,000 hours at 85 .
Axial type aluminum electrolytic capacitors.
Case size larger than 6.3mm diameter has safety vent on rubber bun..
Characteristics
Item Characteristics
Operating temperature range -40 +85
Rated voltage range 10 100V
Capacitance range 0.47 10,000 F
Capacitance tolerance
20%(M)
(at20 ,120Hz)
After 2 minute application of rated voltage.
Leakage current(I)
I 0.01CV ( A)
(at20 ) Where C: Nominal capacitance in F,V:Rated voltage in V.
W.V.(V) 10 16 25 35 50 63 100
Dissipation factor(Tan )
Tan (max.) 0.20 0.16 0.14 0.12 0.10 0.09 0.08
(at 20 ,120Hz)
For capacitance of more than 1,000 F,add 0.02 for every increase of 1,000 F.
W.V.(v) 10 16 25 35 100
Low temperature characteristics impedance ratio Z-25 /Z+20 3 2 2
(at 120Hz)
ZT/Z+20 (max) Z-40 /Z+20 6 4 3
The following specifications shall be satisfied when the capacitors are restored to
20 after the rated voltage with max. ripple current has been applied for 5,000
hours(3,000 hours for case dia.8 & 10mm,2,000hours for case dia. 6.3mm) at 105
Capacitance change 20% of the initial value
Load life
tan 200% of the initial specified value
I The initial specified value
The following specifications shall be satisfied when the capacitors are restored
to 20 after exposing them at 105 for 500 hours without voltage applied
Shelf life Capacitance change 20% of the initial value
tan 150% of the initial specified value
I 200% of the initial specified value
Others Satisfies characteristic W of JIS C5141
Dimensions
D 5 13 16 25
d 0.6 0.8
1
TMCE15 Axial Standard Aluminum Electrolytic Capacitors
Case Size DxL(mm) and Maximun Ripple curr ent(mA rm s/at 85 ,120Hz)
W.V.(v)
10 16 25 35 50 63 100
Cap.( F)
0.47 5 12 5 5 12 5 5 12 5
1 5 12 10 5 12 18 5 12 18
2.2 5 12 23 5 12 28 5 12 28
3.3 5 12 28 5 12 31 5 12 34
4.7 5 12 34 5 12 37 5 12 40
10 5 12 40 5 12 45 6.3 12 50 6.3 12 55 8 13 60
22 5 12 60 5 12 65 6.3 12 70 6.3 12 85 6.3 14 90 8 16 120
33 5 12 70 5 12 80 6.3 12 90 6.3 14 110 8 13 120 10 17 150
47 5 12 80 5 12 85 6.3 12 100 6.3 14 120 8 13 130 8 16 160 10 21 190
100 6.3 12 130 6.3 14 160 8 13 170 8 16 210 10 17 220 10 17 260 13 22 340
220 8 13 210 8 16 260 8 16 280 10 17 340 10 21 410 13 22 480 16 26 560
330 8 16 300 8 16 320 10 17 380 10 21 460 13 22 560 13 22 650
470 8 16 350 8 16 430 10 21 510 13 22 610 13 22 730 13 26 840
1,000 10 17 640 10 17 770 13 22 900 13 24 1,060 16 33 1,260 16 36 1,330
2,200 13 22 1,090 10 21 1,180 16 28 1,480 16 33 1,580 18 36 1,920 20 42 2,160
3,300 13 26 1,390 13 24 1,620 16 33 1,710 18 36 2,050 20 42 2,340 25 43 2,470
4,700 16 28 1,730 16 36 1,840 18 36 2,170 20 36 2,470 25 43 2,650 25 54 2,710
6,800 16 33 1,930 18 36 2,310 18 42 2,580 22 43 2,720
10,000 18 36 2,350 20 36 2,620 22 42 2,940 25 54 2,600
Ripple Current Multipliers
Frequency multiplying factor
Freq(Hz)
Cap.( F) 50 120 300 1k 10k
0.47 47 0.75 1.00 1.35 1.57 2.00
100 470 0.80 1.00 1.23 1.34 1.50
1,000 10,000 0.85 1.00 1.10 1.13 1.15
Temperature multiplying factor
Temperature( ) 45 65 85
Factor 1.59 1.23 1.00
