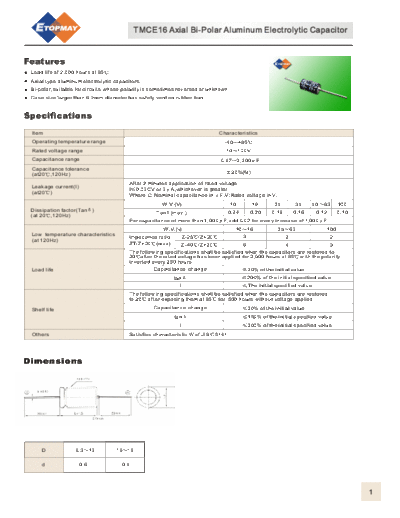

Image preview - the first page of the document
![Topmay [bi-polar axial] TMCE16-BA Series](/pics/5c2e1227bb6dd.gif)
>> Download Topmay [bi-polar axial] TMCE16-BA Series documenatation <<
Text preview - extract from the document
TMCE16 Axial Bi-Polar Aluminum Electrolytic Capacitor
Features
Load life of 2,000 hours at 85 .
Axial type aluminum electrolytic capacitors.
Bi-polar,suitable for circuits whose polarity is sometimes reversed or unknown.
Case size larger than 6.3mm diameter has safety vent on rubber bun.
Specifications
Item Characteristics
Operating temperature range -40 +85
Rated voltage range 10 100V
Capacitance range 0.47 2,200 F
Capacitance tolerance
20%(M)
(at20 ,120Hz)
After 2 minutes application of rated voltage.
Leakage current(I)
I 0.03CV or 3 A,whichever is greater.
(at20 )
Where C: Nominal capacitance in F,V:Rated voltage in V.
W.V.(V) 10 16 25 35 50 63 100
Dissipation factor(Tan )
Tan (max.) 0.24 0.20 0.18 0.16 0.12 0.10
(at 20 ,120Hz)
For capacitance of more than 1,000 F,add 0.02 for every increase of 1,000 F.
W.V.(v) 10 16 25 63 100
Low temperature characteristics Z-25 /Z+20 3 2 2
impedance ratio
(at 120Hz)
ZT/Z+20 (max) Z-40 /Z+20 6 4 3
The following specifications shall be satisfied when the capacitors are restored to
20 after the rated voltage has been applied for 2,000 hours at 85 with the polarity
inverted every 250 hours.
Load life Capacitance change 20% of the initial value
tan 200% of the initial specified value
I The initial specified value
The following specifications shall be satisfied when the capacitors are restored
to 20 after exposing them at 85 for 500 hours without voltage applied
Shelf life Capacitance change 20% of the initial value
tan 150% of the initial specified value
I 200% of the initial specified value
Others Satisfies characteristic W of JIS C5141
Dimensions
D 6.3 13 16 18
d 0.6 0.8
1
TMCE16 Axial Bi-Polar Aluminum Electrolytic Capacitor
Case Size DxL(mm) and Maximun Ripple curr ent(mA/at 85 ,120Hz)
W.V.(v)
10 16 25 35 50 63 100
Cap.( F)
0.47 6.3 12 14
1 6.3 12 21
2.2 8 13 34
3.3 8 13 39
4.7 6.3 12 34 8 13 34 8 13 47
10 6.3 12 43 8 13 52 8 16 57 10 17 71
22 6.3 12 57 6.3 12 65 8 13 73 8 16 89 10 17 95 10 21 135
33 6.3 12 64 6.3 12 70 8 13 80 8 16 100 10 17 105 10 21 135 13 22 220
47 8 13 76 8 13 95 8 16 95 10 17 120 10 17 150 10 21 180 13 22 240
100 8 16 125 8 16 160 10 17 160 10 21 230 13 22 265 13 22 320 16 33 425
220 10 17 215 10 21 275 10 21 305 13 22 410 13 26 480 16 33 575
330 10 21 345 13 22 375 13 22 450 13 26 505 16 26 650 18 36 655
470 13 22 410 13 22 485 16 26 540 16 28 655 16 33 835
1,000 13 26 720 16 28 855 16 33 950 18 36 1,140
2,200 16 33 1,280 18 36 1,510
Ripple Current Multipliers
Frequency multiplying factor
Freq(Hz)
Cap.( F) 50 120 300 1k 10k
0.47 47 0.75 1.00 1.35 1.57 2.00
100 470 0.80 1.00 1.23 1.34 1.50
1,000 2,200 0.85 1.00 1.10 1.13 1.15
Temperature multiplying factor
Temperature( ) 45 65 85
Factor 1.59 1.23 1.00
