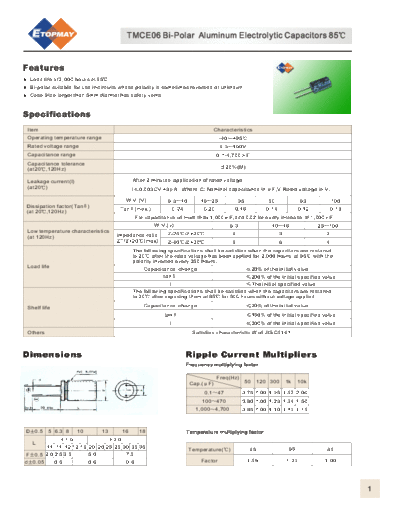

Image preview - the first page of the document
![Topmay [bi-polar radial] TMCE06-GB Series](/pics/5c2e122a12f82.gif)
>> Download Topmay [bi-polar radial] TMCE06-GB Series documenatation <<
Text preview - extract from the document
TMCE06 Bi-Polar Aluminum Electrolytic Capacitors 85
Features
Load life of 2,000 hours at 85 .
Bi-polar,suitable for use in circuits whose polarity is sometimes reversed or unknown.
Case Size larger than 5mm diamter has safety vents.
Specifications
Item Characteristics
Operating temperature range -40 +85
Rated voltage range 6.3 100V
Capacitance range 0.1-4,700 F
Capacitance tolerance
20%(M)
(at20 ,120Hz)
Leakage current(I) After 2 minutes application of rated voltage.
(at20 ) I 0.003CV +3 A Where C: Nominal capacitance in F,V:Rated voltage in V.
W.V.(V) 6.3 10 16 25 35 50 63 100
Dissipation factor(Tan )
Tan (max.) 0.24 0.20 0.16 0.14 0.12 0.10
(at 20 ,120Hz)
For capacitance of more than 1,000 F,add 0.02 for every increase of 1,000 F.
W.V.(v) 6.3 10 16 25 100
Low temperature characteristics
impedance ratio Z-25 /Z+20 4 3 2
(at 120Hz)
ZT/Z+20 (max) Z-40 /Z+20 8 6 4
The following specifications shall be satisfied when the capacitors are restored
to 20 after the rated voltage has been applied for 2,000 hours at 85 .with the
polarity inverted every 250 hours.
Load life Capacitance change 20% of the initial value
tan 200% of the initial specified value
I The initial specified value
The following specifications shall be satisfied when the capacitors are restored
to 20 after exposing them at 85 for 500 hours without voltage applied
Capacitance change 20% of the initial value
Shelf life
tan 150% of the initial specified value
I 200% of the initial specified value
Others Satisfies characteristic W of JIS C5141
Dimensions Ripple Cur rent Multipliers
Frequency multiplying factor
Freq(Hz)
Cap.( F) 50 120 300 1k 10k
0.1 47 0.75 1.00 1.35 1.57 2.00
100 470 0.80 1.00 1.23 1.34 1.50
1,000 4,700 0.85 1.00 1.10 1.13 1.15
D 0.5 5 6.3 8 10 13 16 18 Temperature multiplying factor
1.0 2.0
L
11 11 12 12 16 20 20 25 25 30 35 35 45 65 85
Temperature( )
F 0.5 2.0 2.5 3.5 5.0 7.5
d 0.05 0.5 0.6 0.8 Factor 1.59 1.23 1.00
1
TMCE06 Bi-Polar Aluminum Electrolytic Capacitors 85
Case Size DxL(mm) and Maximun Ripple current(m A rms/at 85 ,120Hz)
W.V.(v)
6.3 10 16 25 35 50 63 100
Cap.( F)
0.1 5 11 1.3 5 11 2.7
0.22 5 11 2.9 5 11 5.9
0.33 5 11 4.4 5 11 8.8
0.47 5 11 6.3 5 11 10
1 5 11 12 5 11 15
2.2 5 11 18 5 11 20 5 11 22
3.3 5 11 23 5 11 24 6.3 11 30
4.7 5 11 23 5 11 25 5 11 27 5 11 29 6.3 11 36
10 5 11 33 5 11 33 5 11 37 5 11 39 6.3 11 48 6.3 11 36
22 5 11 45 5 11 49 5 11 49 6.3 11 62 6.3 11 66 8 12 85 8 12 63
33 5 11 55 5 11 55 5 11 60 63 11 68 6.3 11 76 8 12 97 10 12 119 10 16 120
47 5 11 65 5 11 65 6.3 11 81 6.3 11 81 8 12 108 10 12 131 10 16 160 10 20 162
100 6.3 11 108 6.3 11 108 8 12 141 10 12 160 10 12 179 10 16 217 10 20 258 13 20 224
220 8 12 191 8 12 191 10 12 238 10 16 269 10 20 331 13 20 410 13 20 443 13 25 361
330 8 12 234 10 12 266 10 16 329 10 20 363 13 20 470 13 20 503 16 25 673 16 30 652
470 10 12 317 10 16 359 10 20 433 13 20 502 13 20 561 16 25 744 16 30 870
1,000 10 20 577 10 20 668 13 20 732 13 25 807 16 25 1,015 18 35 1,343
2,200 13 20 952 13 25 1,050 16 25 1,283 16 35 1,488
3,300 13 25 1,239 16 25 1,393 16 35 1,745
4,700 16 25 1,580 16 35 1,832
Note:10 12 can also be 8 15 as per customer's request.
