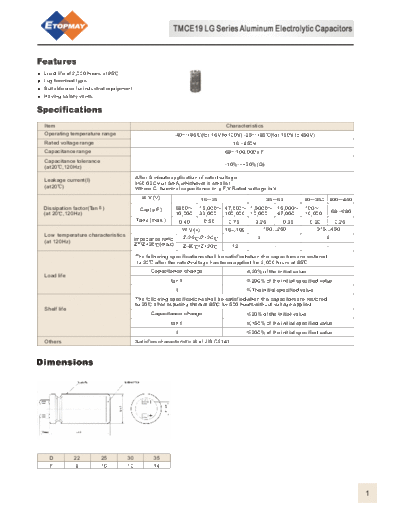

Image preview - the first page of the document
![Topmay [lug-terminal] TMCE19-LG Series](/pics/5c2e122eee749.gif)
>> Download Topmay [lug-terminal] TMCE19-LG Series documenatation <<
Text preview - extract from the document
TMCE19 LG Series Aluminum Electrolytic Capacitors
Features
Load life of 2,000 hours at 85 .
Lug terminal type.
Suitable use for industral equipment.
Having safety vents.
Specifications
Item Characteristics
Operating temperature range -40 +85 (for 16V to 100V) -25 +85 (for 160V to 450V)
Rated voltage range 16 450V
Capacitance range 68 100,000 F
Capacitance tolerance
-10% +30%(Q)
(at20 ,120Hz)
Leakage current(I) After 5 minute application of rated voltage.
I 0.02CV or 5mA,whichever is smaller.
(at20 ) Where C: Nominal capacitance in F,V:Rated voltage in V.
W.V.(V) 16 25 35 63 80 350 400 450
Dissipation factor(Tan ) Cap( F) 6800 15,000 47,000 1,5000 15,000 100
(at 20 ,120Hz) 10,000 33,000 100,000 10,000 47,000 10,000 68 680
Tan (max.) 0.40 0.50 0.75 0.25 0.35 0.20 0.25
W.V.(v) 16 100 160 250 315 450
Low temperature characteristics
impedance ratio Z-25 /Z+20 3 8
(at 120Hz)
ZT/Z+20 (max) Z-40 /Z+20 12 - -
The following specifications shall be satisfied when the capacitors are restored
to 20 after the rated voltage has been applied for 2,000 hours at 85 .
Capacitance change 20% of the initial value
Load life
tan 200% of the initial specified value
I The initial specified value
The following specifications shall be satisfied when the capacitors are restored
to 20 after exposing them at 85 for 500 hours without voltage applied
Shelf life
Capacitance change 20% of the initial value
tan 150% of the initial specified value
I 200% of the initial specified value
Others Satisfies characteristic W of JIS C5141
Dimensions
D 22 25 30 35
F 8 10 10 14
1
TMCE19 LG Series Aluminum Electrolytic Capacitors
Case Size DxL(mm) and Maximun Ripple
current(A rms/at 85 ,120Hz)
current (A
W.V.(v)
16 25 35 50 63 80 100 160 200 250 315 350 400 450
Cap.( F)
22 30 22 30
68
0.27 0.27
22 30 22 30 22 40 22 40
100 0.37 0.37 0.38
0.38
22 30 22 40 22 40 25 40 25 40
150 0.46 0.52 0.52 0.50
0.50
22 30 22 30 22 40 22 40 25 40 25 50 30 50
220
0.55 0.55 0.63 0.67 0.67 0.67 0.73
22 40 22 40 25 40 25 50 25 50 30 50 30 50
330
0.77 0.77 0.82 0.91 0.91 0.90 0.98
25 40 25 40 25 50 30 50 30 50 35 50 35 63
470
0.81 0.98 1.08 1.20 1.20 1.17 1.29
25 50 25 50 30 50 35 50 35 50 35 63 35 80
680
1.30 1.30 1.44 1.58 1.58 1.56 1.73
22 30 22 30 30 50 30 50 35 50 35 80 38 80
1,000
1.18 1.18 1.75 1.75 1.91 2.11 2.35
22 30 22 40 22 40 35 50 35 50 35 63
1,500
1.29 1.63 1.63 2.34 3.13 3.48
22 30 22 40 25 40 25 50 35 63 35 63
2,200 1.56 1.77 2.12 2.34 3.13 3.48
22 30 22 40 25 40 25 50 30 50
3,300
1.91 2.17 2.33 2.87 3.18
22 40 25 40 25 50 30 50 35 50
4,700
2.58 2.78 3.06 3.79 4.14
22 30 22 40 25 50 30 50 35 50 35 63
6,800
2.17 3.11 3.68 4.08 4.98 5.50
22 30 22 40 25 50 35 50 35 50 35 63 35 80
10,000
2.63 2.98 4.47 4.95 5.40 6.68 7.42
15,000 22 40 30 50 35 50 35 50 35 63
3.26 3.87 5.12 5.59 6.18
25 40 25 50 35 50 35 80
22,000
4.25 2.67 6.77 8.32
30 50 35 50 35 63
33,000
6.36 6.94 9.17
35 50 35 63 35 80
47,000
6.67 7.74 12.17
35 63 35 80
68,000
8.98 10.0
100,000 35 80
12.12
Ripple Current Multipliers
Frequency multiplying factor
Freq.(Hz) 50 60 120 1k 10k 50k
W.V.(v)
16 100 0.88 0.90 1.00 1.15 1.15 1.15
160 250 0.77 0.80 1.00 1.50 1.60 1.63
315 450 0.88 0.90 1.00 1.15 1.15 1.15
Temperature multiplying factor
Temperature( ) 20 45 70 85
Factor 1.50 1.48 1.30 1.00 2
