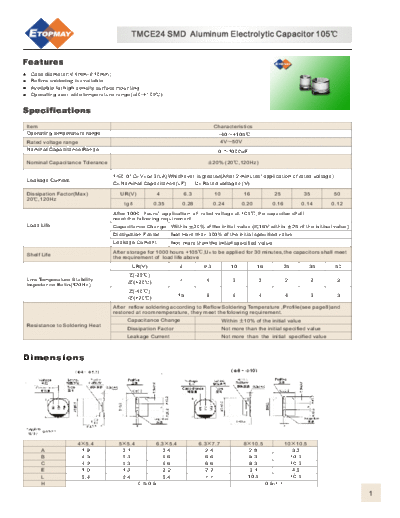

Image preview - the first page of the document
![Topmay [smd] TMCE24-VT Series](/pics/5c2e12372027b.gif)
>> Download Topmay [smd] TMCE24-VT Series documenatation <<
Text preview - extract from the document
TMCE24 SMD Aluminum Electrolytic Capacitor 105
Features
Case diameter: 4mm- 10mm;
Reflow soldering is available.
Available for high density surface mounting.
Operating over wide temperature range(-40-+105 )
Specifications
Item Characteristics
Operating temperature range -40 +105
Rated voltage range 4V 50V
Nominal Capacitance Range 0.1-1000uF
Nominal Capacitance Tolerance 20% (20 ,120Hz)
1 0.01C R V R or 3(uA)Whichever is greater(After 2 minutes' application of rated voltage)
Leakage Cument
C R :Nominal Capacitance(uF) U R :Rated voltages (V)
Dissipation Factor(Max) UR(V) 4 6.3 10 16 25 35 50
20 ,120Hz
tg 0.35 0.28 0.24 0.20 0.16 0.14 0.12
After 1000 hours' application of rated voltage at 105 ,the capacitor shall
meet the following requirement.
Load Life Capacitance Change Within 20% of the initial value ( 16V:within 25 of the initinal value)
Dissipation Factor Not more than 300% of the initial specified value
Leakage Cument Not more than the initial specified value
After storage for 1000 hours +105 , U R to be applied for 30 minutes, the capacitors shall meet
Shelf Life the requirement of load life above
UR(V) 4 6.3 10 16 25 35 50
Z(-25 )
Low Temperature Stability 7 4 3 2 2 2 2
/Z(+20 )
Impedance Ratio(120Hz)
Z(-40 )
15 8 6 4 4 3 3
/Z(+20 )
After reflow soldering according to Reflow Soldering Temperature ,Profile(see page8)and
restored at room remperature, they meet the folowing requirement.
Capacitance Change Within 10% of the initial value
Resistance to Soldering Heat
Dissipation Factor Not more than the initial specified value
Leakage Current Not more than the initial specified value
Dimensions
4 5.4 5 5.4 6.3 5.4 6.3 7.7 8 10.5 10 10.5
A 1.8 2.1 2.4 2.4 2.9 3.2
B 4.3 5.3 6.6 6.6 8.3 10.3
C 4.3 5.3 6.6 6.6 8.3 10.3
E 1.0 1.3 2.2 2.2 3.1 4.5
L 5.4 5.4 5.4 7.7 10.5 10.5
H 0.5-0.8 0.8-1.1
1
TMCE24 SMD Aluminum Electrolytic Capacitor 105
Nominal capacitance,rated voitag,reted ripple current and
case size table
V 4 6.3 10 16 25 35 50
D L I D L I D L I D L I D L I D L I D L I
mm mA mm mA mm mA mm mA mm mA mm mA mm mA
uF
0.1 4 5.4 0.7
0.22 4 5.4 1.6
0.33 4 5.4 2.5
0.47 4 5.4 3.5
1.0 4 5.4 4
2.2 4 5.4 11
3.3 4 5.4 13 4 5.4 13
20
4.7 4 5.4 13 4 5.4 14 5 5.4 16
10 4 5.4 18 5 5.4 20 5 5.4 21 6.3 5.4 24
22 4 5.4 22 5 5.4 25 5 5.4 37 6.3 5.4 36 6.3 5.4 38 6.3 7.7 51
33 4 5.4 18 5 5.4 27 5 5.4 30 6.3 5.4 40 6.3 5.4 44 6.3 5.4 42 6.3 7.7 60
47 4 5.4 23 5 5.4 33 6.3 5.4 41 6.3 5.4 48 6.3 5.4 48 6.3 7.7 49 6.3 7.7 63
100 5 5.4 42 6.3 5.4 50 6.3 5.4 53 6.3 5.4 60 6.3 7.7 91 8 10.5 155 8 10.5 155
150 6.3 5.4 61 6.3 5.4 55 6.3 5.4 62 6.3 7.7 95 8 10.5 140 8 10.5 155 10 10.5 300
220 6.3 5.4 68 6.3 7.7 105 6.3 7.7 105 6.3 7.7 105 8 10.5 175 10 10.5 300
330 6.3 7.7 73 6.3 7.7 105 8 10.5 175 8 10.5 195 10 10.5 220
470 6.3 7.7 105 8 10.5 170 8 10.5 210 8 10.5 310
680 8 10.5 210 8 10.5 210 10 10.5 230 10 10.5 350
1000 8 10.5 260 10 10.5 230
280
Frequency coefficient of ripple cument
Frequency 50Hz 120Hz 300Hz 1KHz 10KHz
Coefficient 0.70 1.00 1.17 1.36 1.50
