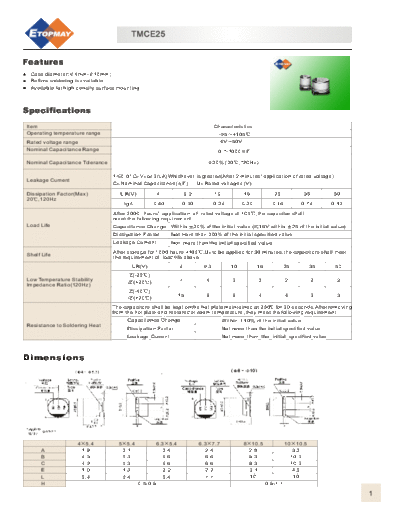

Image preview - the first page of the document
![Topmay [smd] TMCE25 Series](/pics/5c2e123987abc.gif)
>> Download Topmay [smd] TMCE25 Series documenatation <<
Text preview - extract from the document
TMCE25
Features
Case diameter: 4mm- 10mm;
Reflow soldering is available.
Available for high density surface mounting.
Specifications
Item Characteristics
Operating temperature range -55 +105
Rated voltage range 4V 50V
Nominal Capacitance Range 0.1-1000 F
Nominal Capacitance Tolerance 20% (20 ,120Hz)
1 0.01C R V R or 3(uA)Whichever is greater(After 2 minutes' application of rated voltage)
Leakage Cument
C R :Nominal Capacitance( F) U R :Rated voltages (V)
Dissipation Factor(Max) UR(V) 4 6.3 10 16 25 35 50
20 ,120Hz
tg 0.40 0.30 0.24 0.20 0.16 0.14 0.12
After 2000 hours' application of rated voltage at 105 ,the capacitor shall
meet the following requirement.
Load Life Capacitance Change Within 20% of the initial value ( 16V:within 25 of the initial value)
Dissipation Factor Not more than 200% of the initial specified value
Leakage Cument Not more than the initial specified value
After storage for 1000 hours +105 , U R to be applied for 30 minutes, the capacitors shall meet
Shelf Life the requirement of load life above
UR(V) 4 6.3 10 16 25 35 50
Z(-25 )
Low Temperature Stability 7 4 3 2 2 2 2
/Z(+20 )
Impedance Ratio(120Hz)
Z(-40 )
15 8 8 4 4 3 3
/Z(+20 )
The capacitors shall be kept on the hot plate maintained at 250 for 30 seconds.After removing
from the hot plate and restored at room temperature ,they meet the following requirement.
Capacitance Change Within 10% of the initial value
Resistance to Soldering Heat
Dissipation Factor Not more than the initial specified value
Leakage Current Not more than the initial specified value
Dimensions
4 5.4 5 5.4 6.3 5.4 6.3 7.7 8 10.5 10 10.5
A 1.8 2.1 2.4 2.4 2.9 3.2
B 4.3 5.3 6.6 6.6 8.3 10.3
C 4.3 5.3 6.6 6.6 8.3 10.3
E 1.0 1.3 2.2 2.2 3.1 4.5
L 5.4 5.4 5.4 7.7 10 10
H 0.5-0.8 0.8-1.1
1
TMCE25
Nominal capacitance,rated voltage,rated ripple current and
case size table
V 4 6.3 10 16 25 35 50
D L I D L I D L I D L I D L I D L I D L I
mm mA mm mA mm mA mm mA mm mA mm mA mm mA
uF
0.1 4 5.4 1.0
0.22 4 5.4 2.6
0.33 4 5.4 3.2
0.47 4 5.4 3.8
1.0 4 5.4 6.3
2.2 4 5.4 7.5 4 5.4 11
3.3 4 5.4 9 4 5.4 14
20
4.7 4 5.4 13 4 5.4 15 5 5.4 19
10 4 5.4 18 5 5.4 23 5 5.4 25 6.3 5.4 30
22 4 5.4 22 4 5.4 22 5 5.4 27 5 5.4 30 6.3 5.4 38 6.3 5.4 42 6.3 7.7 51
33 5 5.4 30 5 5.4 30 5 5.4 35 6.3 5.4 40 6.3 5.4 48 6.3 7.7 59 6.3 7.7 60
47 5 5.4 36 5 5.4 36 6.3 5.4 46 6.3 5.4 50 6.3 7.7 66 6.3 7.7 63 6.3 7.7 63
100 6.3 5.4 60 6.3 5.4 60 6.3 5.4 60 6.3 5.4 60 6.3 7.7 91 6.3 7.7 84 8 10.5 140
150 6.3 5.4 86 6.3 5.4 86 6.3 5.4 86 6.3 7.7 95 8 10.5 140 8 10.5 155 10 10.5 180
220 6.3 7.7 102 6.3 7.7 102 6.3 7.7 105 6.3 7.7 105 8 10.5 155 8 10.5 190 10 10.5 220
330 6.3 7.7 105 6.3 7.7 105 8 10.5 175 8 10.5 195 8 10.5 190 10 10.5 300
470 8 10.5 210 8 10.5 210 8 10.5 210 8 10.5 230 10 10.5 300
680 8 10.5 210 8 10.5 210 10 10.5 310 10 10.5 310
1000 8 10.5 230 8 10.5 230 10 10.5 310
280
I~=Rated ripple current(mA) (105 ,120Hz)
