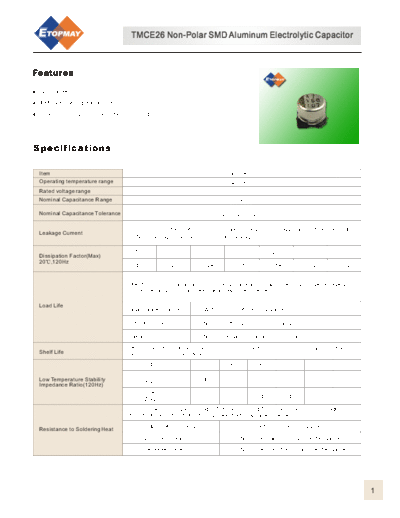

Image preview - the first page of the document
![Topmay [smd] TMCE26-VN Series](/pics/5c2e123c03d5e.gif)
>> Download Topmay [smd] TMCE26-VN Series documenatation <<
Text preview - extract from the document
TMCE26 Non-Polar SMD Aluminum Electrolytic Capacitor
Features
Bi-polarized.
Reflow soldering is available.
Available for high density surface mounting.
Specifications
Item Characteristics
Operating temperature range -40 +85
Rated voltage range 6.3V 50V
Nominal Capacitance Range 0.1-100uF
Nominal Capacitance Tolerance 20% (20 ,120Hz)
1 0.05C R V R or 10(uA)Whichever is greater(After 2 minutes' application of rated voltage)
Leakage Cument
C R:Nominal Capacitance(uF) UR:Rated voltages (V)
UR(V) 6.3 10 16 25 35 50
Dissipation Factor(Max)
20 ,120Hz
tg 0.28 0.24 0.16 0.14 0.12 0.12
After 1000 hours' application of rated voltage at 85 ,with the polarity inverted every 250
hours,the capacitor shall meet the following requirement.
Load Life
Capacitance Change Within 20% of the initial value
Dissipation Factor Not more than 200% of the initial specified value
Leakage Cument Not more than the initial specified value
After storage for 1000 hours +85 , U R to be applied for 30 minutes,the capacitors shall meet
Shelf Life the requirement of load life above
UR(V) 6.3 10 16 25 35 50
Z(-25 )
Low Temperature Stability 4 3 2 2 2 2
Impedance Ratio(120Hz) /Z(+20 )
Z(-40 )
8 6 4 4 3 3
/Z(+20 )
After reflow soldering according to Reflow Soldering Temperature ,Profile(see page8)and
restored at room remperature, they meet the folowing requirement.
Capacitance Change Within 10% of the initial value
Resistance to Soldering Heat
Dissipation Factor Not more than the initial specified value
Leakage Current Not more than the initial specified value
1
TMCE26 Non-Polar SMD Aluminum Electrolytic Capacitor
Dimensions
4 5.4 5 5.4 6.3 5.4 6.3 7.7
A 1.8 2.1 2.4 2.4
B 4.3 5.3 6.6 6.6
C 4.3 5.3 6.6 6.6
E 1.0 1.3 2.2 2.2
L 5.4 5.4 5.4 7.7
H 0.5-0.8
Nominal capacitance,rated voitag,reted ripple cur rent
and case size table
V 6.3 10 16 25 35 50
D L I D L I D L I D L I D L I D L I
mm mA mm mA mm mA mm mA mm mA mm mA
uF
0.1 4 5.4 1.0
0.22 4 5.4 2.0
0.33 4 5.4 2.8
0.47 4 5.4 4.0
1.0 4 5.4 8.4
2.2 4 5.4 8.4 5 5.4 13
3.3 5 5.4 12 5 5.4 16 5 5.4 17
4.7 4 5.4 12 5 5.4 16 5 5.4 18 6.3 5.4 20
10 4 5.4 17 6.3 5.4 23 6.3 5.4 27 6.3 5.4 29 6.3 7.7 36
22 5 5.4 28 6.3 5.4 33 6.3 5.4 37 6.3 7.7 50 6.3 7.7 54
33 6.3 5.4 37 6.3 5.4 41 6.3 5.4 49 6.3 7.7 61
47 6.3 5.4 45 6.3 7.7 61 6.3 7.7 75
100 6.3 7.7 82
Frequency coeff icient of ripple cument
Frequency 50Hz 120Hz 300Hz 1KHz 10KHz
Coefficient 0.70 1.00 1.17 1.36 1.50
