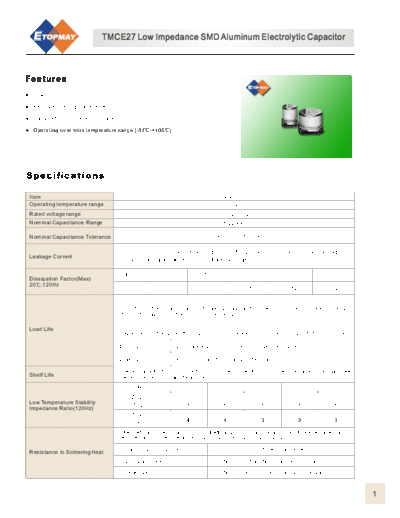

Image preview - the first page of the document



>> Download Topmay [smd] TMCE27-VZ Series documenatation <<

Text preview - extract from the document

                            TMCE27 Low Impedance SMD Aluminum Electrolytic Capacitor



Features
 Low impedance.

 Reflow soldering is available.

 Vailable for high density surface mounting.

 Operating over wide temperature range (-55 -+105 )




Specifications

Item                                                                              Characteristics
Operating temperature range                                                         -55 +105
Rated voltage range                                                                 6.3V 35V
Nominal Capacitance Range                                                           1-220uF

Nominal Capacitance Tolerance                                                     20% (20 ,120Hz)

                                    1        0.01C R V R or 3(uA)Whichever is greater(After 2 minutes' application of rated voltage)
Leakage Current
                                    C R:Nominal Capacitance(uF)             UR:Rated voltages (V)

                                    UR(V)                 6.3               10                16               25                 35
Dissipation Factor(Max)
20 ,120Hz
                                        tg                0.22             0.19               0.16            0.14               0.12


                                   After 1000 hours' application of rated voltage at 105 ,with the polarity inverted every 250
                                   hours,the capacitor shall meet the following requirement.

Load Life
                                   Capacitance Change Within              20% of the initial value ( 16V:within     25 of the initinal value)

                                   Dissipation Factor            Not more than 300% of the initial specified value

                                   Leakage Cument                Not more than the initial specified value

                                   After storage for 1000 hours +105 , U R to be applied for 30 minutes,the capacitors shall meet
Shelf Life                         the requirement of load life above
                                              UR(V)                 6.3             10               16             25             50
                                             Z(-25    )
Low Temperature Stability                                            2              2                2               2              2
                                             /Z(+20 )
Impedance Ratio(120Hz)
                                              Z(-40 )
                                                                     4              4                3               3              3
                                             /Z(+20 )
                                   After reflow soldering according to Reflow Soldering Temperature ,Profile(see page8)and
                                   restored at room remperature, they meet the folowing requirement.

                                        Capacitance Change                          Within    10% of the initial value
Resistance to Soldering Heat
                                        Dissipation Factor                          Not more than the initial specified value

                                        Leakage Current                             Not more than the initial specified value



                                                                                                                                                1
                                         TMCE27 Low Impedance SMD Aluminum Electrolytic Capacitor



Dimensions




                            4     5.4           5     5.4              6.3 5.4             6.3 7.7
         A                      1.8                 2.1                   2.4                 2.4
         B                      4.3                 5.3                   6.6                 6.6
         C                      4.3                 5.3                   6.6                 6.6
         E                      1.0                 1.3                   2.2                 2.2
         L                      5.4                 5.4                   5.4                 7.7
         H                                                   0.5-0.8

Nominal capacitance, rated voltage, rated ripple current and
case size table
     V                6.3                             10                             16                          25                       35

          D L        impedance I          D L       impedance I           D L      impedance I       D L        impedance I     D L       impedance I
          mm
