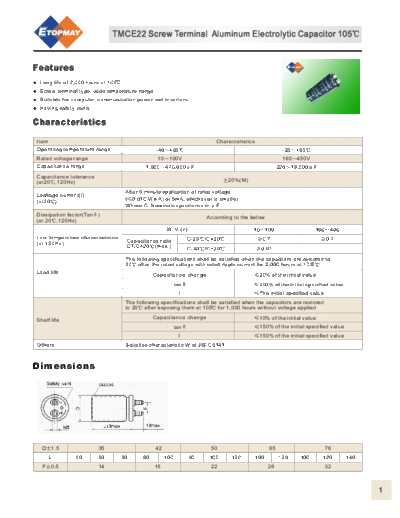

Image preview - the first page of the document
![Topmay [screw-terminal] TMCE22-LR Series](/pics/5c2e124b9e9ee.gif)
>> Download Topmay [screw-terminal] TMCE22-LR Series documenatation <<
Text preview - extract from the document
TMCE22 Screw Terminal Aluminum Electrolytic Capacitor 105
Features
Long life of 2,000 hours at 105 .
Screw terminal type, wide temperature range.
Suitable for computer, communication power and inverters.
Having safety vents.
Characteristics
Item Characteristics
Operating temperature range -40 +85 -25 +85
Rated voltage range 10 100V 160 450V
Capacitance range 1,800 470,000 F 220 18,000 F
Capacitance tolerance
(at20 ,120Hz) 20%(M)
After 5 minute application of rated voltage.
Leakage current(I)
I 0.01CV( A) or 5mA, whichever is smaller.
(at20 )
Where C: Nominal capacitance in F
Dissipation factor(Tan )
According to the below
(at 20 ,120Hz)
W. V. (v) 10 100 160 400
Low temperature characteristics C-25 /C+20 0.7 0.7
Capacitance ratio
(at 120Hz)
CT/C+20 (max.) C-40 /C+20 0.61
The following specifications shall be satisfied when the capacitors are restored to
20 after the rated voltage with rated ripple current for 2,000 hours at 105 .
5
Load life
Capacitance change 20% of the initial value
tan 200% of the initial specified value
I The initial specified value
The following specifications shall be satisfied when the capacitors are restored
to 20 after exposing them at 105 for 1,000 hours without voltage applied
Capacitance change 10% of the initial value
Shelf life
tan 150% of the initial specified value
I 150% of the initial specified value
Others Satisfies characteristic W of JIS C5141
Dimensions
D 1.5 35 42 50 65 76
L 50 60 80 80 100 80 100 120 100 120 100 120 140
F 0.5 14 15 22 28 32
1
TMCE22 Screw Terminal Aluminum Electrolytic Capacitor 105
Case Size DxL(mm), D.F. And Maximum Ripple Current
(A rms/at 105 ,120Hz)
W.V.(v)
10 16 25 35 50
Cap.( F) D L D.F. I D L D.F. I D L D.F. I D L D.F. I D L D.F. I
3,900 35 50 0.20 2.7
4,700 35 50 0.20 2.9
5,600 35 50 0.20 3.2
6,800 35 50 0.20 3.5
8,200 35 50 0.30 3.2 35 60 0.20 3.7
10,000 35 50 0.30 3.5 35 80 0.25 4.7
12,000 35 50 0.25 3.5 35 60 0.30 4.1 35 80 0.25 5.1
15,000 35 50 0.35 4.0 35 60 0.30 4.6 35 80 0.25 5.8
18,000 35 50 0.40 4.1 35 60 0.35 4.7 35 80 0.30 5.8 42 80 0.25 7.0
22,000 35 50 0.40 4.5 35 60 0.35 5.2 35 80 0.30 6.4 42 100 0.25 8.5
27,000 35 50 0.45 4.7 35 60 0.40 5.4 35 80 0.35 6.5 42 80 0.30 7.8 42 100 0.25 9.4
33,000 35 50 0.50 4.9 35 60 0.45 5.6 35 80 0.40 6.7 42 100 0.30 9.5 50 100 0.25 11.5
39,000 35 60 0.50 5.8 35 80 0.45 6.9 42 80 0.40 8.1 42 100 0.35 9.6 50 120 0.25 13.5
47,000 35 80 0.50 7.2 35 80 0.50 7.2 42 100 0.40 9.8 50 100 0.35 11.6 50 120 0.30 13.6
56,000 35 80 0.50 7.2 42 80 0.50 8.7 42 100 0.45 10.1 50 100 0.40 11.8 65 100 0.35 14.6
68,000 42 80 0.50 8.7 42 80 0.55 9.1 50 100 0.45 12.3 50 120 0.40 14.1 65 120 0.35 17.5
82,000 42 80 0.65 9.2 42 100 0.55 11.1 50 100 0.50 12.8 65 100 0.45 15.6 65 120 0.40 19.6
100,000 42 100 0.65 11.3 42 100 0.65 11.3 50 120 0.50 15.3 65 120 0.45 18.7 76 120 0.45 20.4
120,000 42 100 0.75 11.5 50 100 0.65 13.6 65 100 0.65 15.7 65 120 0.55 18.5 76 120 0.45 22.4
150,000 50 100 0.80 13.7 50 120 0.70 15.9 65 120 0.65 19.0 76 120 0.65 20.8
180,000 50 120 0.80 16.3 50 120 0.80 16.3 65 120 0.80 18.8 76 120 0.80 20.5
220,000 50 120 0.85 17.4 65 120 0.85 20.2 76 120 0.85 22.0
270,000 65 120 1.00 20.6 65 120 1.00 20.6 76 120 1.00 22.5
330,000 76 120 1.20 20.8 76 120 1.30 21.8
390,000 76 120 1.50 22.1 76 120 1.50 22.1
470,000 76 120 1.80 22.1 76 140 1.60 25.1
2
TMCE22 Screw Terminal Aluminum Electrolytic Capacitor 105
W.V.(v)
63 80 100 160 200
Cap.( F) D L D.F. I D L D.F. I D L D.F. I D L D.F. I D L D.F. I
330 35 50 0.15 0.8
470 35 50 0.15 0.9
560 35 50 0.15 1.0
680 35 50 0.15 1.3 35 50 0.15 1.1
1,000 35 50 0.15 1.6 35 60 0.15 1.5
1,200 35 60 0.15 1.8 35 60 0.15 1.6
1,500 35 60 0.15 2.1 35 80 0.15 2.0
1,800 35 50 0.10 2.6 35 80 0.15 2.6 35 80 0.15 2.2
2,200 35 50 0.15 2.3 35 50 0.10 2.8 35 80 0.15 2.8 42 80 0.15 2.7
2,700 35 50 0.20 2.2 35 50 0.15 2.6 35 60 0.10 3.4 42 80 0.15 3.5 42 100 0.15 3.3
3,300 35 50 0.20 2.5 35 50 0.15 2.8 35 60 0.10 4.3 42 100 0.20 3.7 42 100 0.15 3.3
3,900 35 50 0.20 2.7 35 60 0.15 3.3 35 80 0.12 4.2 42 100 0.20 4.0 50 100 0.15 3.9
4,700 35 50 0.20 2.9 35 60 0.15 3.7 35 80 0.12 5.1 50 100 0.20 4.8 65 100 0.20 5.0
5,600 35 60 0.20 3.5 35 80 0.15 4.5 42 80 0.12 5.6 50 100 0.20 5.3 65 100 0.20 5.5
6,800 35 60 0.20 3.8 35 80 0.15 5.0 42 100 0.15 6.1 50 120 0.20 6.3 65 120 0.20 6.5
8,200 35 80 0.20 4.8 42 80 0.20 5.3 42 100 0.15 6.7 65 100 0.20 7.4 65 120 0.20 7.2
10,000 35 80 0.20 5.3 42 100 0.20 6.4 50 100 0.15 8.2 65 120 0.20 8.9 76 120 0.20 8.7
12,000 42 80 0.25 5.7 42 100 0.20 7.0 50 120 0.15 9.7 76 100 0.20 9.8 76 120 0.20 9.5
15,000 42 100 0.25 7.0 50 100 0.20 8.7 50 120 0.15 10.8 76 120 0.20 11.9
18,000 42 100 0.25 7.7 50 120 0.20 10.3 65 100 0.20 11.0 76 140 0.20 13.9
22,000 50 100 0.25 9.4 50 120 0.20 11.4 65 120 0.20 13.1
27,000 50 120 0.25 11.3 65 100 0.25 12.0 65 120 0.25 14.2
33,000 50 120 0.25 12.5 76 100 0.25 14.6 76 120 0.25 15.7
39,000 35 100 0.30 13.2 76 100 0.30 14.4 76 140 0.25 18.3
47,000 65 120 0.30 15.7 76 120 0.30 17.1
56,000 65 120 0.30 17.1 76 120 0.30 18.7
68,000 76 120 0.35 19.1
82,000 76 140 0.40 21.0
W.V.(v)
250 315 350 400
Cap.( F) D L D.F. I D L D.F. I D L D.F. I D L D.F. I
220 35 50 0.10 0.9 35 50 0.10 0.9 35 50 0.10 0.9
330 35 50 0.15 0.9 35 50 0.10 1.1 35 50 0.10 1.1 35 60 0.10 1.2
470 35 50 0.15 1.1 35 60 0.10 1.4 35 60 0.10 1.4 35 80 0.10 1.6
560 35 50 0.15 1.2 35 60 0.10 1.5 35 60 0.10 1.5 35 80 0.10 1.8
680 35 60 0.15 1.4 35 80 0.10 1.9 35 80 0.15 1.6 42 80 0.15 1.7
1,000 35 80 0.20 1.7 42 80 0.15 2.1 42 100 0.15 2.3 42 100 0.15 2.3
1,200 35 80 0.20 1.8 42 100 0.15 2.6 42 100 0.15 2.6 50 100 0.15 2.8
1,500 42 80 0.20 2.2 42 100 0.15 2.9 50 100 0.15 3.2 50 100 0.15 3.2
1,800 42 100 0.20 2.7 50 100 0.15 3.5 50 120 0.15 3.8 65 100 0.15 4.0
2,200 42 100 0.20 3.0 50 120 0.15 4.2 50 120 0.15 4.2 65 100 0.15 4.4
2,700 50 100 0.20 3.7 50 120 0.15 4.6 65 100 0.15 4.9 65 120 0.15 5.3
3,300 50 120 0.20 4.4 65 100 0.15 5.4 65 120 0.15 5.9 76 120 0.15 6.4
3,900 50 120 0.20 4.8 65 120 0.15 6.4 76 120 0.15 7.0 76 140 0.15 7.5
4,700 65 100 0.20 6.1 76 100 0.15 7.1 76 120 0.15 7.7 76 140 0.15 8.2
5,600 65 120 0.20 6.6 76 120 0.15 8.4 76 140 0.15 8.9
6,800 76 120 0.20 8.0 76 140 0.15 9.9 3
8,200 76 120 0.20 8.8
TMCE22 Screw Terminal Aluminum Electrolytic Capacitor 105
Ripple Current Multipliers
Frequency multiplying factor
Freq.(Hz)
W. V. (v) D
50 60 120 360 1K 10K
35 42 0.95 0.96 1.00 1.03 1.04 1.04
10 50 50 65 0.97 0.98 1.00 1.02 1.03 1.03
76 0.98 0.99 1.00 1.02 1.03 1.03
35 42 0.90 0.94 1.00 1.09 1.03 1.15
63 100 50 65 0.93 0.97 1.00 1.06 1.10 1.13
76 0.95 0.98 1.00 1.03 1.08 1.08
35 42 0.71 0.79 1.00 1.10 1.15 1.21
160 250 50 65 0.83 0.88 1.00 1.08 1.13 1.20
76 0.85 0.90 1.00 1.06 1.11 1.20
35 42 0.65 0.74 1.00 1.10 1.16 1.22
350 450 50 65 0.81 0.87 1.00 1.08 1.13 1.21
76 0.85 0.90 1.00 1.06 1.11 1.20
Temperature multiplying factor
Temperature ) 45 60 70 85 105
Factor 2.47 2.37 2.17 1.67 1.00
Mounting clamp
D A B W H
35 62 44 50 3.2
42 64 50 54 3.5
50 80 64 68 4.5
D E K J
65(63.5) 93 76 81 4.5
50 32.5 37.0 14
65(63.5) 38.0 43.5 14
76 44.5 50.5 14
4
