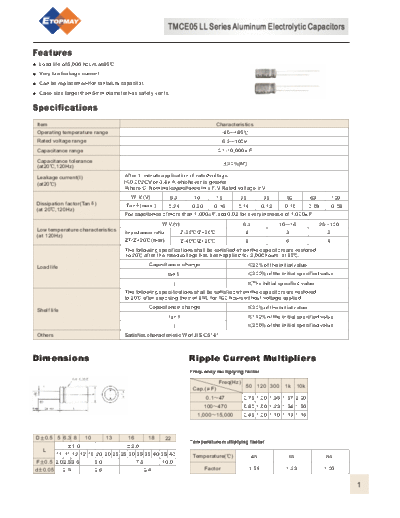

Image preview - the first page of the document
![Topmay [radial thru-hole] TMCE05-LL Series](/pics/5c2e1250a10fe.gif)
>> Download Topmay [radial thru-hole] TMCE05-LL Series documenatation <<
Text preview - extract from the document
TMCE05 LL Series Aluminum Electrolytic Capacitors
Features
Load life of 5,000 hours at 85 .
Very low leakage current.
Can be replacement for tantalum capacitor.
Case size larger than 5mm diameter has safety vents.
Specifications
Item Characteristics
Operating temperature range -40 +85
Rated voltage range 6.3 100V
Capacitance range 0.1-10,000 F
Capacitance tolerance
20%(M)
(at20 ,120Hz)
Leakage current(I) After 1 minute application of rated voltage.
(at20 ) I 0.002CV or 0.4 A,whichever is greater
Where C: Nominal capacitance in F,V:Rated voltage in V.
W.V.(V) 6.3 10 16 25 35 50 63 100
Dissipation factor(Tan ) Tan (max.) 0.24 0.20 0.16 0.14 0.12 0.10 0.09 0.08
(at 20 ,120Hz)
For capcitance of more than 1,000 F,add 0.02 for every increase of 1,000 F.
W.V.(v) 6.3 10 16 25 100
Low temperature characteristics
impedance ratio Z-25 /Z+20 4 3 2
(at 120Hz)
ZT/Z+20 (max) Z-40 /Z+20 8 6 4
The following specifications shall be satisfied when the capacitors are restored
to 20 after the rated voltage has been applied for 2,000 hours at 85 .
Capacitance change 20% of the initial value
Load life
tan 200% of the initial specified value
I The initial specified value
The following specifications shall be satisfied when the capacitors are restored
to 20 after exposing them at 85 for 500 hours without voltage applied
Capacitance change 20% of the initial value
Shelf life
tan 150% of the initial specified value
I 200% of the initial specified value
Others Satisfies characteristic W of JIS C5141
Dimensions Ripple Current Multipliers
Frequency multiplying factor
Freq(Hz)
Cap.( F) 50 120 300 1k 10k
0.1 47 0.75 1.00 1.35 1.57 2.00
100 470 0.80 1.00 1.23 1.34 1.50
1,000 15,000 0.85 1.00 1.10 1.13 1.15
D 0.5 5 6.3 8 10 13 16 18 22
Temperature multiplying factor
1.0 2.0
L
11 11 12 12 16 20 20 25 25 30 35 35 40 35 40 Temperature( ) 45 65 85
F 0.5 2.0 2.5 3.5 5.0 7.5 10.0
d 0.05 0.5 0.6 0.8 Factor 1.59 1.23 1.00
1
TMCE05 LL Series Aluminum Electrolytic Capacitors
Case Size DxL(mm) and Maximun Ripple curr ent(mA rm s/at 85 ,120Hz)
W.V.(v)
6.3 10 16 25 35 50 63 100
Cap.( F)
5 11 5 11
0.1 1.3 2.7
5 11 5 11
0.22
2.9 5.9
5 11 5 11
0.33
4.4 8.8
5 11 5 11
0.47
6.3 11
5 11 5 11
1 13 16
5 11 5 11
2.2
22 24
5 11 5 11
3.3
27 30
5 11 5 11 5 11
4.7
32 34 36
5 11 5 11 5 11 5 11 6.3 11
10
39 42 47 49 59
5 11 5 11 5 11 5 11 6.3 11 6.3 11 10 12
22
49 55 58 63 79 83 119
5 11 5 11 5 11 5 11 6.3 11 6.3 11 8 12 10 16
33
55 60 67 71 88 96 121 165
5 11 5 11 5 11 6.3 11 6.3 11 8 12 10 12 10 16
47
65 71 80 97 105 137 164 196
5 11 6.3 11 6.3 11 8 12 10 12 10 16 10 16 13 20
100
95 118 132 169 207 256 270 366
6.3 11 8 12 8 12 10 16 10 16 10 20 13 20 16 25
220
160 209 266 321 347 419 512 673
8 12 10 12 10 16 10 16 10 20 13 20 13 25 16 30
330
234 291 368 393 469 595 691 892
10 12 10 16 10 16 10 20 13 20 13 25 16 25 18 35
470
317 393 439 518 648 782 927 1,218
10 16 10 20 13 20 13 25 16 25 16 30 18 35 22 40
1,000
523 632 819 965 1,172 1,390 1,675 2,107
13 20 13 25 16 25 16 30 18 35 22 35
2,200
952 1,141 1,419 1,629 1,991 2,408
13 25 16 25 16 30 18 35 22 35
3,300
1,239 1,505 1,785 2,151 2,554
16 25 16 30 18 35 22 35
4,700
1,580 1,833 2,271 2,660
18 35 22 35
10,000
2,451 2,885
Note:10 12 can also be 8 15 as per customer's request.
