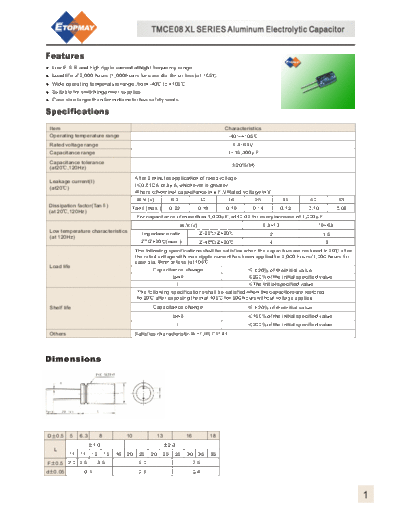

Image preview - the first page of the document
![Topmay [radial thru-hole] TMCE08-XL Series](/pics/5c2e125304cfc.gif)
>> Download Topmay [radial thru-hole] TMCE08-XL Series documenatation <<
Text preview - extract from the document
TMCE08 XL SERIES Aluminum Electrolytic Capacitor
Features
Low E.S.R.and high ripple current at hight frequency range.
Load life of 2,000 hours (1,000 hours for case dia.8m or less) at 105 .
Wide operating temperature range ,from -40 to +105 .
Suitable for switching power supplies.
Case size larger than 5mm diameter has safety vents.
Specifications
Item Characteristics
Operating temperature range -40 +105
Rated voltage range 6.3~63V
Capacitance range 1~15,000 F
Capacitance tolerance
20%(M)
(at20 ,120Hz)
After 2 minutes application of rated voltage
Leakage current(I)
I 0.01CA or 3 A,whichever is greater
(at20 )
Where c:Nominal capacitance in F,V:Rated voltage in V
W.V.(v) 6.3 10 16 25 35 50 63
Dissipation factor(Tan )
Tan (max.) 0.22 0.19 0.16 0.14 0.12 0.10 0.08
(at 20 ,120Hz)
For capacitance of more than 1,000 F,add 0.02 for every increase of 1,000 F
W.V.(v) 6.3~10 16~63
Low temperature characteristics Z-25 /Z+20
Impedance ratio 2 1.5
(at 120Hz)
ZT/Z+20 (max.) Z-40 /Z+20 4 3
The following specifications shall be satisfied when the capacitors are restored to 20 after
the rated voltage with max.ripple current has been applied for 2,000 hours (1,000 hours for
case dia. 8mm or less )at 105 .
Load life
Capacitance change 20% of the initial value
tan 200% of the initial specified value
I The initial specified value
The following specifications shall be satisfied when the capacitors are restored
to 20 after exposing them at 105 for 500 hours without voltage applied
Shelf life Capacitance change 20% of the initial value
tan 150% of the initial specified value
I 200% of the initial specified value
Others Satisfies characteristic W of JIS C5141
Dimensions
D 0.5 5 6.3 8 10 13 16 18
1.0 2.0
L
11 11 12 15 16 20 25 20 25 25 30 35 35
F 0.5 2.0 2.5 3.5 5.0 7.5
d 0.05 0.5 0.6 0.8
1
TMCE08 XL SERIES Aluminum Electrolytic Capacitor
Case Size DxL(mm) and Maximun Ripple curr ent(at DC 12V,15.75kHz)
W.V.(v) 6.3 10 16 25
Cap.( F) Size E.S.R. Ripple Size E.S.R. Ripple Size E.S.R. Ripple Size E.S.R. Ripple
22 5 11 470 0.21
33 5 11 450 0.21 5 11 450 0.21
47 5 11 450 0.21 5 11 450 0.21
68 5 11 430 0.22 5 11 430 0.22 6.3 11 300 0.30
100 5 11 430 0.22 5 11 430 0.22 6.3 11 300 0.30 6.3 11 300 0.30
150 5 11 430 0.22 6.3 11 300 0.30 6.3 11 200 0.37 8 12 130 0.55
220 6.3 11 300 0.30 6.3 11 200 0.37 8 12 130 0.55 8 12 72 0.75
330 6.3 11 200 0.37 8 12 130 0.55 8 12 72 0.75 8 15 56 0.91
470 8 12 130 0.55 8 12 72 0.75 8 15 56 0.91 10 16 38 1.31
680 8 12 72 0.75 8 12 56 0.91 10 16 41 1.26 10 20 23 1.81
1000 8 12 72 0.75 10 16 56 1.08 10 16 38 1.31 10 25 22 1.99
1500 10 16 38 1.31 10 16 38 1.31 10 20 23 1.81 13 25 18 2.62
2200 10 20 23 1.81 10 20 23 1.81 10 25 22 1.99 16 25 18 3.02
3300 10 25 21 2.04 13 20 21 2.26 13 25 18 2.62 16 30 17 3.29
4700 13 25 18 2.62 16 25 18 3.02 16 25 18 3.02 18 35 15 3.99
6800 16 25 18 3.02 16 25 17 3.11 16 30 16 3.39
10000 18 30 16 3.39 16 25 15 3.69 18 35 15 3.99
15000 18 35 15 3.99
W.V.(v) 6.3 10 16
Cap.( F) Size E.S.R. Ripple Size E.S.R. Ripple Size E.S.R. Ripple
1.0 5 11 5000 0.03
2.2 5 11 4000 0.07
3.3 5 11 3500 0.08
4.7 5 11 3000 0.08
6.8 5 11 1000 0.09
10 5 11 1000 0.14 5 11 1000 0.14 5 11 1000 0.14
15 5 11 800 0.16 5 11 800 0.16 5 11 800 0.16
22 5 11 700 0.17 5 11 650 0.18 6.3 11 650 0.20
33 5 11 600 0.18 6.3 11 480 0.24 6.3 11 480 0.24
47 6.3 11 300 0.30 6.3 11 300 0.30 8 12 300 0.37
68 6.3 11 240 0.34 8 12 170 0.49 8 12 160 0.50
100 8 12 100 0.63 8 12 140 0.53 8 15 130 0.59
150 8 12 85 0.39 10 16 90 0.85 10 16 90 0.85
220 8 15 56 0.91 10 16 85 0.87 10 20 72 1.02
330 10 16 38 1.31 10 25 72 1.10 13 20 48 1.49
470 10 20 23 1.81 13 20 48 1.49 13 25 36 1.85
680 10 25 21 2.04 13 25 36 1.85 16 25 30 2.34
1000 13 25 20 2.48 16 25 30 2.34 16 30 26 2.66
1500 16 25 19 2.94 16 35 26 2.80 18 35 25 3.09
2200 16 30 18 3.20 18 35 24 3.15
3300 18 35 18 3.64
Note:8 15 can also be 10 12 as per customer s request
2
TMCE08 XL SERIES Aluminum Electrolytic Capacitor
Ripple Current Multipliers
Frequency multiplying factor
Freq.(Hz)
W.V.(v) 50 120 1K 10K 100K
Cap.( F)
10~100 0.41 0.52 0.66 0.82 1.00
6.3~35 150~1000 0.42 0.55 0.68 0.83 1.00
1500~15000 0.43 0.57 0.71 0.87 1.00
1~10 0.26 0.36 0.61 0.87 1.00
50~63 15~150 0.49 0.62 0.87 0.97 1.00
220~2200 0.49 0.71 0.88 0.98 1.00
Temperature multiplying factor
Temperature( ) 55 65 85 105
Factor 2.44 2.23 1.73 1.00
