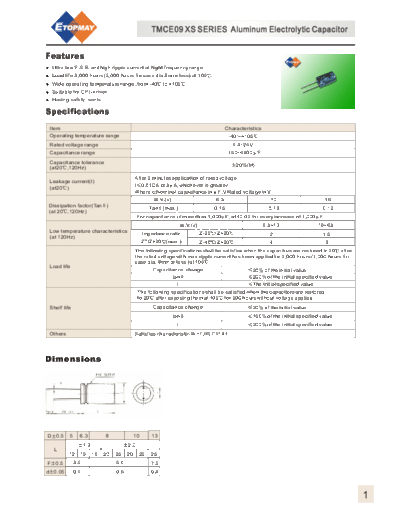

Image preview - the first page of the document
![Topmay [radial thru-hole] TMCE09-XS Series](/pics/5c2e12555f24d.gif)
>> Download Topmay [radial thru-hole] TMCE09-XS Series documenatation <<
Text preview - extract from the document
TMCE09 XS SERIES Aluminum Electrolytic Capacitor
Features
Ultra low E.S.R.and high ripple current at hight frequency range.
Load life:3,000 hours (2,000 hours for case dia.8m or less) at 105 .
Wide operating temperature range ,from -40 to +105 .
Suitable for CPU driver
Having safety vents.
Specifications
Item Characteristics
Operating temperature range -40 +105
Rated voltage range 6.3~25V
Capacitance range 150~6800 F
Capacitance tolerance
20%(M)
(at20 ,120Hz)
After 2 minutes application of rated voltage
Leakage current(I)
I 0.01CA or 3 A,whichever is greater
(at20 )
Where c:Nominal capacitance in F,V:Rated voltage in V
W.V.(v) 6.3 10 16
Dissipation factor(Tan )
Tan (max.) 0.15 0.13 0.12
(at 20 ,120Hz)
For capacitance of more than 1,000 F,add 0.02 for every increase of 1,000 F
W.V.(v) 6.3~10 16~63
Low temperature characteristics Z-25 /Z+20
Impedance ratio 2 1.5
(at 120Hz)
ZT/Z+20 (max.) Z-40 /Z+20 4 3
The following specifications shall be satisfied when the capacitors are restored to 20 after
the rated voltage with max.ripple current has been applied for 2,000 hours (1,000 hours for
case dia. 8mm or less )at 105 .
Load life
Capacitance change 20% of the initial value
tan 200% of the initial specified value
I The initial specified value
The following specifications shall be satisfied when the capacitors are restored
to 20 after exposing them at 105 for 500 hours without voltage applied
Shelf life Capacitance change 20% of the initial value
tan 150% of the initial specified value
I 200% of the initial specified value
Others Satisfies characteristic W of JIS C5141
Dimensions
D 0.5 5 6.3 8 10 13
1.0 2.0
L
12 15 16 20 25 20 25 25
F 0.5 3.5 5.0 7.5
d 0.05 0.5 0.6 0.8
1
TMCE09 XS SERIES Aluminum Electrolytic Capacitor
Case Size DxL(mm) and Maximun Ripple curr ent(at DC 12V,15.75kHz)
W.V.(v) 6.3 10 16 25
Cap.( F) Size E.S.R. Ripple Size E.S.R. Ripple Size E.S.R. Ripple Size E.S.R. Ripple
150 8 12 100 0.63
220 8 12 100 0.63 8 12 58 0.83
330 8 12 58 0.83 8 15 42 1.05
470 8 12 40 0.98 8 15 38 1.10 10 16 32 1.43
680 8 12 40 1.00 8 15 30 1.24 10 16 24 1.65 10 20 18
15 1.94
1000 8 15 30 1.24 10 16 30 1.47 10 20 18 2.04 10 25 15 2.42
1500 10 16 23 1.68 10 20 18 2.04 10 25 15 2.42 13 25 13 3.08
2200 10 20 18 2.04 10 25 15 2.42 13 25 13 3.08 16 25 13 3.55
2700 10 25 15 2.42 13 20 13 2.87 16 25 13 3.55
3300 13 20 13 2.87 13 25 13 3.08 16 25 13 3.55
4700 13 25 13 3.08 16 25 13 3.55
6800 16 25 13 3.55
Note:8 15 can also be 10 12 as per customer s request
Ripple Current Multipliers
Frequency multiplying factor
Freq.(Hz)
50 120 1K 10K 100K
Cap.( F)
150~1000 0.40 0.53 0.65 0.79 1.00
1500~6800 0.41 0.54 0.67 0.83 1.00
Temperature multiplying factor
Temperature( ) 55 65 85 105
Factor 2.44 2.23 1.73 1.00
2
