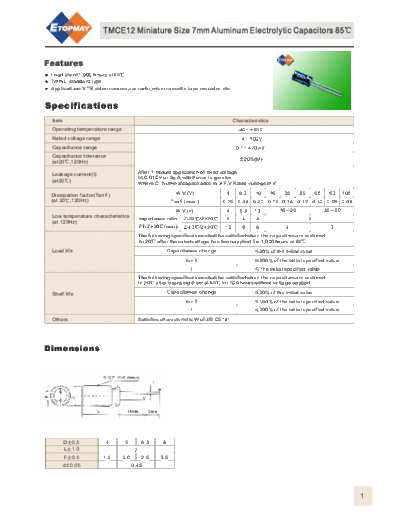

Image preview - the first page of the document
![Topmay [radial thru-hole] TMCE12-SM Series](/pics/5c2e126722d74.gif)
>> Download Topmay [radial thru-hole] TMCE12-SM Series documenatation <<
Text preview - extract from the document
TMCE12 Miniature Size 7mm Aluminum Electrolytic Capacitors 85
Features
Load life of 1,000 hours at 85 .
7mm L,standard type.
Applications:VTR,video camera,car radio,micro cassette tape recorder ,etc.
Specifications
Item Characteristics
Operating temperature range -40 +85
Rated voltage range 4 100V
Capacitance range 0.1 470 F
Capacitance tolerance
20%(M)
(at20 ,120Hz)
Leakage current(I) After 1 minute application of rated voltage.
I 0.01CV or 3 A,whichever is greater.
(at20 ) Where C: Nominal capacitance in F,V:Rated voltage in V.
Dissipation factor(Tan ) W.V.(V) 4 6.3 10 16 25 35 50 63 100
(at 20 ,120Hz) Tan (max.) 0.35 0.24 0.20 0.16 0.14 0.12 0.10 0.09 0.08
W.V.(v) 4 6.3 10 16 25 35 50
Low temperature characteristics impedance ratio Z-25 /Z+20 6 4 3 2
(at 120Hz)
ZT/Z+20 (max) Z-40 /Z+20 12 8 6 4 3
The following specifications shall be satisfied when the capacitors are restored
to 20 after the rated voltage has been applied for 1,000 hours at 85 .
Load life Capacitance change 20% of the initial value
tan 200% of the initial specified value
I The initial specified value
The following specifications shall be satisfied when the capacitors are restored
to 20 after exposing them at 85 for 500 hours without voltage applied
Shelf life Capacitance change 20% of the initial value
tan 150% of the initial specified value
I 200% of the initial specified value
Others Satisfies characteristic W of JIS C5141
Dimensions
D 0.5 4 5 6.3 8
L 1.0 7
F 0.5 1.5 2.0 2.5 3.5
d 0.05 0.45
1
TMCE12 Miniature Size 7mm Aluminum Electrolytic Capacitors 85
Case Size DxL(mm) and Maximun Ripple
current(mA rms/at 85 ,120Hz)
current (mA
W.V.(v)
4 6.3 10 16 25 35 50 63 100
Cap.( F)
0.1 4 7 1.3 4 7 1.7
0.22 4 7 2.9 4 7 3.7
0.33 4 7 4.4 4 7 5.5
0.47 4 7 6.3 4 7 7.7
1 4 7 11 4 7 11 4 7 12
2.2 4 7 16 4 7 17 5 7 20
3.3 4 7 16 4 7 18 4 7 19 4 7 20 6.3 7 28
4.7 4 7 20 4 7 21 4 7 23 4 7 24 6.3 7 34
10 4 7 27 4 7 28 4 7 31 5 7 38 6.3 7 26 8 7 57
22 4 7 32 4 7 35 4 7 40 5 7 48 5 7 52 6.3 7 65 8 7 79
33 4 7 33 4 7 40 4 7 43 5 7 55 6.3 7 67 6.3 7 73 8 7 92
47 4 7 39 4 7 47 4 7 52 5 7 65 6.3 7 80 6.3 7 87 8 7 110
100 5 7 64 5 7 78 6.3 7 98 6.3 7 109 8 7 135 8 7 146
220 6.3 7 110 6.3 7 133 6.3 7 168 8 7 187
330 8 7 155 8 7 187 8 7 205 8 7 230
470 8 7 185 8 7 224
Ripple Current Multipliers
Frequency multiplying factor
Freq.(Hz)
50 120 300 1k 10k
Cap.( F)
0.1 47 0.75 1.00 1.35 1.57 2.00
100 470 0.80 1.00 1.23 1.34 1.50
Temperature multiplying factor
Temperature( ) 45 65 85
Factor 1.59 1.23 1.00
