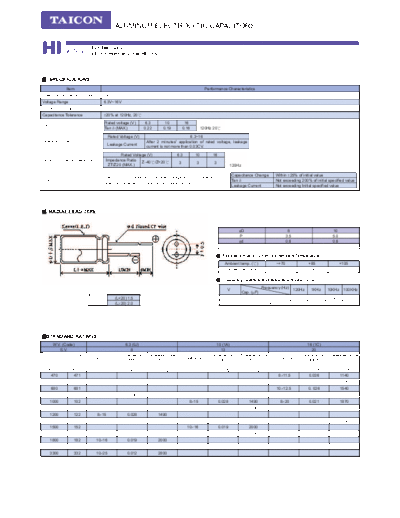

Image preview - the first page of the document
![Taicon [radial thru-hole] HI Series](/pics/5c2e12a157d17.gif)
>> Download Taicon [radial thru-hole] HI Series documenatation <<
Text preview - extract from the document
ALUMINUM ELECTROLYTIC CAPACITORS
HI series Low Impedance
x Lower impedance than HF series.
SPECIFICATIONS
Item Performance Characteristics
Operating Temperature Range 40~+105
Voltage Range 6.3V~16V
Capacitance Range 470~3300 PF
Capacitance Tolerance r20% at 120Hz, 20
Rated voltage (V) 6.3 10 16
Tan G
Tan G (MAX.) 0.22 0.19 0.16 120Hz 20
Rated Voltage (V) 6.3~16
Leakage Current After 2 minutes' application of rated voltage, leakage
Leakage Current
current is not more than 0.03CV.
Rated Voltage (V) 6.3 10 16
Stability at Low Temperature Impedance Ratio
Z40 /Z+20 3 3 3
ZT/Z20 (MAX.) 120Hz
Capacitance Change Within r25% of initial value
After 3000 hours' application of rated voltage at 105 , capacitors
Load Life Tan G Not exceeding 200% of initial specified value
meet the characteristics requirements listed at right.
Leakage Current Not exceeding Initial specified value
RADIAL LEAD TYPE
ID 8 10
P 3.5 5.0
Id 0.6 0.6
0.5 0.5
Allowable Ripple Current VS. Ambient Temperature
Ambient temp. ( ) ~+70 +85 +105
Ripple coefficient 1.78 1.4 1.0
Frequency Coefficient of Allowable Ripple Current
Frequency (Hz)
V 120Hz 1KHz 10KHz 100KHz
Cap. (PF)
(L<20) 1.5 470~1000 0.75 0.90 0.98 1.00
6.3~16
(Lt20) 2.0 1200~3300 0.80 0.95 1.00 1.00
STANDARD RATINGS DuL (mm)
W.V. (Code) 6.3 (0J) 10 (1A) 16 (1C)
S.V. 8 13 20
Item Impedance Allowable Ripple Impedance Allowable Ripple Impedance Allowable Ripple
Case size Case size Case size
(:MAX.) (mA. rms) (:MAX.) (mA. rms) (:MAX.) (mA. rms)
IDuL IDuL IDuL
20 105 20 105 20 105
(mm) (mm) (mm)
Cap(PF) Code 100KHz 100KHz 100KHz 100KHz 100KHz 100KHz
470 471 8u11.5 0.036 1140
680 681 8u11.5 0.036 1140 8u15 0.028 1490
680 681 10u12.5 0. 026 1540
820 821 8u11.5 0.036 1140
1000 102 8u15 0.028 1490 8u20 0.021 1870
1000 102 10u12.5 0.026 1540 10u16 0.019 2000
1200 122 8u15 0.028 1490
1500 152 10u12.5 0.026 1540 8u20 0.021 1870 10u20 0.013 2550
1500 152 10u16 0.019 2000
1800 182 8u20 0.021 1870 10u20 0.013 2550 10u25 0.012 2800
1800 182 10u16 0.019 2000
2200 222 10u20 0.013 2550 10u25 0.012 2800
3300 332 10u25 0.012 2800
37
