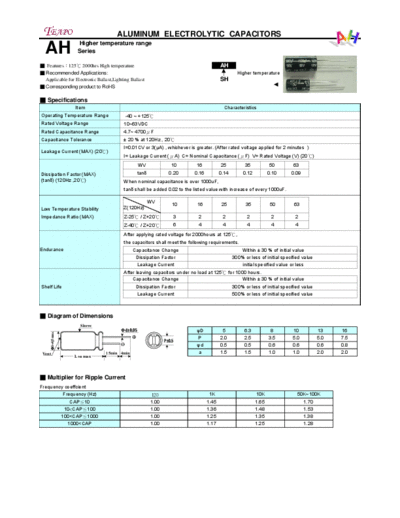

Image preview - the first page of the document
Teapo [radial thru-hole] AH Series


>> Download Teapo [radial thru-hole] AH Series documenatation <<

Text preview - extract from the document
                                      ALUMINUM ELECTROLYTIC CAPACITORS
                        Higher temperature range
  AH                    Series

 Features125 2000hrs High temperature                                                  AH
 Recommended Applications:                                                                      Higher temperature
 Applicable for Electronic Ballast,Lighting Ballast                                    SH
 Corresponding product to RoHS

 Specifications
                       Item                                                              Characteristics
Operating Temperature Range               -40 ~ +125
Rated Voltage Range                      10~63VDC
Rated Capacitance Range                  4.7~ 4700F
Capacitance Tolerance
