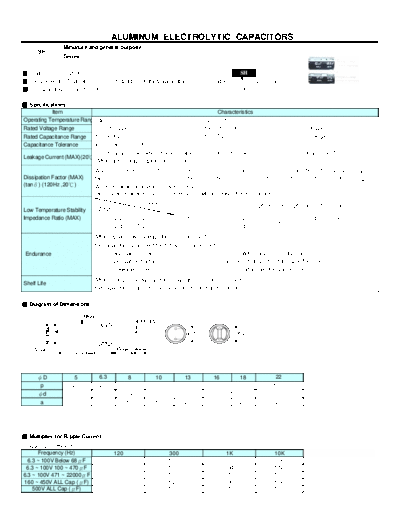

Image preview - the first page of the document
Teapo [radial thru-hole] SH Series


>> Download Teapo [radial thru-hole] SH Series documenatation <<

Text preview - extract from the document
                                      ALUMINUM ELECTROLYTIC CAPACITORS
                 Miniature and general purpose
      SH
                 Series


 Features: 105 2000 hours                                                                   SH
 Recommended Applications: For high quality , reliability application, high CV product             Long Life
Corresponding product to RoHS                                                               SE

 Specifications
           Item                                                                  Characteristics
Operating Temperature Range -40~+105                                        -25~+105
Rated Voltage Range        6.3 ~ 100VDC                                    160 ~ 450VDC                              500VDC
Rated Capacitance Range    1~ 15000F                                       1 ~ 470F                                  2.2~82F
Capacitance Tolerance
