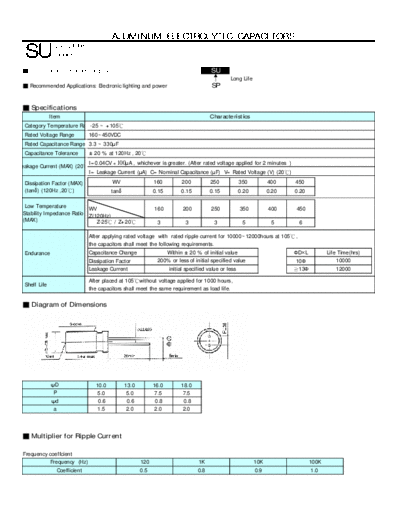

Image preview - the first page of the document



>> Download Teapo [radial thru-hole] SU Series documenatation <<

Text preview - extract from the document

                                       ALUMINUM ELECTROLYTIC CAPACITORS

  SU
                 Long Life
                 Series

  105 10000~12000hrs long Life                                                      SU
                                                                                             Long Life
  Recommended Applications: Electronic lighting and power                           SP


  Specifications
               Item                                                                 Characteristics
  Category Temperature Range ~ +105
                           -25
  Rated Voltage Range        160~450VDC
  Rated Capacitance Range 3.3 ~ 330F
  Capacitance Tolerance
