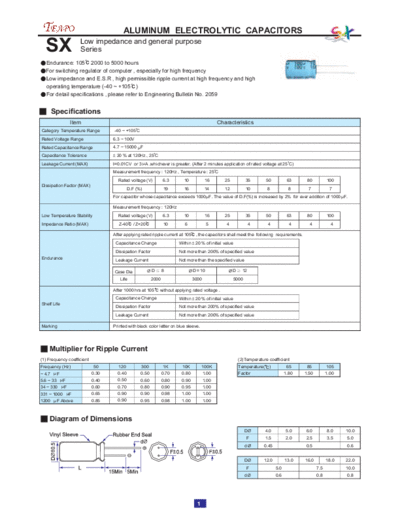

Image preview - the first page of the document
Teapo [radial thru-hole] SX Series


>> Download Teapo [radial thru-hole] SX Series documenatation <<

Text preview - extract from the document
                                        ALUMINUM ELECTROLYTIC CAPACITORS

  SX                Low impedance and general purpose
                    Series
  Endurance: 105 2000 to 5000 hours
  For switching regulator of computer , especially for high frequency
  Low impedance and E.S.R , high permissible ripple current at high frequency and high
  operating temperature (-40 ~ +105 )
  For detail specifications , please refer to Engineering Bulletin No. 2059


     Specifications
               Item                                                                            Characteristics
Category Temperature Range         -40 ~ +105 C
Rated Voltage Range                6.3 ~ 100V
Rated Capacitance Range            4.7 ~ 15000
