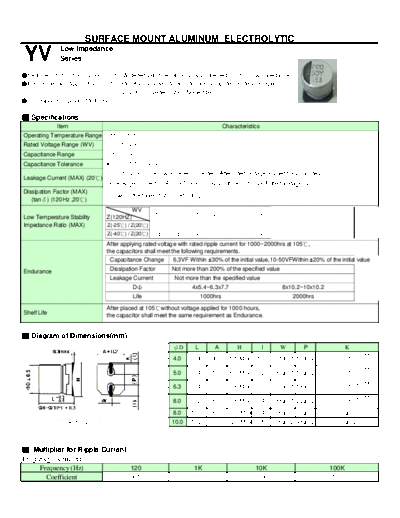

Image preview - the first page of the document



>> Download Teapo [smd] YV Series documenatation <<

Text preview - extract from the document

                        SURFACE MOUNT ALUMINUM ELECTROLYTIC

YV            Low Impedance
              Series

Features : 105 1000~2000 hours , Wide temperature range, Low profile vertical chip,Low impedance
Recommended Applications: Suitable for AV(TV,Video,Audio),Monitor/Computer, Battery charger,
                                         DC/DC converter,SMPS,Noise filter
Corresponding product to RoHS

 Specifications
             Item                                                                   Characteristics
Operating Temperature Range         -55 ~ +105
Rated Voltage Range (WV)        6.3 ~ 50VDC
Capacitance Range               0.1 ~ 1500F
Capacitance Tolerance
