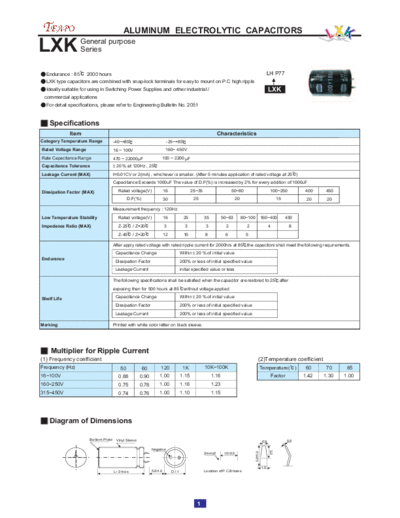

Image preview - the first page of the document



>> Download Teapo [snap-in] LXK Series documenatation <<

Text preview - extract from the document

                                           ALUMINUM ELECTROLYTIC CAPACITORS

LXK                General purpose
                   Series


  Endurance : 85      2000 hours                                                                                                                       LH P77
  LXK type capacitors are combined with snap-lock terminais for easy to mount on P.C high ripple
  Ideally suitable for using in Switching Power Supplies and orther industrial /                                                                        LXK
 commercial applications
  For detail specifications, please refer to Engineering Bulletin No. 2051


   Specifications
             Item                                                                                          Characteristics
Category Temperature Range            -40~+85                           -25~+85
Rated Voltage Range                   16 ~ 100V                         160~ 450V
Rate Capacitance Range                470 ~ 22000
