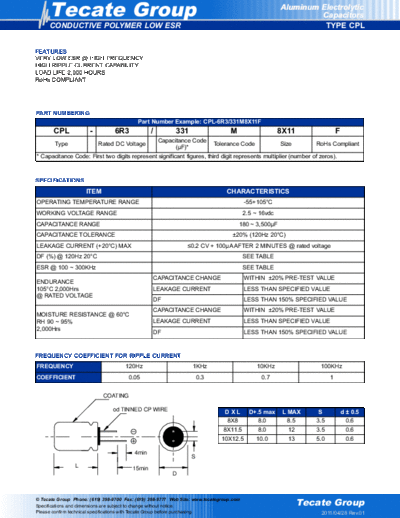

Image preview - the first page of the document



>> Download Tecate [polymer thru-hole] CPL Series documenatation <<

Text preview - extract from the document

      Tecate Group                                                                                              Aluminum Electrolytic
                                                                                                                         Capacitors
      CONDUCTIVE POLYMER LOW ESR                                                                                          TYPE CPL


FEATURES
VERY LOW ESR @ HIGH FREQUENCY
HIGH RIPPLE CURRENT CAPABILITY
LOAD LIFE 2,000 HOURS
RoHs COMPLIANT




PART NUMBERING
                                                 Part Number Example: CPL-6R3/331M8X11F
        CPL               -           6R3              /           331                     M                    8X11                 F
                                                           Capacitance Code
         Type                 Rated DC Voltage                                        Tolerance Code            Size       RoHs Compliant
                                                                 (
