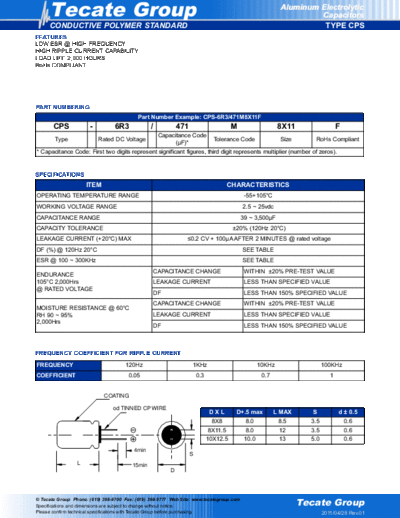

Image preview - the first page of the document



>> Download Tecate [polymer thru-hole] CPS Series documenatation <<

Text preview - extract from the document

      Tecate Group                                                                                                 Aluminum Electrolytic
                                                                                                                            Capacitors
      CONDUCTIVE POLYMER STANDARD                                                                                            TYPE CPS
FEATURES
LOW ESR @ HIGH FREQUENCY
HIGH RIPPLE CURRENT CAPABILITY
LOAD LIFE 2,000 HOURS
RoHs COMPLIANT




PART NUMBERING
                                                 Part Number Example: CPS-6R3/471M8X11F
        CPS               -           6R3              /             471                       M                   8X11                  F
                                                           Capacitance Code
         Type                 Rated DC Voltage                                         Tolerance Code              Size      RoHs Compliant
                                                                 (
