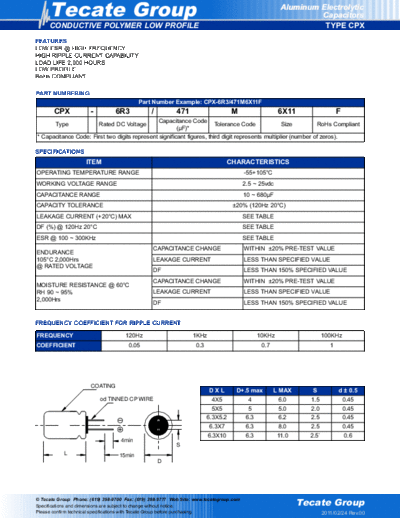

Tecate [polymer thru-hole] CPX Series


>> Download Tecate [polymer thru-hole] CPX Series documenatation <<

Text preview - extract from the document
      Tecate Group                                                                                                  Aluminum Electrolytic
                                                                                                                             Capacitors
      CONDUCTIVE POLYMER LOW PROFILE                                                                                          TYPE CPX
FEATURES
LOW ESR @ HIGH FREQUENCY
HIGH RIPPLE CURRENT CAPABILITY
LOAD LIFE 2,000 HOURS
LOW PROFILE
RoHs COMPLIANT

PART NUMBERING
                                                 Part Number Example: CPX-6R3/471M6X11F
        CPX               -           6R3               /           471                         M                  6X11                    F
                                                            Capacitance Code
         Type                 Rated DC Voltage                                          Tolerance Code              Size       RoHs Compliant
                                                                  (
