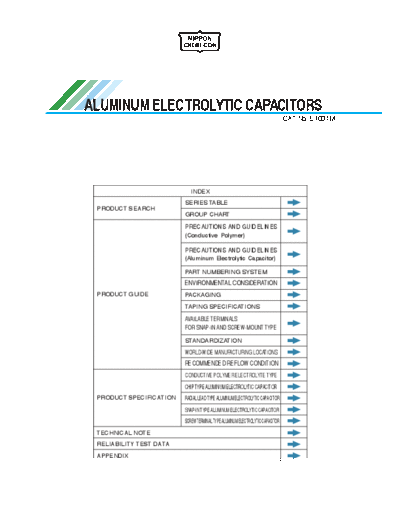

Image preview - the first page of the document
>> Download all_electrolytic_capacitors_catalogue_09_2012 documenatation <<
Text preview - extract from the document
SERIES TABLE
ALUMINUM ELECTROLYTIC CAPACITORS
CAT. No. E1001M
INDEX
SERIES TABLE
PRODUCT SEARCH
GROUP CHART
PRECAUTIONS AND GUIDELINES
(Conductive Polymer)
PRECAUTIONS AND GUIDELINES
(Aluminum Electrolytic Capacitor)
PART NUMBERING SYSTEM
ENVIRONMENTAL CONSIDERATION
PRODUCT GUIDE PACKAGING
TAPING SPECIFICATIONS
AVAILABLE TERMINALS
FOR SNAP-IN AND SCREW-MOUNT TYPE
STANDARDIZATION
WORLD-WIDE MANUFACTURING LOCATIONS
RECOMMENDED REFLOW CONDITION
CONDUCTIVE POLYMER ELECTROLYTE TYPE
CHIP TYPE ALUMINUM ELECTROLYTIC CAPACITOR
PRODUCT SPECIFICATION RADIAL LEAD TYPE ALUMINUM ELECTROLYTIC CAPACITOR
SNAP-IN TYPE ALUMINUM ELECTROLYTIC CAPACITOR
SCREW TERMINAL TYPE ALUMINUM ELECTROLYTIC CAPACITOR
TECHNICAL NOTE
RELIABILITY TEST DATA
APPENDIX
SERIES TABLE
CAPACITOR SERIES TABLE, CONTENTS
Solvent resistant
Low impedance
Standard Type
Rated
Capacitance
Endurance Terminal voltage
Series Features range range
(+R=With ripple) type
(Vdc) (F)
PXG NEW! Super low ESR, high ripple current, downsized 105 1,000 to 2,000 hours SMD 16 to 25 10 to 180
PXK Super low ESR, high ripple current, downsized 105 1,000 to 2,000 hours SMD 2.5 to 16 100 to 560
PXS Long life, super low ESR, high ripple current 105 5,000 hours SMD 4 to 16 22 to 560
Conductive Polymer Electrolyte Type
Surface PXF Upgrade! Super low ESR, high ripple current 105 1,000 to 2,000 hours SMD 2 to 10 120 to 1,000
Mount
Type PXE Super low ESR, high ripple current 105 2,000 hours SMD 2.5 to 16 33 to 2,700
PXA Super low ESR, high ripple current 105 1,000 to 2,000 hours SMD 2.5 to 25 3.3 to 1,500
PXD NEW! 125 , super low ESR, high ripple current 125 2,000 hours SMD 2.5 to 10 47 to 470
PXH 125 , super low ESR, high ripple current 125 1,000 hours SMD 2.5 to 20 22 to 1,000
PSG Upgrade! Long life, super low ESR, high ripple current 105 2,000 to 5,000 hours Radial 16 to 25 56 to 1,000
PSK Upgrade! Long life, super low ESR, high ripple current 105 5,000 hours Radial 2.5 to 6.3 220 to 560
PSF Upgrade! Long life, super low ESR, high ripple current 105 5,000 hours Radial 2 to 16 100 to 1,600
Radial Lead
PSE Long life, super low ESR, high ripple current 105 5,000 hours Radial 2.5 to 6.3 470 to 820
Type
PSC Super low ESR, high ripple current 105 2,000 hours Radial 2.5 to 16 270 to 2,700
PSA Super low ESR, high ripple current 105 2,000 hours Radial 2.5 to 16 47 to 1,500
PS Super low ESR, high ripple current 105 2,000 hours Radial 2.5 to 35 18 to 1,500
General MVA 85 ,standard 85 2,000 hours SMD 4 to 450 1.0 to 10,000
Purpose MVE 105 , standard 105 1,000 to 2,000 hours SMD 6.3 to 450 1.0 to 6,800
MZJ Super low ESR 105 2,000 hours SMD 6.3 to 35 10 to 1,800
MZA Super low impedance 105 2,000 hours SMD 6.3 to 80 3.3 to 1,500
MVY Low impedance, standard, Case size 4 to 18mm 105 1,000 to 5,000 hours SMD 6.3 to 100 1.0 to 8,200
Low
MZF 10,000 hours, Long life, low impedance 105 10,000 hours SMD 6.3 to 50 10 to 470
Impedance
Surface Mount Type
MZE 7,000/8,000 hours, Long life, low impedance 105 7,000 to 8,000 hours SMD 6.3 to 50 10 to 470
MZK 5,000 hours, Long life, low impedance 105 5,000 hours SMD 6.3 to 35 10 to 150
MLA 3,000 hours, Long life, low impedance 105 3,000 hours SMD 6.3 to 50 10 to 1,000
MLF 10,000 hours, Long life 105 10,000 hours SMD 6.3 to 50 1.0 to 1,000
MLE 7,000/8,000 hours, Long life 105 7,000 to 8,000 hours SMD 6.3 to 50 1.0 to 1,000
Long Life MLK 5,000 hours, Long life 105 5,000 hours SMD 6.3 to 35 4.7 to 100
MVL 3,000/5,000 hours, Long life 105 3,000 to 5,000 hours SMD 6.3 to 50 1.0 to 1,000
MVJ 2,000 hours, Long life 105 2,000 hours SMD 6.3 to 50 1.0 to 100
MVH 125 , Case size 6.3 to 18mm 125 1,000 to 5,000 hours SMD 10 to 450 3.3 to 4,700
MHB 125 , Specified ESR after endurance 125 2,000 hours SMD 10 to 35 47 to 470
Special MHJ 125 , Specified ESR after endurance 125 2,000 hours SMD 10 to 35 47 to 470
Application MKB Specified ESR at low temperature 105 3,000 hours SMD 400 2.2 to 4.7
MV-BP Bi-polar 85 2,000 hours SMD 6.3 to 50 1.0 to 47
MVK-BP Bi-polar 105 1,000 hours SMD 6.3 to 50 1.0 to 47
SRM 5mm height, downsized 85 1,000 hours Radial 4 to 50 1.0 to 330
SRE 85 , 5mm height, standard 85 1,000 hours Radial 4 to 50 1.0 to 100
KRE 105 , 5mm height, standard 105 1,000 hours Radial 6.3 to 50 1.0 to 100
Low Profile SRA 85 , 7mm height, standard 85 1,000 hours Radial 4 to 63 1.0 to 470
KMA 105 , 7mm height, standard 105 1,000 hours Radial 4 to 63 1.0 to 220
SRG 4 7 to 18 25mm, low profile 85 1,000 to 2,000 hours Radial 4 to 50 1.0 to 10,000
KRG 4 7 to 18 25mm, low profile 105 1,000 hours Radial 6.3 to 50 1.0 to 10,000
SMQ 85 , Downsized 85 2,000 hours Radial 6.3 to 450 1.0 to 47,000
Radial Lead Type
KMQ 105 , Downsized 105 1,000 to 2,000 hours +R Radial 6.3 to 450 1.0 to 47,000
General SMG 85 , standard 85 2,000 hours Radial 6.3 to 450 1.0 to 39,000
Purpose KMG 105 , standard 105 1,000 to 2,000 hours +R Radial 6.3 to 450 1.0 to 22,000
SME-BP Bi-polar, downsized 85 2,000 hours Radial 6.3 to 100 1.0 to 6,800
KME-BP Bi-polar, downsized 105 1,000 hours Radial 6.3 to 100 1.0 to 6,800
KZM Long life, super low impedance 105 6,000 to 10,000 hours +R Radial 6.3 to 50 27 to 10,000
KZH Super low impedance, downsized 105 5,000 to 6,000 hours +R Radial 6.3 to 35 47 to 8,200
KZE Low impedance, downsized 105 1,000 to 5,000 hours +R Radial 6.3 to 100 6.8 to 6,800
KYA Upgrade! Low impedance, downsized 105 4,000 to 10,000 hours +R Radial 6.3 to 100 1.0 to 15,000
High
Frequency KY Low impedance, standard 105 4,000 to 10,000 hours +R Radial 6.3 to 100 1.0 to 18,000
Use LZA NEW! Low impedance, downsized 105 4,000 to 5,000 hours +R Radial 6.3 to 35 330 to 6,800
LXZ Low impedance, downsized 105 2,000 to 8,000 hours +R Radial 6.3 to 63 12 to 18,000
LXY Low impedance 105 2,000 to 8,000 hours +R Radial 10 to 63 10 to 8,200
LXV Low impedance 105 2,000 to 5,000 hours +R Radial 6.3 to 100 5.6 to 15,000
: Recommendation products : Some of range are solvent resistant.
Product specifications in this catalog are subject to change without notice.Request our product specifications before purchase and/or use. Please use our products based on the information contained in this catalog and product specifications.
(1/2) CAT. No. E1001M
SERIES TABLE
CAPACITOR SERIES TABLE, CONTENTS
Solvent resistant
Low impedance
Standard Type
Rated
Capacitance
Endurance Terminal voltage
Series Features range range
(+R=With ripple) type
(Vdc) (F)
KXJ Long life, downsized, for input filtering 105 10,000 to 12,000 hours +R Radial 160 to 450 6.8 to 680
KXG Long life, downsized, for input filtering 105 8,000 to 10,000 hours +R Radial 160 to 450 6.8 to 330
For input filtering, 20 20 to 22 50mm
SMH (Ask Engineering Bulletin No808 in detail) 85 2,000 hours +R Radial 160 to 450 33 to 470
For input filtering, 20 20 to 22 50mm
KMH (Ask Engineering Bulletin No810 in detail) 105 2,000 hours +R Radial 160 to 450 33 to 470
KHE NEW! Low profile, for input filtering 105 2,000 hours +R Radial 400 to 450 27 to 120
PAG Low profile, for input filtering 105 2,000 hours +R Radial 200 to 450 18 to 560
KLJ No sparks with DC overvoltage, downsized 105 2,000 hours +R Radial 200 & 400 4.7 to 330
Radial Lead Type
High
Reliability KLG No sparks with DC overvoltage 105 2,000 hours +R Radial 200 & 400 22 to 330
LE NEW! Long life, downsized 105 10,000 hours +R Radial 10 to 100 1.0 to 330
FL Long life, downsized 105 3,000 hours +R Radial 6.3 to 50 1.0 to 270
GPA Upgrade! 125 , low impedance, downsized 125 3,000 to 5,000 hours +R Radial 25 to 100 200 to 6,800
GXE 125 , low impedance, downsized 125 2,000 to 5,000 hours +R Radial 10 to 450 4.7 to 4,700
GXL 125 125 5,000 hours +R Radial 10 to 50 100 to 1,000
GXH 135 135 1,500 / 2,000 hours +R Radial 10 to 50 100 to 4,700
LBG For airbag 105 5,000 hours +R Radial 25 & 35 1,000 to 11,000
KZA For PC motherboard 105 2,000 hours +R Radial 6.3 to 16 470 to 3,300
Special (Ask Engineering Bulletin No809 in detail)
Application LLA Low DC leakage, general 85 1,000 hours Radial 6.3 to 50 1.0 to 15,000
(Ask Engineering Bulletin No575 in detail)
PH For photo flash 55 5,000 times charging Radial 300 & 330 -
SMQ 85 , standard 85 2,000 hours +R Pin 160 to 450 82 to 3,900
KMW NEW! 105 , super downsized 105 2,000 hours +R Pin 400 to 450 120 to 1,000
KMR 105 , downsized 105 2,000 hours +R Pin 160 to 450 100 to 3,300
KMQ 105 , standard 105 2,000 hours +R Pin 35, 50, 160 to 450 68 to 33,000
General SMM 85 , 3,000 hours 85 3,000 hours +R Pin 160 to 450 47 to 3,300
Purpose KMT NEW! 105 , high ripple 105 3,000 hours +R Pin 420 & 450 82 to 680
KMS 105 , downsized 105 3,000 hours +R Pin 160 to 500 47 to 3,300
KMM 105 , 2,000/3,000 hours 105 2,000 to 3,000 hours +R Pin 160 to 450 39 to 3,300
85 , standard
Snap-in Type
SMH (Ask Engineering Bulletin No585 for 160 to 450V) 85 2,000 hours +R Pin 6.3 to 100 820 to 100,000
KMH 105 , standard 105 2,000 hours +R Pin 6.3 to 100 560 to 82,000
(Ask Engineering Bulletin No584 for 160 to 450V)
Low SLM 15mm height, low profile 85 2,000 hours +R Pin 160 to 400 47 to 560
Profile KLM 15mm height, low profile 105 2,000 hours +R Pin 160 to 400 39 to 390
TXH NEW! Long life 105 10,000 hours +R Pin 200 to 450 220 to 1,800
LXM Long life, downsized 105 7,000 hours +R Pin 160 to 450 47 to 2,200
LXS Upgrade! Long life, downsized 105 5,000 hours +R Pin 160 to 500 82 to 3,300
High LXQ Long life, downsized 105 5,000 hours +R Pin 160 to 450 82 to 2,700
Reliability LXG Long life 105 5,000 hours +R Pin 10 to 100 390 to 47,000
CHA No sparks with DC overvoltage, downsized 105 2,000 hours +R Pin 200 to 450 56 to 1,200
LXH No sparks with DC overvoltage 105 3,000/5,000 hours +R Pin 200 & 400 68 to 1,500
KMV For charge and discharge application 105 3,000 hours +R Pin 350 to 450 82 to 1,200
SME 85 , standard 85 2,000 hours +R Screw 10 to 100 2,200 to 680,000
(Ask Engineering Bulletin No548 for 160 to 250V)
General 105 , downsized
KMQ NEW! 105 2,000 hours +R Screw 315 to 450 330 to 10,000
Purpose
KMH 105 , standard 105 2,000 hours +R Screw 10 to 400 180 to 680,000
RWG Long life, high ripple, downsized 85 5,000 hours +R Screw 350 to 450 1,500 to 18,000
RWF Long life, high ripple 85 5,000 hours +R Screw 350 to 450 820 to 22,000
Screw-Mount Type
RWQ High ripple, downsized 85 2,000 hours +R Screw 350 to 550 390 to 15,000
RWE High ripple 85 2,000 hours +R Screw 350 to 550 100 to 12,000
RWY Long life, high ripple, low cost 85 5,000 hours +R Screw 350 to 450 500 to 14,000
For Inverter
RWL Long life, high ripple 85 20,000 hours +R Screw 350 to 450 2,200 to 12,000
FTP Ellips can shape, high ripple 85 5,000 hours +R Screw 63 to 450 270 to 21,000
LXA 105 , long life 105 2,000/5,000 hours +R Screw 10 to 525 330 to 390,000
LXR 105 , long life, high ripple 105 5,000 hours +R Screw 350 to 450 2,200 to 15,000
RWV For charge and discharge application 85 5,000 hours +R Screw 350 to 450 820 to 18,000
: Recommendation products : Some of range are solvent resistant.
Product specifications in this catalog are subject to change without notice.Request our product specifications before purchase and/or use. Please use our products based on the information contained in this catalog and product specifications.
(2/2) CAT. No. E1001M
SERIES TABLE
(1/2) CAT. No. E1001M
SERIES TABLE
(2/2) CAT. No. E1001M
SERIES TABLE
PART NUMBERING SYSTEM
Part numbering system
Our part numbering system is common to all of Nippon Chemi-Con's subsidiaries worldwide, and has
been switching the conventional part numbering system. The part number uses 18-digit codes to express
information of principal product specifications such as product category, series name, rated voltage,
capacitance, case size and RoHS compliance.
Categories
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18
S P T - 0 1 B R 0 5 K M 3 N 0 T 0 0
Code Details
A Conductive Polymer Aluminum Solid Capacitors (Polar)
E Aluminum Electrolytic Capacitors (Polar)
B Aluminum Electrolytic Capacitors (Bi-polar)
K Multilayer Ceramic Capacitors
F,W Film Capacitors
D Electric Double Layer Capacitors
T Metal Oxide Varistors
L Amorphous Choke Coils
* For digits 2 to 18, please see "Product code guide".
Example
Product type Part number (Example) Conventional part number (Ref.)
Surface mount type EMVE160ADA100MD55G MVE16VC10MD55E0
Radial lead type EKMQ6R3ETC102MHB5D TC04RKMQ6. 3VB1000MF50E0
Snap-in type EKMQ201VSN471MP30S KMQ200VSSN470M22BE0
Screw mount terminal type ERWE551LGC821MCD0M RWE550LGSN820MCC13EA
Product specifications in this catalog are subject to change without notice.Request our product specifications before purchase and/or use. Please use our products based on the information contained in this catalog and product specifications.
(1/1) CAT. No. E1001M
SERIES TABLE
ENVIRONMENTAL CONSIDERATION
Environment friendly capacitors
Nippon Chemi-Con always considers the environment in product materials, designs and manufacturing. In fact,
our factories already have received ISO 14000 certificate. Cadmium, Mercury, Hexavalent Chromium, PBB and
PBDE have never been used in our products. Furthermore, lead-containing materials have been eliminated from
all our aluminum electrolytic capacitors including Conductive Polymer Aluminum Solid Capacitors to comply with
RoHS. If you need "Halogen-Free" products, please consult with us.
Lead free and Non-PVC Products
1. Lead wire (Plating)
Category Plating material on lead wires
case code : D46 to JA0 Sn-Bi
Chip
case code : KE0 to MN0 Sn
case dia : 8 Sn-Bi
Radial
case dia : 10 Sn
Snap-in Sn
Screw-Mount Originally lead-free
*Please consult with us when you need "Lead-free parts" other than the above mentioned terminal plating materials.
(Note) Sn : Tin, Bi : Bismuth
2. Sleeve
Category Sleeve material
Chip Sleeveless(Coating case)
8 5L Sleeveless(Coating case)
Radial
except 8 5L PET
Snap-in PET
Screw-Mount PVC(Lead-free)
* Please consult with us when you need "Non-PVC parts" other than the above mentioned outer sleeve materials.
The colors of a PET sleeve are "Black", "Brown", and "Dark blue".
Standard designs of "lead-free" Snap-in type are not equipped with a plastic disc.
Please consult with us when you need nonflammable grade for outer sleeve material.
Identification of friendly parts is given by a supplement code (18th digit) of the part number.
For details, please refer to "Product code guide" for each type.
Regarding compliance for EU REACH Regulation
1) According to the content of REACH handbook (Guidance on requirements for substances in articles which is published
on May 2008), our electronic components are "articles without any intended release". Therefore they are not applicable
for "Registration" for EU REACH Regulation Article 7 (1).
Reference: Electrolytic Condenser Investigation Society
"Study of REACH Regulation in EU about Electrolytic Capacitor" (publicized on 13 March 2008)
2) Nippon Chemi-Con develops the products without substance of very high concern(SVHC).DEHP(CASNo.117-81-7) was
contained as some covering material, Nippon Chemi-Con abolished use of DEHP totally at June, 2011.
Product specifications in this catalog are subject to change without notice.Request our product specifications before purchase and/or use. Please use our products based on the information contained in this catalog and product specifications.
(1/1) CAT. No. E1001M
SERIES TABLE
PACKAGING
TAPING SPECIFICATIONS
SURFACE MOUNT TYPE (TAPING)
CARRIER TAPE [mm]
1.75 0.1
Fig.1 Fig.3
1.75 0.1
4 0.1 1.5 +0
-
0.1
2 0.1 0.6max.
4 0.1 2 0.05 1.5 +0.1
-0
0.6max.
F
W
F
B
W
B
A
A P t
P Feed direction
t
Feed direction
Fig.2 Fig.4
0.1
1.75 0.1
2 0.1
1.5 +0.1
1.75
4 0.1 (If W=12, 2 0.05) 1.5 +0
-
0.1
4 0.1 -0 0.6max.
0.6max.
F
W
F
B
B
S
W
B
A
A t
P t Feeding hole
Feed direction P
Feed direction
0.2 0.05
05
0.
75
0.
Feeding hole
[mm]
Items W A B F P t S
Fig.
Series 0.3 0.2 0.2 0.1 0.1 0.2 0.1
D55 12.0 4.7 4.7 5.5 8.0 5.7 - 1
D60,D61 12.0 4.7 4.7 5.5 8.0 6.3 - 1
D73 12.0 4.6 4.6 5.5 8.0 7.5 - 1
E46 12.0 5.7 5.7 5.5 12.0 4.9 - 2
E55 12.0 5.7 5.7 5.5 12.0 5.7 - 2
E60,E61 12.0 5.7 5.7 5.5 12.0 6.3 - 2
E73 16.0 5.7 5.7 7.5 12.0 7.5 - 2
AlchipTM
MVA/MVE F46 16.0 7.0 7.0 7.5 12.0 4.9 - 2
MZJ/MZA F55 16.0 7.0 7.0 7.5 12.0 5.7 - 2
MVY/MZF F60,F61 16.0 7.0 7.0 7.5 12.0 6.3 - 2
MZE/MZK F73 16.0 7.0 7.0 7.5 12.0 7.5 - 2
MLA/MLF
MLE/MLK F80 16.0 7.0 7.0 7.5 12.0 8.2 - 2
MVL/MVJ F90 16.0 7.0 7.0 7.5 12.0 9.2 - 2
MVH/MHB H63 16.0 8.7 8.7 7.5 12.0 6.8 - 2
MHJ/MKB H70 24.0 8.7 8.7 11.5 12.0 7.3 - 2
MV-BP
H80 24.0 8.7 8.7 11.5 12.0 8.3 - 2
MVK-BP
HA0 24.0 8.7 8.7 11.5 16.0 11.0 - 3
NPCAPTM HC0 24.0 8.7 8.7 11.5 16.0 12.7 - 3
PXG/PXK J80 24.0 10.7 10.7 11.5 16.0 8.3 - 3
PXS/PXF
JA0 24.0 10.7 10.7 11.5 16.0 11.0 - 3
PXE/PXA
PXD/PXH JC0 24.0 10.7 10.7 11.5 16.0 12.8 - 3
KE0 32.0 13.4 13.4 14.2 24.0 14.0 28.4 4
KG5 32.0 13.4 13.4 14.2 24.0 16.5 28.4 4
LH0 44.0 17.5 17.5 20.2 28.0 16.8 40.4 4
LN0 44.0 17.5 17.5 20.2 28.0 22.1 40.4 4
MH0 44.0 19.5 19.5 20.2 32.0 17.1 40.4 4
MN0 44.0 19.5 19.5 20.2 32.0 22.1 40.4 4
Product specifications in this catalog are subject to change without notice.Request our product specifications before purchase and/or use. Please use our products based on the information contained in this catalog and product specifications.
(1/5) CAT. No. E1001M
SERIES TABLE
PACKAGING
REEL DIMENSIONS [mm] QUANTITY PER REEL/BOX
Quantity Quantity W1
Series Size code
(pcs/reel) (pcs/box) (mm)
D55,D60,D61 2,000 10,000 14
D73 1,500 7,500 14
E55,E60,E61 1,000 5,000 14
50min.
AlchipTM E73 1,000 5,000 18
MVA/MVE F55,F60,F61,F73 1,000 5,000 18
MZJ/MZA F80 900 4,500 18
MVY/MZF
MZE/MZK F90 800 4,000 18
13 0.5 H63 1,000 5,000 18
MLA/MLF
MLE/MLK HA0 500 1,500 26
MVL/MVJ JA0 500 1,500 26
MVH/MHB KE0 200 600 34
W1 MHJ/MKB
382max. MV-BP
KG5 150 450 34
MVK-BP LH0 125 250 46
LN0 75 150 46
POLARITY MH0 125 250 46
MN0 75 150 46
AlchipTM -MVA/MVE/MZJ ◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
