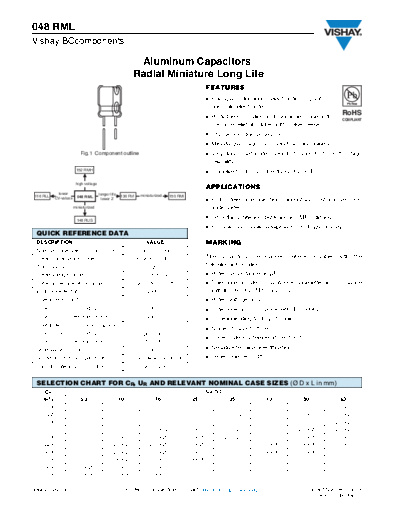

Image preview - the first page of the document



>> Download Vishay [radial thru-hole] 048 RML Series documenatation <<

Text preview - extract from the document

048 RML
Vishay BCcomponents

                                                              Aluminum Capacitors
                                                             Radial Miniature Long Life
                                                                                                  FEATURES
                                                                                                   Polarized aluminum electrolytic capacitors,
                                                                                                   non-solid electrolyte
                                                                                                   Radial leads, cylindrical aluminum case with
                                                                                                                                                         RoHS
                                                                                                                                                         COMPLIANT
                                                                                                   pressure relief, insulated with a blue sleeve
                                                                                                   Charge and discharge proof
                                                                                                   Miniaturized, high CV-product per unit volume
                           Fig.1 Component outline                                                 Very long useful life: 3000 h to 4000 h at 105 C, high
                                                                                                   reliability
                        152 RMH
                                                                                                   Compliant to RoHS Directive 2002/95/EC
                        high voltage
                                                                                                  APPLICATIONS
             lower                     longer life
116 RLL                 048 RML                      136 RVI     miniaturized   150 RMI
           CV-values                     lower Z                                                   EDP, telecommunication, industrial, automotive and
                       miniaturized                                                                audio-video

                        148 RUS
                                                                                                   Smoothing, filtering, buffering in SMPS, timing
                                                                                                   Portable and mobile equipment (small size, low mass)
 QUICK REFERENCE DATA
 DESCRIPTION                                                        VALUE                         MARKING
 Nominal case sizes (
