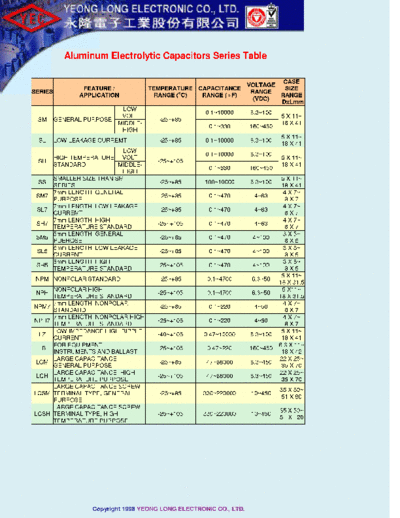

Image preview - the first page of the document
>> Download YEC 1998 Series Table documenatation <<
Text preview - extract from the document
Aluminum Electrolytic Capacitors Series Table
CASE
VOLTAGE
FEATURE / TEMPERATURE CAPACITANCE SIZE
SERIES o RANGE
APPLICATION RANGE ( C) RANGE ( F) RANGE
(VDC)
DxLmm
LOW
0.1~10000 6.3~100
VOLT 5 X 11~
SM GENERAL PURPOSE -25~+85
MIDDLE- 18 X 41
0.1~330 160~450
HIGH
5 X 11~
SL LOW LEAKAGE CURREMT -25~+85 0.1~10000 6.3~100
18 X 41
LOW
0.1~10000 6.3~100
HIGH TEMPERATURE VOLT 5 X 11~
SH -25~+105
STANDARD MIDDLE- 18 X 41
0.1~330 160~450
HIGH
SMALLER SIZE THAN SM 5 X 11~
SS -25~+85 100~10000 6.3~100
SERIES 18 X 41
7mm LENGTH, GENERAL 4 X 7~
SM7 -25~+85 0.1~470 4~63
PURPOSE 8X7
7mm LENGTH, LOW LEAKAGE 4 X 7~
SL7 -25~+85 0.1~470 4~63
CURREMT 8X7
7mm LENGTH, HIGH 4 X 7~
SH7 -25~+105 0.1~470 4~63
TEMPERATURE STANDARD 8X7
5mm LENGTH, GENERAL 3 X 5~
SM5 -25~+85 0.1~470 4~100
PUEROSE 8X5
5mm LENGTH, LOW LEAKAGE 3 X 5~
SL5 -25~+85 0.1~470 4~100
CURRENT 8X5
5mm LENGTH, HIGH 3 X 5~
SH5 -25~+105 0.1~470 4~100
TEMPERATURE STANDARD 8X5
5 X 11~
NPM NONPOLAR STANDARD -25~+85 0.1~4700 6.3~50
18 X 31.5
NONPOLAR HIGH 5 X11~
NPH -25~+105 0.1~4700 6.3~50
TEMPERATURE STANDARD 18 X 31.5
7mm LENGTH, NONPOLAR 4 X 7~
NPM7 -25~+85 0.1~220 4~50
STANDARD 8X7
7mm LENGTH, NONPOLAR HIGH 4 X 7~
NPH7 -25~+105 0.1~220 4~50
TEMPERATURE STANDARD 8X7
LOW IMPEDANCE HIGH RIPPLE 5 X 11~
LZ -40~+105 0.47~10000 6.3~100
CURRENT 18 X 41
FOR EQUIPMENT, 6.3 X 11~
LB -25~+105 0.47~220 160~450
INSTRUMENTS AND BALLAST 18 X 42
LARGE CAPACITANCE, 22 X 25~
LCM -25~+85 47~68000 6.3~450
GENERAL PURPOSE 35 X 70
LARGE CAPACITANCE, HIGH 22 X 25~
LCH -25~+105 47~68000 6.3~450
TEMPERATURE PURPOSE 35 X 70
LARGE CAPACITANCE SCREW
35 X 50~
LCSM TERMINAL TYPE, GENERAL -25~+85 330~220000 10~450
51 X 90
PURPOSE
LARGE CAPACITANCE SCREW
35 X 50~
LCSH TERMINAL TYPE, HIGH -25~+105 330~220000 10~450
51 X 120
TEMPERATURE PURPOSE
Copyright 1998 YEONG LONG ELECTRONIC CO., LTD.
